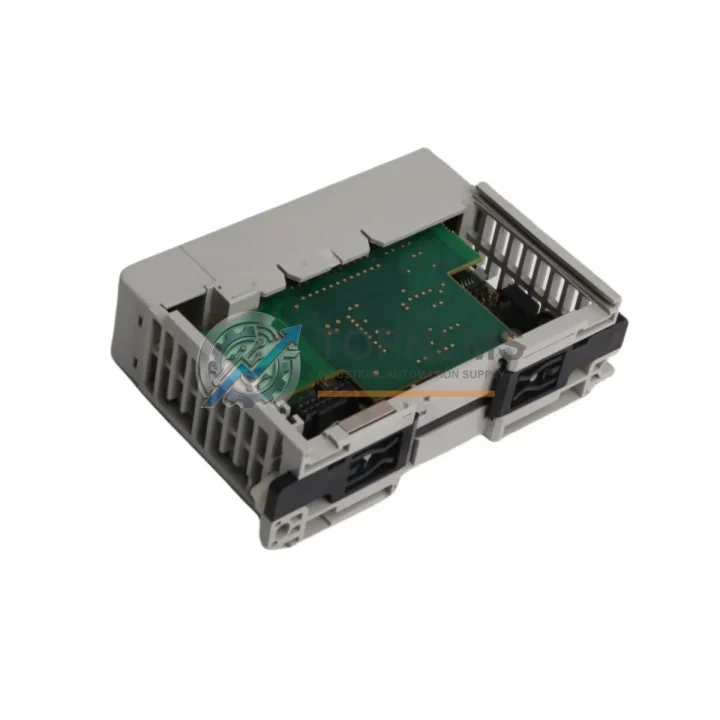

ProSoft MVI69-MNETC Original Industrial Spare MVI69 Compatible

Product Overview

ProSoft MVI69-MNETC Original Industrial Spare MVI69 Compatible: System Stability & Industrial Spare Maintenance Value

The ProSoft MVI69-MNETC is a Modbus TCP/IP Multi-Client communication module engineered for Allen-Bradley CompactLogix 1769 backplane systems. As a genuine original spare part, it delivers the protocol fidelity, electrical compatibility, and long-term reliability that industrial maintenance teams depend on when managing aging automation infrastructure. Whether you are responding to an unplanned shutdown, executing a scheduled overhaul, or building a strategic spare parts inventory, the MVI69-MNETC represents a proven, drop-in replacement that preserves your existing system architecture without requiring re-engineering or firmware migration.

In modern manufacturing and process control environments, communication module failures are among the most disruptive events a maintenance team can face. A failed Modbus TCP/IP gateway can isolate entire production cells, halt data acquisition from field devices, and trigger cascading alarms across SCADA and DCS layers. Stocking the MVI69-MNETC as a certified original spare eliminates the mean-time-to-repair (MTTR) risk associated with sourcing modules on short notice. With pre-tested units available for immediate dispatch, your team can restore communications and resume production within hours rather than days.

Critical Technical Specs Table

Preventive Maintenance Strategy

A communication module failure rarely occurs in isolation. When the MVI69-MNETC is flagged for replacement during a scheduled inspection or emergency shutdown, experienced maintenance engineers use the opportunity to audit the broader control cabinet for components that share the same operational stress profile. Proactive replacement of adjacent modules significantly reduces the probability of a secondary failure within the same maintenance window.

Begin by inspecting the 1769-L32E or 1769-L35E CompactLogix processor for firmware currency and battery health — a degraded processor battery can corrupt configuration data and cause unexpected module resets. Next, verify the 1769-IQ16 digital input module and 1769-OB16 digital output module for contact wear and terminal tightness, as loose I/O wiring is a leading cause of intermittent communication faults that are often misattributed to the gateway module itself.

The Ethernet network infrastructure feeding the MVI69-MNETC deserves equal attention. Inspect the managed industrial Ethernet switch (such as a Stratix 2000 or equivalent DIN-rail switch) for port errors, duplex mismatches, and cable integrity. A degraded Cat5e or Cat6 patch cable between the switch and the module’s RJ-45 port can introduce intermittent TCP session drops that are difficult to diagnose without a network analyzer. Replacing the patch cable as a low-cost preventive measure is always recommended during module servicing.

Within the same 1769 backplane, check the 1769-PA2 or 1769-PB2 power supply module for output voltage stability. An aging power supply delivering marginal 5 VDC rail voltage is a common root cause of communication module instability. If the power supply is more than five years old or shows signs of capacitor bulge or discoloration, schedule it for replacement alongside the MVI69-MNETC. Similarly, inspect the 1769-ECR end cap resistor for secure seating — a loose end cap can disrupt backplane communication across all installed modules.

For facilities running mixed Modbus RTU and TCP/IP architectures, also review the condition of any MVI69-MNET (server-only) modules or MVI69-MCM Modbus serial communication modules installed in adjacent slots. These modules share the same backplane power budget and are subject to the same thermal cycling stresses. Stocking a spare MVI69-MCM alongside the MVI69-MNETC is a cost-effective strategy for facilities that operate legacy serial field devices alongside modern Ethernet-connected instruments.

Finally, document the current module configuration using ProSoft Configuration Builder before initiating any replacement. Export the .pcd configuration file and store it in your plant’s document management system. This ensures that a replacement MVI69-MNETC can be commissioned in minutes rather than hours, with no risk of configuration loss during the swap.

Strategic Replacement Solutions

The MVI69-MNETC was introduced as a purpose-built solution for integrating Modbus TCP/IP field devices — including variable frequency drives, power meters, flow computers, and remote I/O adapters — into CompactLogix-based control systems. As the installed base of these systems matures, the module has become a critical spare for facilities that cannot justify a full PLC platform migration but need to maintain reliable Modbus communications for years to come.

For maintenance teams managing end-of-life or discontinued automation equipment, the MVI69-MNETC offers a direct, configuration-compatible replacement for earlier MVI69 series communication modules. Because it occupies a single 1769 backplane slot and uses the same ProSoft Configuration Builder toolchain, the transition from a failed unit to a commissioned replacement requires no changes to the PLC ladder logic, no modifications to the Studio 5000 project file, and no retraining of operations staff. This plug-and-play compatibility is the single most important factor in reducing unplanned downtime during emergency replacements.

For facilities planning a phased modernization, stocking two MVI69-MNETC units — one installed, one on the shelf — provides a zero-lead-time replacement buffer that eliminates the risk of extended production halts while waiting for spot-market procurement. Given the global supply chain volatility affecting industrial communication modules, maintaining a local spare inventory is now considered best practice by reliability engineers across the process, automotive, and utilities sectors.

All MVI69-MNETC units supplied by TOPNLMS are sourced as original ProSoft Technology products, individually tested for Ethernet connectivity, backplane communication integrity, and Modbus TCP/IP session establishment prior to shipment. Each unit ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Support FAQ

Q1: Is this MVI69-MNETC a genuine original ProSoft Technology module?
Yes. All units are original ProSoft Technology products. Each module undergoes functional testing — including Ethernet port verification, backplane communication check, and Modbus TCP/IP session validation — before dispatch. A 12-month warranty is included with every unit.

Q2: How do I verify compatibility with my existing CompactLogix system before installation?
The MVI69-MNETC is compatible with all 1769 CompactLogix backplane systems, including the 1769-L23, 1769-L32, and 1769-L35 processor families. Confirm your chassis slot availability and 5 VDC backplane current budget. Configuration is performed via ProSoft Configuration Builder (PCB), which is freely available from ProSoft Technology’s website. If you require pre-sales compatibility verification, contact our technical team with your processor catalog number and current backplane load.

Q3: What is the recommended spare parts inventory strategy for the MVI69-MNETC?
For facilities with a single MVI69-MNETC installed, we recommend maintaining one cold spare on-site. For facilities with two or more units installed across multiple control panels, a 1:3 spare ratio (one spare per three installed units) is a widely adopted industry standard. Given typical lead times for specialty communication modules, on-site sparing is significantly more cost-effective than relying on emergency procurement during a production stoppage.

Q4: What is the shipping timeline and how is the module packaged for transit?
In-stock units are dispatched within 1–2 business days. Each module is packaged in anti-static ESD shielding, placed in a rigid foam-lined carton, and shipped via tracked international courier. Export documentation, including commercial invoice and packing list, is provided for all cross-border shipments. Estimated transit times vary by destination; contact us for a precise delivery estimate for your region.
