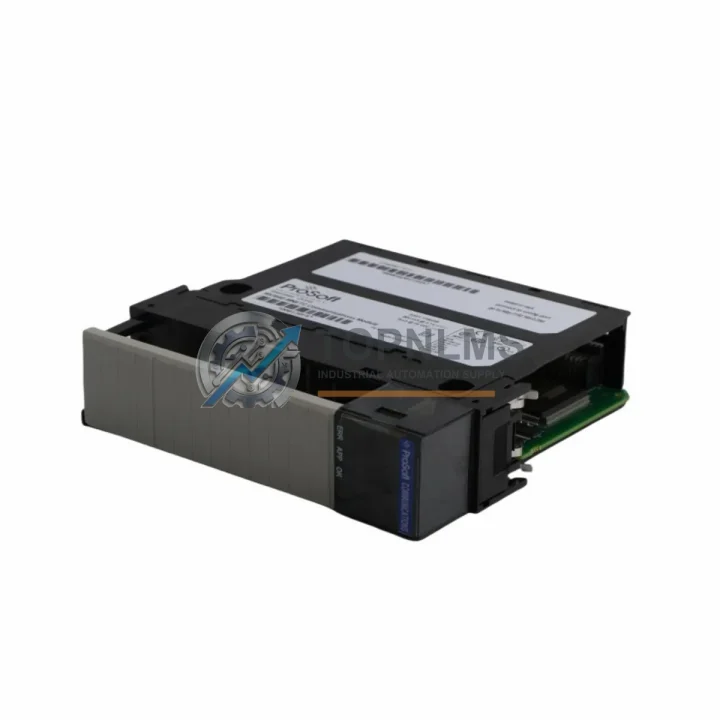

ProSoft MVI56-MNETC Original Industrial Spare MVI56 Compatible

Product Overview

ProSoft MVI56-MNETC Original Industrial Spare MVI56 Compatible: System Stability and Industrial Spare Parts Maintenance Value

In modern manufacturing and process automation environments, communication integrity between PLCs and field devices is the backbone of operational continuity. The ProSoft MVI56-MNETC is an original Modbus TCP/IP Client/Server gateway module engineered for the Allen-Bradley ControlLogix 1756 backplane. As a genuine MVI56 series spare part, it delivers the protocol translation reliability that maintenance engineers depend on during both planned shutdowns and emergency replacements. Sourced directly from authorized supply chains, each unit is tested prior to dispatch and backed by a 12-month warranty, giving procurement teams and plant managers the confidence to stock this module as a critical spare.

Unplanned downtime in industrial facilities is costly — not just in lost production, but in cascading effects on upstream and downstream processes. A failed communication gateway can isolate an entire control cabinet from SCADA supervision, blind operators to process variables, and trigger safety shutdowns. Stocking the MVI56-MNETC as a ready-to-deploy spare eliminates the multi-week lead time risk associated with sourcing legacy communication modules on short notice. Its plug-and-play compatibility with the ControlLogix 1756 chassis means a trained technician can execute a hot-swap replacement within a single maintenance window, restoring full Modbus TCP/IP communication without reprogramming the host PLC.

For facilities running legacy Modbus RTU field devices alongside modern Ethernet-based control infrastructure, the MVI56-MNETC serves as the critical bridge that extends the operational life of existing investments. Rather than undertaking a full system migration — which carries its own risks and capital costs — maintenance teams can preserve the existing field wiring, instrumentation, and HMI configurations while upgrading only the communication layer. This approach is particularly valuable in industries such as oil and gas, water treatment, power generation, and discrete manufacturing, where system stability and regulatory compliance take precedence over wholesale modernization.

Critical Technical Specs

Preventive Maintenance Strategy

A robust preventive maintenance program for any ControlLogix-based control system extends well beyond replacing a single module. When scheduling a maintenance window to inspect or replace the MVI56-MNETC, experienced maintenance engineers treat it as an opportunity to audit the entire communication and power infrastructure within the control cabinet.

Begin with the 1756 chassis and backplane itself — inspect for signs of corrosion, loose module seating, or backplane fault indicators. The 1756-PA75 or 1756-PB75 power supply module should be checked for output voltage stability; a degraded power supply is a common root cause of intermittent communication faults that are often misdiagnosed as gateway failures. While the cabinet is open, verify the condition of the 1756-EN2T or 1756-ENBT Ethernet bridge module, which handles the broader EtherNet/IP network — a failing bridge can mask or amplify Modbus TCP/IP issues originating from the MVI56-MNETC.

On the field side, inspect the Ethernet patch cables and RJ45 connectors running from the MVI56-MNETC to the managed switch or field device. Industrial-grade shielded Cat5e or Cat6 cables should be used in environments with high electromagnetic interference. The managed Ethernet switch serving the Modbus TCP/IP network segment should also be reviewed for port errors, VLAN configuration integrity, and firmware currency.

For facilities where the MVI56-MNETC interfaces with legacy Modbus RTU serial devices via an intermediate converter, inspect the RS-232/RS-485 serial converter or isolator in the signal chain. Signal isolation devices degrade over time in high-noise environments and are a frequent source of intermittent communication errors. Simultaneously, review the 1756-IB16 or 1756-OB16 digital I/O modules in the same chassis — I/O module faults can trigger PLC fault routines that interrupt gateway polling cycles.

Finally, verify the integrity of the terminal blocks and field wiring terminations within the cabinet. Loose terminations on 24 VDC control circuits feeding field transmitters are a leading cause of spurious Modbus read errors. If the system includes a ProSoft MVI56-MCM or MVI56-MNET module in a parallel or redundant communication role, inspect it concurrently to ensure the backup path remains viable. Documenting the firmware version of the MVI56-MNETC and cross-referencing it against the latest ProSoft release notes is also recommended during each scheduled maintenance cycle.

Strategic Replacement Solutions

The MVI56-MNETC directly replaces earlier ProSoft Modbus TCP/IP gateway modules including the MVI56-MNET and select configurations of the MVI56-MCM, allowing maintenance teams to standardize on a single current-production spare part that covers multiple legacy module roles. This consolidation reduces the number of unique SKUs that must be held in the spare parts inventory, simplifying procurement and reducing carrying costs.

For facilities that have delayed system migration due to budget constraints or operational risk, the MVI56-MNETC provides a cost-effective path to extend the service life of existing ControlLogix 1756 installations by five to ten years. Because it occupies a standard single-slot position in the 1756 chassis and is fully configured through ProSoft Configuration Builder without requiring changes to the host PLC program logic, replacement can be executed by a maintenance technician without specialist integration support — reducing both downtime duration and service call costs.

Each unit supplied by TOPNLMS undergoes functional verification testing prior to shipment. Units are dispatched with original packaging where available, and all shipments include tracking. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, providing procurement teams with a documented quality assurance baseline for audit and compliance purposes.

Support FAQ

Q1: Is the MVI56-MNETC a direct drop-in replacement for the MVI56-MNET?
In most ControlLogix 1756 applications, yes. The MVI56-MNETC supports both client and server roles, which is a superset of the MVI56-MNET’s functionality. Configuration is performed through ProSoft Configuration Builder, and the module occupies the same single-slot backplane position. Minor configuration adjustments may be required to match the original polling parameters, but no PLC ladder logic changes are typically necessary.

Q2: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers functional failures and manufacturing defects under normal industrial operating conditions. If a unit fails within the warranty period, contact us at [email protected] with the order reference and a description of the fault. We will arrange for inspection and replacement or repair. Warranty does not cover damage resulting from incorrect installation, overvoltage, or physical impact.

Q3: How is the module tested before shipment?
Each MVI56-MNETC unit undergoes functional verification prior to dispatch, including backplane communication checks and Ethernet port integrity testing. Units that do not pass verification are not shipped. Test records are retained internally and can be referenced in the event of a warranty claim.

Q4: How many units should we stock as critical spares?
For facilities with a single ControlLogix system relying on Modbus TCP/IP communication, a minimum of one spare unit is recommended. For multi-line or multi-cabinet installations where the MVI56-MNETC is deployed in several locations, a ratio of one spare per three installed units is a common industry practice. Given the module’s role as a communication gateway, its failure has an outsized impact on system visibility — erring toward a higher spare ratio is justified for high-criticality processes.
