ProSoft MVI56E-MCM Replacement/Upgrade for ControlLogix

Product Overview

ProSoft MVI56E-MCM Replacement/Upgrade for ControlLogix: Smooth Migration from Legacy Serial Systems

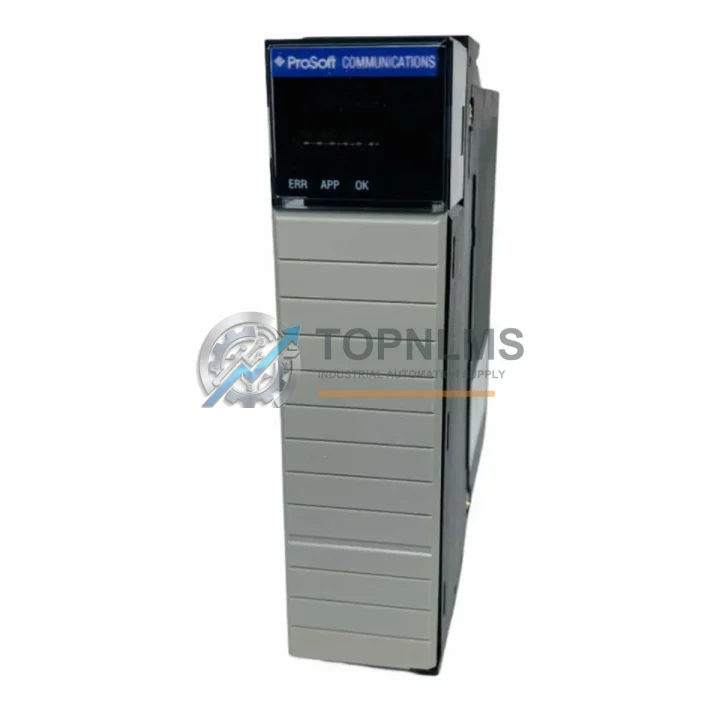

The ProSoft MVI56E-MCM is a multi-protocol serial communication module designed for the Allen-Bradley ControlLogix platform. As industrial facilities phase out aging DH-485, DF1, ASCII, Modbus RTU, and other legacy serial networks, the MVI56E-MCM provides a proven, field-validated upgrade path that preserves existing wiring infrastructure, minimizes programming rework, and dramatically reduces planned and unplanned downtime during the transition.

Whether you are retiring a legacy SLC 500 serial link, decommissioning an older MVI56-MCM (non-E series) module, or consolidating multiple point-to-point serial devices into a single ControlLogix rack slot, the MVI56E-MCM delivers the protocol flexibility and diagnostic depth that modern industrial operations demand. Its onboard web server and enhanced diagnostics make commissioning and troubleshooting significantly faster than first-generation MVI56 modules, reducing field engineering hours on every retrofit project.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful MVI56E-MCM migration rarely involves a single module swap. In practice, the upgrade touches several adjacent components within the same ControlLogix chassis and control cabinet. During the retrofit, engineers commonly revisit the 1756-L7x or 1756-L8x ControlLogix controller firmware to ensure compatibility with the E-series module’s enhanced backplane messaging. The 1756-EN2T EtherNet/IP communication module is frequently updated in parallel to support remote diagnostics via the MVI56E-MCM’s web server interface.

On the field-device side, existing RS-485 multi-drop wiring to Modbus RTU instruments — such as flow meters, variable frequency drives, and remote I/O panels — is typically retained without modification, since the MVI56E-MCM preserves the same DB9 serial connector pinout as its predecessor. Where signal integrity is a concern over long cable runs, a signal isolator or RS-485 repeater is inserted at the panel boundary to protect the new module from ground loops and transient voltages common in motor control centers.

Projects that also involve I/O expansion often add 1756-IB16 digital input modules or 1756-OF8 analog output modules to the same chassis, taking advantage of the freed engineering time during the serial migration window. For sites upgrading from standalone SLC 500 systems, the 1747-L553 SLC 5/05 controller is commonly decommissioned in the same outage, with its DF1 serial link to the SCADA host re-terminated on the MVI56E-MCM’s Port 0.

Panel builders handling the physical retrofit also address the 1756-PA72 power supply load budget, confirming that the existing supply can support the additional backplane current draw of the E-series module alongside any new I/O cards. In high-density cabinets, a 1756-A17 17-slot chassis may replace a smaller rack to accommodate the expanded module count without requiring a second enclosure.

Finally, commissioning engineers rely on a ProSoft Configuration Builder (PCB) programming cable — typically a USB-to-serial adapter with the appropriate driver — to upload the initial configuration file to the MVI56E-MCM before the module is inserted into the live rack, ensuring zero-impact cutover during the maintenance window.

Retrofit Guidance FAQ

Q: Can I reuse my existing serial wiring from the MVI56-MCM?
A: Yes. The MVI56E-MCM uses the same DB9 RS-232/422/485 connector pinout as the original MVI56-MCM. No rewiring is required for standard installations. Verify shield grounding at the panel entry point as a best practice.

Q: Do I need to rewrite my ControlLogix ladder logic?
A: Minimal changes are required. The E-series module uses the same data file mapping structure as the non-E series. Most projects require only a module definition update in RSLogix 5000 / Studio 5000 and a re-download of the configuration file via ProSoft Configuration Builder.

Q: Is the MVI56E-MCM compatible with all ControlLogix firmware versions?
A: The module is compatible with ControlLogix controllers running firmware v16 and above. For controllers running older firmware, a firmware upgrade is recommended prior to installation. Consult the ProSoft MVI56E-MCM User Manual (Document MVI56E-MCM-UM001) for the full compatibility matrix.

Q: How much physical space does the module require?
A: The MVI56E-MCM occupies a single 1756 rack slot — identical to the module it replaces. No additional chassis space or mounting hardware is needed.

Q: What communication protocols are supported for SCADA integration?
A: The module supports Modbus RTU, Modbus ASCII, DF1 Full-Duplex, DF1 Half-Duplex, DH-485, ASCII, and several additional protocols depending on firmware version. This makes it suitable for integration with most SCADA and DCS platforms via serial gateway configurations.

Q: Can the module be configured without taking the PLC offline?
A: Configuration changes can be staged offline using ProSoft Configuration Builder and downloaded to the module via the USB port without interrupting backplane communication, subject to the specific protocol and data mapping in use.

Warranty Assurance

Every ProSoft MVI56E-MCM unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes a functional verification check including backplane communication testing, serial port loopback verification, and firmware version confirmation. Units are packed in anti-static ESD-safe packaging with foam cushioning to prevent transit damage.

In the event of a confirmed hardware defect within the warranty period, TOPNLMS provides a direct replacement unit dispatched within 2 business days of fault confirmation, minimizing production impact. Our technical support team is available to assist with installation verification, configuration file review, and commissioning guidance via email at [email protected] or by phone at +86 18359293191.

For procurement teams requiring documentation, we provide a commercial invoice, packing list, and certificate of conformity with every shipment. Lead times for in-stock units are typically 3–7 business days to major industrial hubs in China, Southeast Asia, and the Middle East. Express shipping options are available for emergency breakdown situations.

TOPNLMS maintains a dedicated inventory of ProSoft MVI56E-series modules to support ongoing maintenance contracts and emergency spare requirements. Contact us to discuss volume pricing, consignment stock arrangements, or approved vendor registration for your facility’s procurement system.
