ProSoft MVI46-GSC Original Industrial Spare MVI46 Compatible

Product Overview

ProSoft MVI46-GSC Original Industrial Spare MVI46 Compatible: System Stability & Industrial Spare Parts Maintenance Value

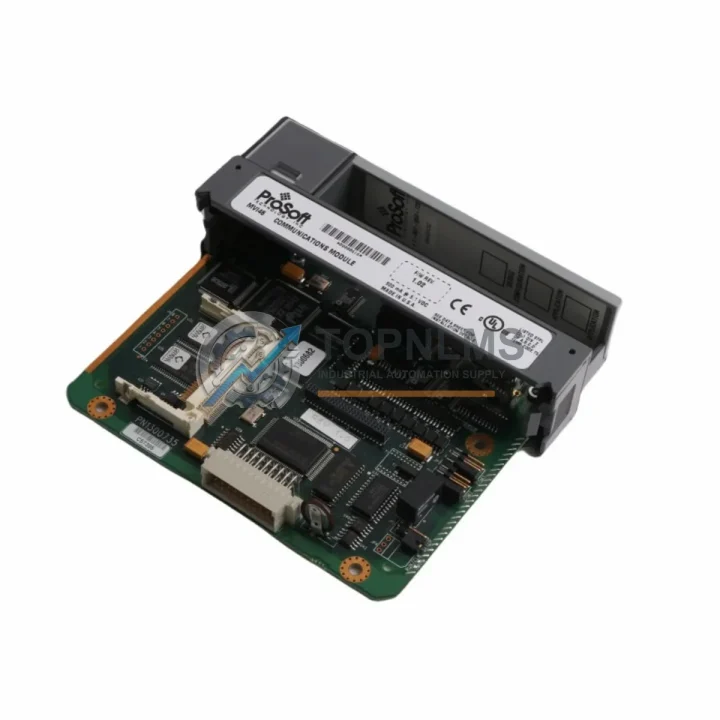

The ProSoft MVI46-GSC is a Generic Serial Communication Module engineered for Allen-Bradley SLC 500 rack-based control systems. As a critical interface component in legacy and active industrial automation environments, the MVI46-GSC enables reliable serial data exchange between PLCs and field devices — including barcode readers, weigh scales, drives, and third-party controllers — using configurable RS-232/RS-422/RS-485 protocols. Maintaining an original spare of this module is not merely a procurement decision; it is a cornerstone of any serious industrial maintenance strategy.

In manufacturing plants, process facilities, and utility operations where SLC 500 racks remain the backbone of control architecture, an unplanned MVI46-GSC failure can cascade into full line shutdowns. Sourcing a verified original replacement in advance — rather than scrambling during a breakdown — is the difference between a two-hour swap and a two-day outage. TOPNLMS supplies factory-original ProSoft MVI46-GSC modules, fully tested prior to dispatch, with a 12-month warranty and worldwide shipping capability.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled maintenance program for SLC 500-based control systems must extend well beyond the MVI46-GSC itself. During any planned shutdown or inspection cycle involving this serial communication module, maintenance engineers should treat the surrounding control cabinet as a system — not a collection of isolated components.

Begin with the SLC 500 processor module (such as the 1747-L553 or 1747-L543): verify firmware revision, battery status, and memory integrity. A degraded processor can cause erratic communication behavior that is often misdiagnosed as a module fault. Alongside the processor, inspect the SLC 500 power supply module (e.g., 1746-P4 or 1746-P7) — voltage ripple and output degradation are leading causes of intermittent module resets and serial port errors.

The MVI46-GSC communicates with field devices through its serial ports, so the serial communication cables and connectors (DB9, terminal block wiring) should be inspected for insulation wear, pin corrosion, and secure termination. In high-vibration environments, loose connectors are a frequent root cause of communication dropouts. If the installation uses RS-485 multi-drop wiring, verify that termination resistors are correctly installed at both ends of the bus.

For systems where the MVI46-GSC interfaces with drives or motion controllers, cross-check the health of the 1746-series digital I/O modules (such as 1746-IB16 or 1746-OB16) that handle discrete interlocks and status signals. These modules share the backplane with the MVI46-GSC and their failure can disrupt overall system coordination. Similarly, inspect any 1746-series analog I/O modules if process variables are being monitored alongside serial data.

If the SLC 500 rack communicates upstream to a supervisory system or SCADA via DH+ or Ethernet, the 1747-SN Remote I/O Scanner or 1761-NET-ENI Ethernet interface should be included in the inspection checklist. Network communication faults at this layer can mask or amplify serial-level issues originating at the MVI46-GSC. For facilities running ProSoft’s broader MVI46 series, it is also prudent to maintain a spare MVI46-MCM (Modbus Communication Module) if Modbus RTU/ASCII devices are present in the same cabinet — the two modules share the same form factor and rack interface, simplifying cross-training for maintenance staff.

Finally, review the condition of the SLC 500 rack chassis (1746-A4, 1746-A7, or 1746-A13) itself: inspect backplane connectors for oxidation, check that all modules are fully seated, and verify that rack grounding is intact. A poorly grounded rack is a persistent source of communication noise that no software configuration can fully compensate for.

Strategic Replacement Solutions

The MVI46-GSC was designed to replace or supplement the limited native serial capabilities of the SLC 500 processor. Many facilities originally installed this module to interface with legacy field devices — printers, barcode scanners, weigh terminals, or third-party PLCs — that predate modern fieldbus standards. As these systems age, the risk of module failure increases, but the cost of migrating the entire control architecture to a newer platform often cannot be justified in the short term.

Stocking an original ProSoft MVI46-GSC spare directly addresses this risk. When a module fails in production, a pre-tested replacement can be installed and configured within hours using the existing ProSoft Configuration Builder project file — no re-engineering, no system redesign, no extended downtime. The MVI46-GSC’s slot-compatible form factor means it drops directly into any available SLC 500 I/O slot, and its configuration is stored in the module’s onboard memory, simplifying the swap process even for technicians who are not deeply familiar with the original installation.

For facilities managing multiple SLC 500 racks across a plant floor, a centralized spare parts strategy — holding one MVI46-GSC per two to three racks — provides a statistically sound buffer against unplanned failures without excessive inventory carrying costs. TOPNLMS supports bulk procurement inquiries and can provide documentation packages (datasheet, configuration guide, test report) with each unit to support your maintenance records and ISO compliance requirements.

Each MVI46-GSC shipped by TOPNLMS undergoes functional verification prior to dispatch, including backplane communication testing and serial port continuity checks. Units are packaged in anti-static ESD-safe materials and shipped with full traceability documentation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.

Support FAQ

Q1: Is this MVI46-GSC a genuine original ProSoft Technology module?
Yes. TOPNLMS supplies factory-original ProSoft MVI46-GSC modules sourced through authorized industrial distribution channels. Each unit is accompanied by traceability documentation and has been functionally tested prior to shipment. We do not supply refurbished, counterfeit, or grey-market components.

Q2: What is the warranty coverage and what does it include?
All MVI46-GSC units sold by TOPNLMS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or physical mishandling. Warranty claims are processed with a replacement-first policy to minimize your downtime.

Q3: How do I verify compatibility with my existing SLC 500 system before installation?
The MVI46-GSC is compatible with all SLC 500 rack chassis (1746-A4, 1746-A7, 1746-A10, 1746-A13) and all SLC 500 processor models (1747-L20, L30, L40, L511, L514, L524, L531, L532, L541, L542, L543, L551, L552, L553). Configuration is performed via ProSoft Configuration Builder (PCB), which is freely available from ProSoft Technology. If you require pre-sales compatibility verification for a specific installation, contact our technical team at [email protected] with your rack model and processor firmware version.

Q4: Can I order multiple units for a plant-wide spare parts inventory program?
Yes. TOPNLMS supports bulk and blanket purchase orders for industrial spare parts programs. Volume pricing is available for orders of two or more units. We can also provide a consolidated documentation package — including datasheets, test reports, and configuration guides — to support your maintenance management system (CMMS) records. Contact us at [email protected] or +86 18359293191 to discuss your inventory requirements.
