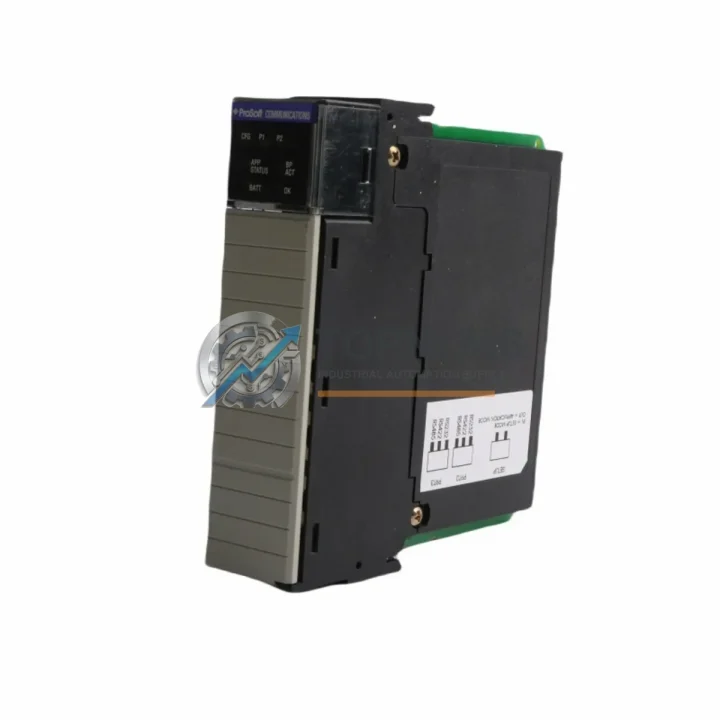

ProSoft MVI56-MDA4 Replacement for ControlLogix Series

Product Overview

ProSoft MVI56-MDA4 Replacement for ControlLogix Series: Seamless Migration & Upgrade Solution

The ProSoft MVI56-MDA4 is a ControlLogix-platform communication gateway module designed to interface Allen-Bradley ControlLogix PLCs with CM4 Series gas analyzers and process instruments using the Modbus RTU/ASCII protocol. For facilities running legacy CM4 analyzer networks integrated into Rockwell Automation ControlLogix chassis, the MVI56-MDA4 represents the most direct, lowest-risk upgrade path — preserving existing wiring infrastructure, ladder logic structure, and field instrument configurations while delivering a fully supported, in-production replacement module.

Whether your original MVI56-MDA4 has reached end-of-service life, suffered a hardware fault, or your procurement team is building a strategic spare-parts inventory, TOPNLMS maintains verified stock of this module with full pre-shipment functional testing and a 12-month warranty. Our technical team supports migration planning from initial compatibility assessment through post-installation commissioning.

Compatibility Comparison Table

Seamless Upgrade Solutions: Migration-Ready Components for ControlLogix CM4 Systems

A successful MVI56-MDA4 replacement rarely happens in isolation. In most ControlLogix-based gas analyzer systems, the migration process touches several interconnected components. Understanding the full system architecture helps procurement teams and site engineers plan a complete, low-downtime upgrade rather than a reactive single-module swap.

The MVI56-MDA4 sits in a 1756 ControlLogix chassis — typically a 1756-A7, 1756-A13, or 1756-A17 rack — alongside the primary controller such as a 1756-L71 or 1756-L73 Logix5000 processor. When replacing the MVI56-MDA4, engineers should verify that the chassis backplane and power supply module — commonly a 1756-PA72 or 1756-PB72 — are in serviceable condition, as a degraded power supply can cause intermittent communication faults that are easily misattributed to the gateway module itself.

On the field side, the MVI56-MDA4’s RS-485 ports connect to CM4 Series gas analyzers via shielded twisted-pair cabling terminated at 1756-TBCH or equivalent terminal blocks. In installations where the original wiring used DB9-to-terminal adapters, these adapters can be reused directly with the replacement module — no re-termination is required. For sites that have expanded their analyzer network since the original installation, the four independent serial ports on the MVI56-MDA4 support up to 247 Modbus slave devices per port, providing significant headroom for future instrument additions without requiring an additional gateway.

Many ControlLogix systems running CM4 analyzer interfaces also include 1756-EN2T or 1756-EN2TR EtherNet/IP communication modules for supervisory SCADA connectivity. These modules are unaffected by the MVI56-MDA4 replacement and continue to operate normally during and after the module swap. Similarly, any 1756-IB16 or 1756-OB16E digital I/O modules in the same chassis remain fully operational throughout the replacement procedure.

For sites where the ControlLogix system also interfaces with variable frequency drives or motor control centers via DeviceNet or ControlNet, a 1756-DNB DeviceNet Bridge or 1756-CNB ControlNet Bridge module may be present in the same chassis. These modules operate independently of the MVI56-MDA4 and do not require reconfiguration during the gateway replacement. However, if the site is simultaneously planning a broader network modernization — migrating from ControlNet to EtherNet/IP, for example — the MVI56-MDA4 replacement is a natural checkpoint to audit all communication modules in the chassis.

In systems where the CM4 analyzer data feeds into an operator interface, the PanelView Plus 7 HMI or a SCADA workstation running FactoryTalk View SE typically reads analyzer tag data from the ControlLogix controller’s tag database via EtherNet/IP. Because the MVI56-MDA4 maps CM4 data directly into the controller’s data table using standard Logix5000 tags, the HMI display and historian configurations require no modification after the module replacement — the tag names and data structures remain identical.

For sites managing a broader spare-parts strategy, it is common to stock the MVI56-MDA4 alongside related ProSoft modules such as the MVI56-MCM (Modbus master/slave for general-purpose applications) and the MVI56E-MNET (Modbus TCP/IP to ControlLogix gateway) to cover both serial and Ethernet Modbus migration scenarios within the same facility. This approach reduces emergency procurement lead times and ensures that a single spare-parts order can address multiple potential failure points across the control system.

Retrofit Guidance FAQ

Q: Do I need to rewire the field terminals when replacing the MVI56-MDA4?
No. The MVI56-MDA4 uses standard DB9 serial connectors for all four ports. If your existing installation uses DB9 cables or DB9-to-terminal adapters, these connect directly to the replacement module without modification. RS-485 multi-drop wiring to CM4 analyzers is fully preserved.

Q: Will my existing ladder logic and AOI blocks work with the replacement module?
Yes. The MVI56-MDA4 uses the same backplane data structure and ProSoft Configuration Builder project format across all production revisions. Existing MSG instructions, Add-On Instructions (AOIs), and controller tag mappings remain valid. In most cases, the replacement module can be inserted and the existing program downloaded without any logic modifications.

Q: Is the Modbus RTU configuration preserved after module replacement?
Yes. The Modbus port configuration (baud rate, parity, stop bits, slave address map) is stored in the ProSoft Configuration Builder project file, which resides on the engineering workstation. After inserting the replacement module, simply download the existing PCB configuration to the new module via the RS-232 CFG port or via the ControlLogix backplane — no reconfiguration from scratch is required.

Q: Does the replacement module fit in the same chassis slot?
Yes. The MVI56-MDA4 is a standard single-slot 1756 ControlLogix module. It occupies exactly one slot in any 1756-series chassis (5, 7, 10, 13, or 17-slot). No chassis modification, slot adapter, or additional hardware is required.

Q: What is the typical installation and commissioning time for a module swap?
For a prepared site with the PCB configuration file available, a trained controls engineer can complete the physical swap, configuration download, and initial communications verification in under 60 minutes. Full CM4 analyzer data validation across all Modbus slave devices typically requires an additional 1–2 hours depending on the number of instruments on the network.

Q: Can the MVI56-MDA4 support both RS-232 and RS-485 simultaneously?
Yes. Each of the four serial ports can be independently configured as RS-232 or RS-485 (2-wire or 4-wire). This allows a single module to simultaneously serve RS-232 point-to-point instruments and RS-485 multi-drop analyzer networks within the same installation.

Warranty Assurance

Every MVI56-MDA4 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a functional verification procedure that includes backplane communication testing, serial port loopback testing, and firmware revision confirmation. Units that do not pass all test criteria are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is one business day for initial assessment and three business days for replacement dispatch. We maintain buffer stock of the MVI56-MDA4 specifically to support warranty replacements without extended lead times.

For procurement teams requiring documentation, we provide a test report and packing list with each shipment. Expedited shipping options are available for emergency replacement scenarios where minimizing control system downtime is the primary constraint. Contact our technical sales team to discuss your specific timeline and logistics requirements.

Stock is maintained in Xiamen, China, with standard international shipping via DHL, FedEx, or UPS. Typical transit times are 3–7 business days to most destinations. For large-volume orders or blanket purchase agreements, please contact us directly to discuss pricing, lead times, and consignment stock arrangements.
