ProSoft MVI56-GEC Replacement for ControlLogix Series

Product Overview

ProSoft MVI56-GEC Replacement for ControlLogix Series: Seamless Migration & Upgrade Solution

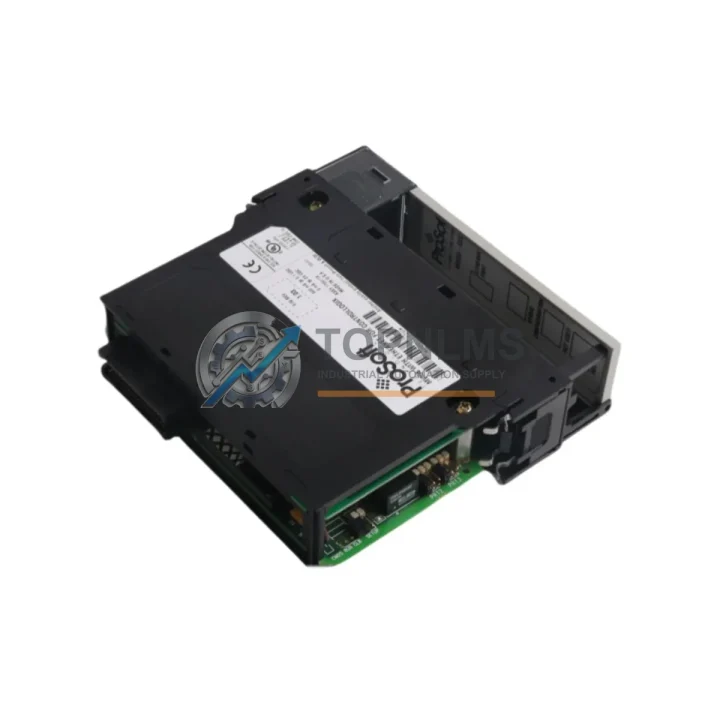

The ProSoft Technology MVI56-GEC is a ControlLogix-platform Ethernet/IP gateway module designed to bridge legacy communication networks with modern Ethernet-based control architectures. For facilities running aging Allen-Bradley ControlLogix 1756 chassis systems — or those managing end-of-life ProSoft MVI56-series communication cards — the MVI56-GEC provides a direct, low-disruption upgrade path that preserves existing rack infrastructure, ladder logic structure, and field wiring investments.

Industrial plants operating legacy serial-based or proprietary protocol networks frequently face the challenge of integrating older field devices with newer Ethernet/IP-capable controllers. The MVI56-GEC addresses this by acting as a protocol converter and gateway within the standard 1756 ControlLogix backplane, eliminating the need for external conversion hardware, additional panel space, or complex re-wiring of field instrumentation. The module occupies a single slot in any 1756 series rack — including the 1756-A4, 1756-A7, 1756-A10, and 1756-A13 — and communicates directly with the ControlLogix processor via the backplane, making it fully transparent to the control program from a data-exchange perspective.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy serial-communication architecture to an Ethernet/IP-based system using the MVI56-GEC typically involves coordinating several interconnected components within the same ControlLogix chassis and control cabinet. The 1756-L71 or 1756-L73 ControlLogix processor serves as the host controller, communicating with the MVI56-GEC over the backplane using standard MSG instructions — no additional inter-module cabling is required. If the existing chassis is a 1756-A7 or 1756-A10, it can be retained without modification, preserving the physical layout of the control panel.

For plants that previously relied on the MVI56-MCM (Modbus serial master/slave) or MVI56-MNET (Modbus TCP/IP) modules, the transition to the MVI56-GEC involves updating the ProSoft Configuration Builder project file to reflect the new Ethernet/IP target device addresses and adjusting the MSG instruction parameters in Studio 5000 Logix Designer. The underlying data table structure — including the input and output data arrays mapped to the module — can often be preserved with minor index adjustments, significantly reducing re-commissioning time.

On the power distribution side, the 1756-PA72 or 1756-PB72 power supply modules continue to serve the chassis without modification, as the MVI56-GEC draws power exclusively from the 1756 backplane. For installations where the control cabinet also houses 1756-IB16 or 1756-OB16 digital I/O modules, these remain completely unaffected by the gateway module swap, and field wiring to terminal blocks does not need to be disturbed.

Where the legacy system included a 1756-ENBT or 1756-EN2T EtherNet/IP bridge module for upstream SCADA or DCS connectivity, the MVI56-GEC can coexist in the same rack, operating as a dedicated gateway for field-device Ethernet/IP communication while the bridge module handles supervisory network traffic. This dual-module architecture is common in brownfield upgrades where the plant historian or DCS — such as a Honeywell Experion or Emerson DeltaV system — must continue receiving data without interruption during the migration.

For facilities that require HMI integration during or after the upgrade, a PanelView Plus 7 terminal connected via Ethernet/IP to the ControlLogix processor will automatically reflect any tag changes made during the MVI56-GEC commissioning, provided tag names in the Studio 5000 project are preserved. Signal isolators or terminal multiplier modules installed between field transmitters and the I/O rack also remain undisturbed, as the gateway module change does not affect analog or digital I/O signal paths.

Retrofit Guidance FAQ

Q: Can the MVI56-GEC physically replace an existing MVI56-series module in the same rack slot?
Yes. The MVI56-GEC uses the standard 1756 module form factor and backplane connector. It installs in any slot of a 1756-series rack. No mechanical modification to the chassis or cabinet is required.

Q: Will existing ladder logic need to be rewritten?
Not entirely. The core data table structure used by MVI56-series modules is preserved. You will need to update MSG instruction parameters in Studio 5000 to reflect the new Ethernet/IP target addresses and adjust any protocol-specific configuration blocks. ProSoft Configuration Builder (PCB) is used for module-side configuration and is the same tool used for previous MVI56 variants.

Q: What communication protocols does the MVI56-GEC support on the Ethernet side?
The MVI56-GEC supports Ethernet/IP as both a client and server, as well as standard TCP/IP socket communication. This makes it compatible with a wide range of Ethernet-capable field devices, drives, and remote I/O adapters from multiple manufacturers.

Q: Does the module require an external power supply?
No. The MVI56-GEC is powered entirely through the 1756 backplane. The existing 1756-PA72 or 1756-PB72 chassis power supply is sufficient, provided the overall chassis power budget is within specification.

Q: How much panel space does the upgrade require?
The MVI56-GEC occupies exactly one slot in the 1756 rack — identical to the module it replaces. No additional DIN rail space, external enclosures, or panel cutouts are needed. The only external connection is a standard RJ-45 Ethernet cable to the plant network switch.

Q: Is the module compatible with both 1756-A4 and larger chassis?
Yes. The MVI56-GEC is compatible with all standard 1756-series chassis, including the 1756-A4, 1756-A7, 1756-A10, and 1756-A13. Slot position within the rack is flexible and does not affect module operation.

Warranty Assurance

Every MVI56-GEC unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes a pre-shipment functional test to verify backplane communication, Ethernet port integrity, and firmware version consistency. Units that do not pass inspection are not dispatched.

In the event of a confirmed hardware defect within the warranty period, TOPNLMS provides a replacement unit or full refund, subject to return inspection. Our technical support team is available to assist with installation verification, configuration questions, and compatibility confirmation before and after purchase.

We maintain in-stock inventory of the MVI56-GEC and related MVI56-series modules to support urgent replacement requirements. Orders confirmed before the daily cut-off are processed for same-day or next-business-day dispatch from our Xiamen warehouse, with international express shipping options available to minimize plant downtime.

For procurement inquiries, bulk pricing, or technical pre-sales consultation, contact our team directly.
