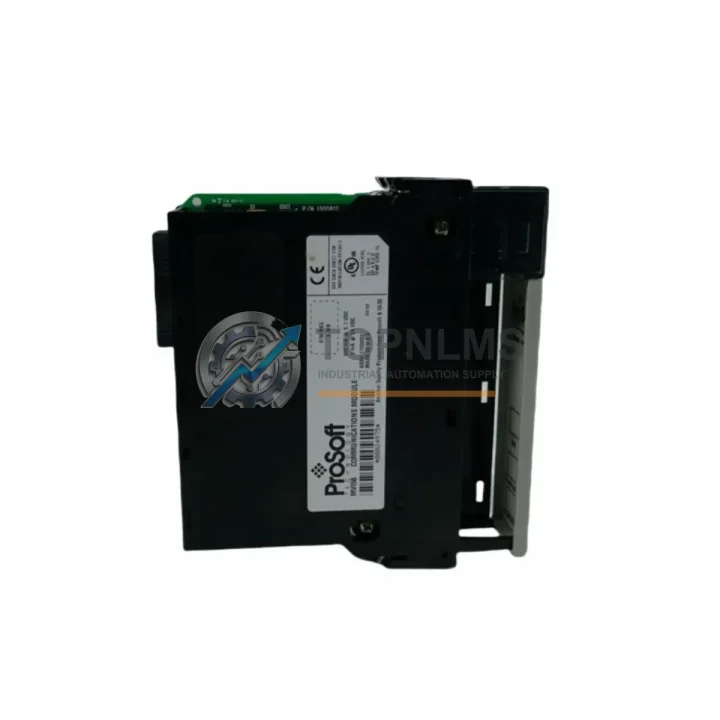

ProSoft MVI56-DFCMR Original Industrial Spare MVI56 Compatible

Product Overview

ProSoft MVI56-DFCMR Original Industrial Spare MVI56 Compatible: System Stability & Industrial Spare Parts Maintenance Value

The ProSoft MVI56-DFCMR is a high-performance DF1/Modbus RTU/ASCII protocol gateway module engineered for Allen-Bradley ControlLogix backplane systems. In industrial environments where communication continuity is non-negotiable — from automotive assembly lines to oil & gas processing facilities — the MVI56-DFCMR serves as the critical bridge between legacy serial devices and modern ControlLogix PLCs. Sourced as an original spare part, this module ensures your control architecture maintains full protocol compatibility without costly system redesigns or unplanned downtime.

For maintenance engineers managing aging ControlLogix installations, having a verified MVI56-DFCMR on the shelf is not optional — it is a fundamental pillar of any responsible preventive maintenance program. Communication module failures are among the most disruptive events in a production environment: they can silently corrupt data exchange between field devices and the controller, trigger cascading alarms, and bring entire production lines to a halt within minutes. A pre-tested, ready-to-deploy MVI56-DFCMR eliminates the critical gap between fault detection and system restoration.

Critical Technical Specs Table

Preventive Maintenance Strategy

A structured preventive maintenance program for any ControlLogix-based control system must extend well beyond the MVI56-DFCMR itself. During scheduled shutdowns or annual inspections, maintenance teams should treat the communication gateway as part of a broader system health audit. When replacing or inspecting the MVI56-DFCMR, it is best practice to simultaneously verify the condition of adjacent modules in the same chassis.

Start with the 1756-L71 or 1756-L73 ControlLogix CPU — the controller that the MVI56-DFCMR communicates with via the backplane. Firmware currency and battery health on the CPU directly affect the reliability of protocol data exchange. Next, inspect the 1756-PA72 or 1756-PB72 power supply module: an aging or undersized power supply is a leading cause of intermittent communication faults that are often misdiagnosed as gateway module failures. Confirm that backplane current budgets are within specification after any module swap.

Serial field devices connected to the MVI56-DFCMR’s RS-232/RS-485 ports — such as Modbus RTU drives, flow computers, or remote I/O adapters — should have their cable terminations and shielding inspected at the same time. Degraded shielding on serial communication cables is a frequent source of intermittent Modbus errors that escalate into full communication loss. Consider stocking a set of 1756-IB16 or 1756-OB16 digital I/O modules alongside the gateway, as I/O module failures in the same chassis can mask or compound communication faults during troubleshooting.

For systems using the MVI56-DFCMR to bridge legacy DF1 devices — such as older SLC 500 or PLC-5 controllers — it is advisable to maintain a spare 1747-KE or 1785-KE serial communication module on the legacy side of the network. This ensures that a fault on either end of the DF1 link can be isolated and resolved without extended downtime. Additionally, 1756-EN2T EtherNet/IP communication modules in the same chassis should be inspected for firmware updates and connector integrity, as network topology changes can affect gateway performance.

Do not overlook the terminal blocks and DIN rail wiring connected to field devices communicating via the MVI56-DFCMR. Loose terminations, oxidized contacts, and undersized conductors are common root causes of serial communication instability. A comprehensive inspection should also include any signal isolators or surge protection devices installed on the RS-485 bus, particularly in environments with high electromagnetic interference from variable frequency drives or large motor starters.

Strategic Replacement Solutions

The MVI56-DFCMR is a direct replacement for aging or failed ProSoft protocol gateway modules in existing ControlLogix installations. Because it is an original ProSoft module — not a third-party clone — it maintains full compatibility with ProSoft Configuration Builder (PCB) project files, eliminating the need to rebuild communication configurations from scratch. This is a critical advantage in time-sensitive maintenance scenarios: a technician can export the existing PCB configuration from the failed module’s backup, load it onto the replacement MVI56-DFCMR, and restore full communication in a fraction of the time required for a reconfiguration from zero.

For facilities managing multiple ControlLogix chassis across different production zones, standardizing on the MVI56-DFCMR as the approved gateway module for all DF1 and Modbus serial integrations simplifies spare parts inventory management. A single SKU covers a wide range of serial protocol bridging scenarios, reducing the number of unique part numbers that must be stocked and tracked. This consolidation directly reduces carrying costs while improving the probability that the correct spare is available at the moment of need.

In older installations where the MVI56-DFCMR was originally specified for a specific serial device integration, the module’s dual-port architecture allows maintenance teams to consolidate two previously separate serial networks onto a single gateway — reducing chassis slot consumption and simplifying the overall communication architecture during system upgrades. This makes the MVI56-DFCMR not only a like-for-like replacement but also a platform for incremental system modernization without full migration costs.

All units supplied by TOPNLMS are sourced as original ProSoft Technology products, individually tested for backplane communication integrity and serial port functionality prior to shipment, and covered by a 12-month warranty from the date of dispatch. Expedited shipping options are available to support emergency maintenance scenarios.

Support FAQ

Q1: Is the MVI56-DFCMR compatible with all ControlLogix chassis and firmware versions?
The MVI56-DFCMR is designed for the Allen-Bradley 1756 ControlLogix backplane and is compatible with all standard ControlLogix chassis sizes (4, 7, 10, 13, and 17 slots). Compatibility with specific Logix firmware versions should be verified against the ProSoft Technology product compatibility matrix. In most cases, the module operates independently of the CPU firmware version, as communication is managed through the ProSoft Configuration Builder and Add-On Instructions (AOI) provided by ProSoft.

Q2: What is included in the pre-shipment testing process?
Each MVI56-DFCMR unit undergoes a full functional test before dispatch. This includes backplane communication verification, serial port continuity and signal integrity checks, and firmware version confirmation. A test report is available upon request. Units are shipped in anti-static packaging with all original accessories.

Q3: How should I manage MVI56-DFCMR spare parts inventory for a multi-site facility?
For facilities with three or more ControlLogix systems using MVI56-series gateway modules, we recommend maintaining a minimum of one spare MVI56-DFCMR per site, with a centralized buffer stock of two to three units for regional distribution. Given typical lead times for industrial communication modules, on-shelf availability is the most reliable way to meet a four-hour or same-shift restoration target. TOPNLMS supports blanket order arrangements for volume spare parts programs.

Q4: What is covered under the 12-month warranty, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact TOPNLMS with the order reference number and a description of the observed fault. A replacement or repair will be arranged within the agreed service timeline. Warranty period begins from the date of shipment confirmation.
