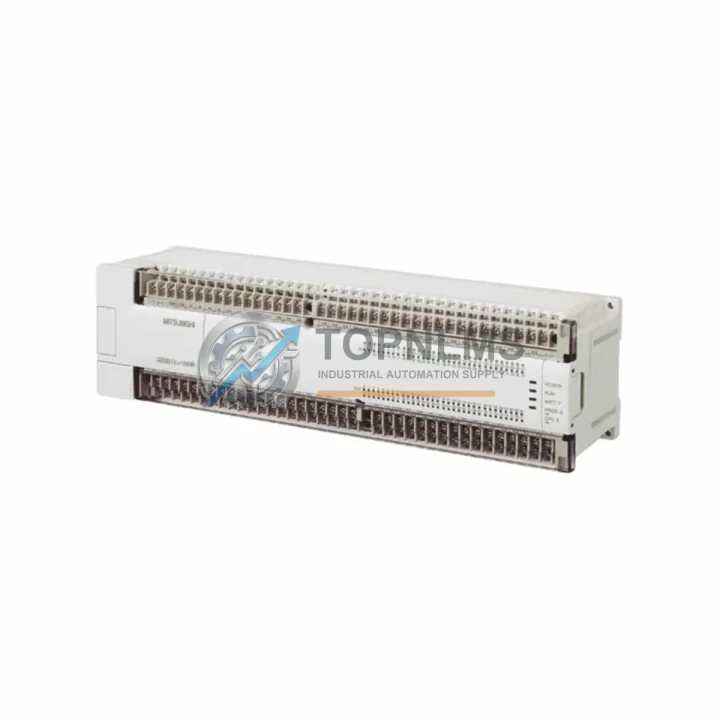

Mitsubishi FX2N-128MR-001 Original Industrial Spare FX2N Compatible

Product Overview

Mitsubishi FX2N-128MR-001 Original Industrial Spare: System Stability & Reliable PLC Maintenance

The Mitsubishi Electric FX2N-128MR-001 is a cornerstone component in countless manufacturing and process control environments worldwide. As a 128-point relay output programmable logic controller from the renowned MELSEC FX2N Series, this unit delivers the deterministic scan-cycle performance and robust I/O capacity that industrial maintenance teams depend on to keep production lines running without interruption. Whether you are managing a scheduled overhaul, responding to an unplanned shutdown, or building a strategic spare-parts inventory, sourcing an original FX2N-128MR-001 is the most direct path to restoring system stability and minimizing costly downtime.

At TOPNLMS, every FX2N-128MR-001 unit is sourced from verified supply channels, individually inspected, and dispatched with a 12-month quality warranty. We understand that industrial buyers cannot afford uncertainty in their spare-parts supply chain — which is why we combine rigorous pre-shipment testing with transparent documentation and responsive technical support.

Critical Technical Specs

Preventive Maintenance Strategy for FX2N-128MR-001 Systems

A planned maintenance approach centered on the FX2N-128MR-001 should extend well beyond the CPU unit itself. In practice, the reliability of a MELSEC FX2N control cabinet depends on the coordinated health of every component in the electrical loop. When technicians schedule a routine inspection or respond to a fault alarm, experienced maintenance engineers know to evaluate the entire system rather than replacing the PLC in isolation.

Begin with the power supply module — the FX2N-128MR-001 draws AC power directly, and an aging or undersized power supply is one of the most common root causes of intermittent PLC faults. If the cabinet also houses a dedicated FX2N-PSU power supply unit or a 24 VDC rail feeding field devices, verify output voltage stability under load before declaring the PLC itself faulty.

Next, inspect the I/O expansion modules connected via the right-side bus. The FX2N Series supports a wide range of extension units — including FX2N-16EX input expansion modules and FX2N-16EYR relay output expansion modules — and worn or corroded bus connectors between the base unit and these extensions are a frequent source of I/O errors that are misdiagnosed as CPU failures. Cleaning connector contacts and verifying secure mechanical engagement takes only minutes but can prevent unnecessary CPU replacement.

Communication integrity is equally critical. If the system uses FX2N-485-BD or FX2N-232-BD communication boards for SCADA connectivity or HMI data exchange, inspect the board seating and the RS-485 cable termination resistors. A loose communication board can cause intermittent program upload failures or HMI disconnections that appear to implicate the CPU. Similarly, if the installation includes a GOT1000 or GOT2000 series HMI connected to the FX2N-128MR-001, verify the HMI firmware version is compatible with the PLC program version before swapping the CPU.

On the field wiring side, relay output contacts on the FX2N-128MR-001 have a rated mechanical life and an electrical life that depends heavily on load type and switching frequency. During any inspection, use a multimeter to verify contact resistance on high-cycle output channels. Where relay contact wear is detected, consider whether FX2N-16EYT transistor output extension modules could offload high-frequency switching duties from the base unit’s relay outputs, extending overall system life.

Terminal blocks and wiring ferrules inside the control cabinet deserve attention during every planned shutdown. Loose terminals on FX2N-TB terminal block units or on the PLC’s own I/O terminal strip are a leading cause of intermittent field device faults. Torque-check all terminals and replace any discolored or heat-damaged ferrules. If the cabinet includes signal isolators or surge protection modules on analog input channels, verify their output signal accuracy with a calibrated source — degraded isolators can introduce offset errors that affect process control quality without triggering any PLC fault code.

Finally, review the battery backup status of the FX2N-128MR-001. The internal lithium battery (FX-BATTERY or equivalent) maintains the program memory and retentive data registers during power loss. A low-battery warning should never be deferred — schedule battery replacement during the next planned maintenance window and keep at least one spare battery in your local inventory alongside the CPU spare itself.

Strategic Replacement Solutions

The FX2N-128MR-001 has been a production staple for over two decades, and many facilities continue to operate FX2N-based systems well into their extended service life. Sourcing an original replacement unit — rather than attempting a cross-platform migration during an unplanned outage — is almost always the faster and lower-risk path to restoring production.

An original FX2N-128MR-001 replacement requires no program modification, no I/O rewiring, and no retraining of maintenance personnel. The replacement unit accepts the existing ladder logic program via GX Developer or GX Works2 in minutes, and the relay output wiring connects directly to the existing terminal strip. This plug-compatible replacement approach eliminates the validation overhead associated with platform migrations and allows production to resume within the same maintenance shift.

For facilities managing a fleet of FX2N-based machines, a strategic spare-parts inventory that includes at least one FX2N-128MR-001 unit per production line — or per facility, for lower-criticality applications — is a well-established best practice in industrial maintenance management. The cost of a single unplanned production stoppage typically exceeds the cost of maintaining a spare CPU by a significant margin. TOPNLMS supports bulk procurement inquiries and can assist with multi-unit orders for facilities looking to standardize their FX2N spare-parts holdings.

For systems where the FX2N-128MR-001 is approaching end of service life and a platform upgrade is being planned, the MELSEC iQ-F FX5U Series represents Mitsubishi Electric’s current-generation successor platform. However, any such migration should be planned during a scheduled capital project — not during an emergency repair. In the interim, maintaining an original FX2N-128MR-001 spare ensures that the existing system can be restored to full operation at any time, preserving optionality for the upgrade decision.

Support FAQ

Q1: Is this FX2N-128MR-001 an original Mitsubishi Electric unit?
Yes. All units supplied by TOPNLMS are original Mitsubishi Electric components sourced from verified industrial supply channels. Each unit undergoes pre-shipment functional inspection and is dispatched with a 12-month warranty covering manufacturing defects and operational failures under normal use conditions.

Q2: How do I verify compatibility with my existing FX2N expansion modules and HMI?
The FX2N-128MR-001 is fully compatible with all standard FX2N Series extension modules, FX2N communication boards, and GOT series HMIs that support the FX2N protocol. If you are connecting to a third-party SCADA or HMI system via RS-485 or RS-232, verify that the communication board type (FX2N-485-BD or FX2N-232-BD) and baud rate settings match your existing configuration before powering up the replacement unit.

Q3: What is the recommended approach for on-site replacement to minimize downtime?
Before powering down the existing unit, back up the current program using GX Developer or GX Works2 via the RS-422 port. Note the current battery status and retentive data register values if process continuity requires it. After installing the replacement FX2N-128MR-001, restore the program, verify I/O mapping against the wiring diagram, and perform a controlled test cycle before returning the machine to production. Total replacement time for a prepared technician is typically under 30 minutes.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions (within specified voltage, temperature, and humidity ranges). It does not cover damage resulting from incorrect wiring, overvoltage events, or physical impact. To initiate a warranty claim, contact TOPNLMS with your order reference, a description of the fault symptom, and any available diagnostic data. Our technical team will assess the claim and arrange replacement or repair as appropriate.
