Mitsubishi F1-12MR Ruggedized Relay Output Module for Harsh Environments

Product Overview

Mitsubishi F1-12MR Ruggedized Relay Output Module for Harsh Environments

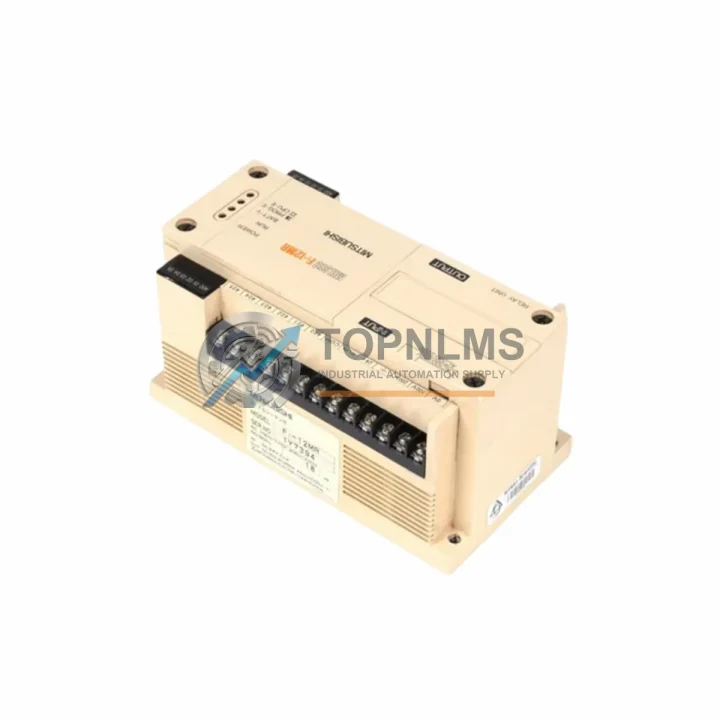

The Mitsubishi F1-12MR is a compact, relay-output programmable logic controller base unit from the MELSEC F1 Series — engineered by Mitsubishi Electric to deliver uncompromising reliability in the most demanding industrial environments. Whether deployed on a continuous petrochemical production line, inside a high-vibration mining conveyor cabinet, or within a dust-laden cement plant control room, the F1-12MR maintains stable scan-cycle execution and deterministic I/O response where lesser controllers fail.

With 12 I/O points (8 inputs / 4 relay outputs), the F1-12MR is purpose-built for machine-level control tasks that require robust contact isolation, high inrush tolerance, and resistance to electromagnetic interference. Its relay output architecture provides galvanic isolation between the controller logic and field devices, making it inherently safer for switching inductive loads such as solenoid valves, motor starters, and contactor coils — all common in heavy industrial and process automation applications.

At TOPNLMS, every F1-12MR unit is sourced from verified supply channels, individually inspected, and shipped with a 12-month quality warranty. We maintain ready stock to support urgent MRO (Maintenance, Repair & Operations) requirements and planned capital projects alike.

Rugged Specifications Table

Comprehensive Protection Solutions

The F1-12MR does not operate in isolation — it anchors a broader control architecture that must remain cohesive under electrical stress, thermal cycling, and mechanical shock. In a typical control cabinet deployment, the F1-12MR base unit works in concert with F1-E8X and F1-E8YR digital expansion modules to extend the I/O count for larger machine sequences. Power to the controller and field devices is typically conditioned through a Mitsubishi Electric Q61P or equivalent industrial DIN-rail power supply, ensuring clean 24 VDC with sufficient hold-up time during momentary grid disturbances.

For applications requiring analog process control — such as temperature regulation in a furnace or pressure management in a hydraulic press — the F1-4AD analog input module integrates directly into the F1 expansion bus, allowing the F1-12MR to read 4–20 mA or 0–10 V signals from field transmitters without additional signal conditioning hardware. On the output side, relay contacts driving inductive loads benefit from external RC snubber circuits or dedicated surge suppressors mounted on the terminal block, protecting both the relay contacts and adjacent I/O modules from back-EMF spikes.

In environments with significant electromagnetic interference — common near variable frequency drives (VFDs) such as the Mitsubishi FR-E700 series or high-current motor starters — proper cable segregation and the use of shielded twisted-pair wiring for the F1-C24R communication cable are essential. Ferrite cores on power and signal cables further attenuate conducted noise. When the F1-12MR is integrated into a larger MELSEC network, F1-C24R RS-232C communication adapters or F1-C14R RS-422 modules enable reliable data exchange with SCADA systems, HMI panels, and upstream Q-Series or iQ-R Series PLCs.

Safety-critical interlocks — such as emergency stop circuits, light curtain interfaces, and safety relay modules like the Mitsubishi Safety Controller WS0-CPU0 — are typically wired in series with the F1-12MR relay outputs, ensuring that a de-energize-to-trip logic is maintained even if the PLC program encounters a fault. Terminal blocks from the Mitsubishi TB series or equivalent DIN-rail terminal modules provide organized, vibration-resistant field wiring termination points within the control cabinet, reducing the risk of loose connections that could cause spurious trips or undetected faults in high-vibration environments.

Application in Critical Infrastructure

The Mitsubishi F1-12MR has earned a long service record across critical infrastructure sectors where unplanned downtime carries severe operational and safety consequences.

Oil & Gas: In upstream wellhead automation and midstream pipeline compression stations, the F1-12MR controls valve actuators, pump motor starters, and pressure relief interlocks. Its relay output architecture provides the hard-wired isolation required by functional safety standards, and its compact form factor fits within explosion-proof junction boxes when paired with appropriate Zener barriers or galvanic isolators for Zone 2 hazardous area installations.

Mining & Minerals Processing: Conveyor belt systems, crusher interlocks, and slurry pump sequencing in underground and open-cut mines subject control hardware to continuous vibration, coal dust ingress, and wide ambient temperature swings. The F1-12MR’s sealed PCB construction and vibration-rated relay contacts maintain reliable operation across multi-shift, 24/7 production schedules. Replacement units from TOPNLMS stock allow maintenance teams to execute hot-swap changeovers during scheduled shutdowns, minimizing production loss.

Power Generation & Utilities: Auxiliary control systems in thermal power plants — including cooling water pump sequencing, fuel oil transfer, and ash handling — rely on legacy MELSEC F1 controllers that have proven their longevity over decades of continuous service. The F1-12MR’s compatibility with the broader F1 expansion ecosystem means that existing panel wiring, I/O assignments, and ladder logic programs can be preserved during a like-for-like replacement, eliminating costly re-engineering.

Water & Wastewater Treatment: Pump station automation, chemical dosing control, and UV disinfection sequencing in municipal water treatment facilities demand controllers that resist humidity, chemical vapors, and the electrical noise generated by large submersible pump VFDs. The F1-12MR’s noise immunity and relay output isolation make it a dependable choice for these environments.

Metallurgy & Heavy Industry: Rolling mill auxiliary drives, ladle transfer car controls, and furnace atmosphere management in steel and aluminum plants expose control hardware to radiant heat, electromagnetic fields from induction furnaces, and mechanical shock from overhead crane operations. The F1-12MR’s industrial-grade construction and Mitsubishi Electric’s proven MELSEC architecture provide the resilience required for these extreme conditions.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
All F1-12MR units sold by TOPNLMS are covered by a 12-month warranty from the date of shipment. This covers manufacturing defects, functional failures under normal operating conditions, and component-level faults identified during incoming inspection. In the event of a warranty claim, TOPNLMS will arrange replacement or repair at no additional cost to the buyer. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: How is each unit tested before shipment?
Every F1-12MR undergoes a pre-shipment functional verification that includes power-on self-test confirmation, I/O point continuity checks, relay contact resistance measurement, and visual inspection for physical damage, corrosion, or counterfeit indicators. Units that do not pass all inspection criteria are quarantined and not shipped. A test report is available upon request for customers with incoming quality control requirements.

Q3: Is the F1-12MR compatible with existing MELSEC F1 Series programs and expansion modules?
Yes. The F1-12MR is fully compatible with the MELSEC F1 Series expansion ecosystem, including F1-E8X input modules, F1-E8YR relay output modules, F1-4AD analog input modules, and F1-C24R / F1-C14R communication adapters. Existing ladder logic programs created with MELSEC Medoc or GX Developer software can be transferred directly to a replacement F1-12MR without modification, provided the program was originally developed for the F1 CPU architecture.

Q4: Can TOPNLMS support long-term or repeat procurement of the F1-12MR?
Yes. TOPNLMS maintains dedicated stock of MELSEC F1 Series components to support both emergency MRO replacements and planned capital project procurement. For customers managing aging MELSEC F1 installations, we offer a standing order arrangement and advance notification of stock availability changes. Contact our technical sales team at [email protected] or call +86 18359293191 to discuss your long-term supply requirements.
