Mitsubishi FX1N-40MR-001 Replacement/Upgrade Solution: Seamless Transition from Legacy FX1N Systems

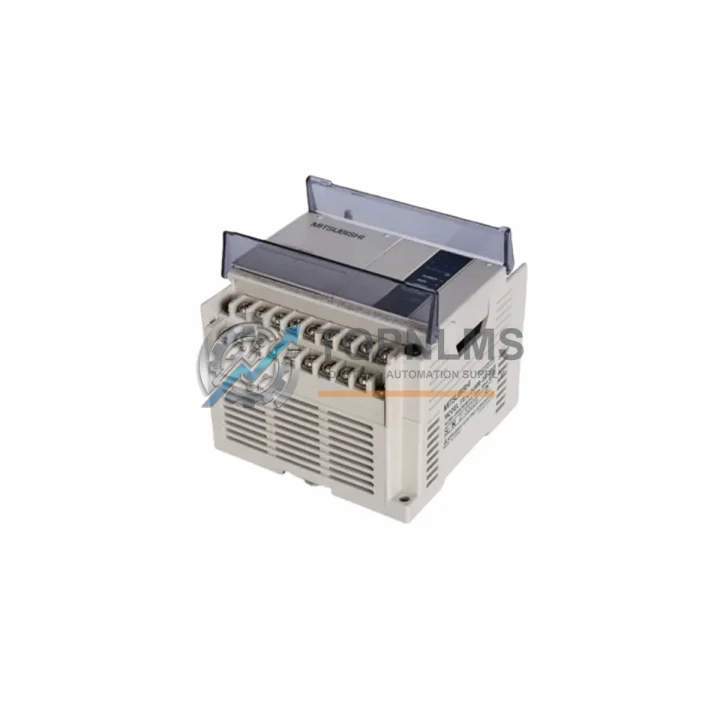

The Mitsubishi FX1N-40MR-001 is a compact, high-performance programmable logic controller from the FX1N Series, featuring 24 DC inputs and 16 relay outputs in a single integrated unit. As industrial facilities worldwide face the challenge of maintaining aging FX1N-based control systems — many of which have reached end-of-life or are approaching discontinuation — sourcing a verified, fully compatible replacement unit has become a critical procurement priority.

At TOPNLMS, we specialize in supplying genuine and compatible FX1N-40MR-001 units to support smooth migration, emergency replacement, and planned upgrade projects. Whether your facility is running a standalone machine controller, a multi-axis conveyor system, or a legacy production line built around the FX1N platform, our stock is tested, documented, and ready to ship from Xiamen with a 12-month warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful FX1N-40MR-001 migration rarely involves the CPU unit alone. In practice, field engineers replacing a failed or discontinued FX0N-40MR or FX1N-40MR-001 must also evaluate the surrounding system architecture to ensure continuity of operation.

For facilities expanding I/O capacity alongside the CPU swap, the FX1N-8EX (8-point DC input expansion) and FX1N-8EYR (8-point relay output expansion) modules mount directly to the right side of the FX1N-40MR-001 base unit using the standard FX1N expansion bus connector — no additional wiring harness or adapter required. These expansion modules share the same 24V DC input logic level and relay output rating as the base unit, making them the natural first choice for incremental I/O growth without redesigning the control cabinet.

Communication integration is another common challenge during FX1N upgrades. The FX1N-232-BD RS-232C communication board and FX1N-485-BD RS-485 board plug directly into the FX1N-40MR-001 option board slot, enabling Modbus RTU master/slave communication with SCADA systems, HMI panels, and variable frequency drives without modifying the main program structure. For facilities already using a GOT1000 series HMI (such as the GT1055-QSBD or GT1150-QBBD), the existing RS-422 cable and GOT communication driver settings remain fully compatible with the FX1N-40MR-001, eliminating the need for HMI reconfiguration during the PLC swap.

Power supply integrity is critical during any control system retrofit. The FX1N-40MR-001 draws its operating power from the 100–240V AC mains supply via its integrated power supply section. In cabinets where a dedicated 24V DC rail powers field sensors and input devices, a Mitsubishi S8VK-series or equivalent DIN-rail power supply module should be verified for adequate current capacity before commissioning the replacement unit, particularly if additional FX1N expansion modules are being added to the rack.

For facilities migrating from older FX0N-40MR or FX-16MR units, the terminal block layout of the FX1N-40MR-001 is physically compatible with the FX0N-40MR wiring harness, allowing direct re-termination without rewiring the field cable bundle. Engineers should verify input common (COM) groupings and output relay contact ratings against the existing wiring diagram before energizing the replacement unit. The FX1N-40MR-001 uses grouped input commons (S/S terminal) compatible with both sink and source wiring configurations, which simplifies adaptation from earlier FX0N sink-only wiring schemes.

For applications requiring analog signal processing alongside the digital I/O of the FX1N-40MR-001, the FX1N-2AD-BD analog input board (2-channel, 0–10V / 4–20mA) and FX1N-1DA-BD analog output board mount in the option board slot and are fully supported by the FX1N instruction set without additional special function module programming. This makes the FX1N-40MR-001 a practical upgrade path for legacy systems that previously relied on external signal conditioners or separate analog controllers.

Programming continuity is one of the most significant concerns during any PLC replacement project. Programs written for the FX0N or earlier FX1N units can be read directly into GX Developer or GX Works2 and transferred to the FX1N-40MR-001 via the SC-09 RS-422 programming cable or USB-SC09-FX USB adapter. Instruction set compatibility between FX0N and FX1N is high, with the primary differences limited to high-speed counter assignments and certain special relay (M) and register (D) address ranges. A qualified engineer should perform a full program verification and I/O force test before returning the machine to production.

Retrofit Guidance FAQ

Q: Can the FX1N-40MR-001 directly replace an FX0N-40MR without rewiring?
A: In most cases, yes. The terminal block layout and input/output point count are identical. Verify COM groupings and relay contact ratings against your existing wiring diagram before energizing.

Q: Is the existing ladder program compatible with the FX1N-40MR-001?
A: Programs from FX0N and earlier FX1N units are generally compatible. Use GX Developer or GX Works2 to verify instruction compatibility. High-speed counter (C235–C255) assignments and special relay addresses should be reviewed.

Q: What programming cable is required?
A: The SC-09 RS-422 cable (Mini-DIN 8-pin to DB9) or the USB-SC09-FX USB adapter is required. Both are compatible with GX Developer and GX Works2 on Windows 7/10/11.

Q: Can I add Modbus RTU communication to the FX1N-40MR-001?
A: Yes. Install the FX1N-485-BD RS-485 board in the option board slot and configure the FX1N-40MR-001 as a Modbus RTU master or slave using the RS2 / ADPRW instructions in GX Works2.

Q: How many expansion modules can be connected?
A: Up to 8 FX1N-series expansion modules (FX1N-8EX, FX1N-8EYR, FX1N-2AD-BD, etc.) can be connected to the right side of the FX1N-40MR-001, for a maximum of 128 I/O points.

Q: Will the existing GOT HMI communicate with the replacement FX1N-40MR-001?
A: Yes. GOT1000 and GOT2000 series HMIs using the Mitsubishi FX communication driver over RS-422 are fully compatible with the FX1N-40MR-001 without driver or parameter changes.

Q: What is the physical installation space requirement?
A: The FX1N-40MR-001 mounts on a standard 35mm DIN rail. Its dimensions (W×H×D: 220×90×75mm) are identical to the FX0N-40MR, so no cabinet modification is required for a direct swap.

Warranty Assurance

Every FX1N-40MR-001 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a functional power-on test and I/O verification check to confirm correct operation of all input channels, relay output contacts, power supply section, and communication port.

In the event of a confirmed unit defect within the warranty period, TOPNLMS will arrange a replacement shipment or issue a full refund — whichever the customer prefers. Our after-sales response target is within 24 hours on business days. Customers are encouraged to document the fault condition (error codes, I/O behavior, communication logs) to expedite the diagnosis and resolution process.

For urgent production-line replacements, we maintain buffer stock of FX1N-40MR-001 and related FX1N Series components to support same-day or next-day dispatch from our Xiamen warehouse. Express international shipping via DHL, FedEx, or UPS is available to minimize downtime for overseas customers.

All units are shipped with original packaging, a test report, and a TOPNLMS warranty certificate. Bulk procurement inquiries and OEM/MRO supply agreements are welcome — please contact our sales team directly for volume pricing and lead time commitments.
