IDS UI-1540SE-M-HQ Original Industrial Spare uEye SE Compatible

Product Overview

IDS UI-1540SE-M-HQ Original Industrial Spare uEye SE Compatible: System Stability & Vision Maintenance Value

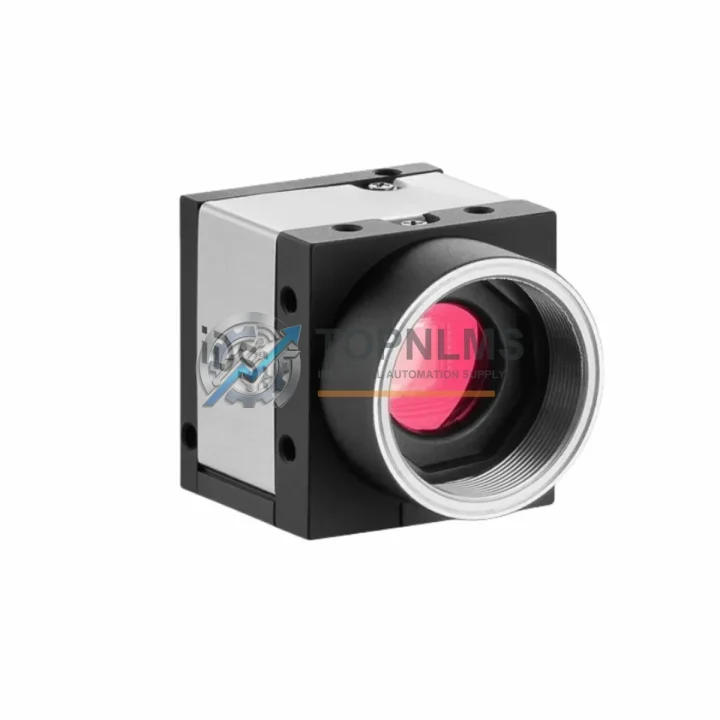

In modern industrial automation environments, machine vision systems are mission-critical infrastructure. The IDS UI-1540SE-M-HQ — a 1.3 MP USB 3.0 global shutter monochrome camera from IDS Imaging Development Systems’ proven uEye SE series — is a cornerstone component in quality inspection lines, robotic guidance systems, and automated optical inspection (AOI) stations worldwide. When this camera fails or degrades, the entire vision-guided process halts, triggering costly unplanned downtime. Holding a verified original spare on-site is the single most effective strategy to eliminate that risk.

At TOPNLMS, we supply the UI-1540SE-M-HQ as a tested, original IDS unit — not a clone or refurbished substitute. Each unit undergoes pre-shipment functional verification and ships with a 12-month quality warranty, giving your maintenance team the confidence to swap and restart production without hesitation.

Critical Technical Specs

Preventive Maintenance Strategy

A machine vision station is never a single-component system. When scheduling a planned inspection or responding to an unplanned camera failure, experienced maintenance engineers know that the UI-1540SE-M-HQ rarely fails in isolation — surrounding components in the same imaging cell are subject to the same operational stress and aging cycles.

During a camera replacement procedure, it is best practice to simultaneously inspect the USB 3.0 industrial-grade shielded cable connecting the camera to the host PC or vision controller. Vibration, repeated flexing, and connector wear are leading causes of intermittent image dropout that is often misdiagnosed as a camera fault. Replacing the cable at the same time as the camera eliminates this variable entirely and prevents a repeat service call within days of the first.

The C-mount or CS-mount industrial lens paired with the UI-1540SE-M-HQ should also be evaluated during any camera swap. Lens contamination, focus drift caused by thermal cycling, and aperture wear can degrade image quality even after a new camera is installed. Keeping a compatible spare lens — matched to the same focal length and working distance — in your maintenance kit is a low-cost insurance policy against a second unplanned outage.

For vision systems integrated into a PLC-controlled production line, the digital I/O trigger module or trigger signal isolator that synchronizes the camera exposure with the conveyor or robot arm should be checked for signal integrity. A degraded trigger signal causes missed frames and false rejects — symptoms frequently attributed to the camera itself. Verifying the trigger circuit, including the 24 VDC power supply module feeding the I/O rack, is a standard step in any thorough vision system preventive maintenance procedure.

If the UI-1540SE-M-HQ is installed in a control cabinet alongside a PLC CPU module or industrial PC (IPC), inspect the cabinet’s cooling fan module and filter mat during the same maintenance window. Elevated ambient temperature inside the enclosure accelerates sensor aging and reduces MTBF for all electronics in the cabinet. The terminal block wiring and cable management channels should also be checked for loose connections that can introduce ground noise into the imaging system.

For facilities running legacy uEye USB 2.0 cameras alongside newer uEye SE units, this is also an ideal time to audit the USB hub or managed USB switch powering multiple cameras on the same bus. Insufficient bus power or bandwidth contention is a common root cause of frame loss in multi-camera setups. Upgrading to a dedicated industrial USB 3.0 PCIe host controller card in the vision PC resolves these issues definitively and extends the effective service life of all cameras on the line.

Finally, if your facility uses IDS uEye cockpit software or a third-party SCADA/MES integration for camera management, verify that the software license and driver version are compatible with the replacement unit’s firmware. Maintaining a documented firmware and driver version log for all vision components is a low-cost governance practice that prevents compatibility surprises during emergency replacements.

Strategic Replacement Solutions

The IDS uEye SE platform has been deployed in industrial environments for over a decade, and many facilities are still running first-generation uEye USB 2.0 cameras on aging vision PCs. The UI-1540SE-M-HQ provides a direct upgrade path: it uses the same IDS uEye SDK software stack, meaning existing vision application code, calibration files, and HMI interfaces require minimal or no modification. This drop-in compatibility dramatically reduces the engineering effort and risk associated with a camera refresh, allowing maintenance teams to execute the swap during a scheduled maintenance window rather than a full system re-commissioning project.

For facilities facing end-of-life (EOL) notices on older IDS models, stocking the UI-1540SE-M-HQ as a strategic spare provides a bridge solution that preserves the existing system architecture while procurement evaluates long-term platform migration options. The global shutter architecture eliminates motion blur on high-speed lines — a common limitation of older rolling-shutter cameras — improving inspection accuracy without requiring changes to lighting or conveyor speed.

The compact aluminum housing and standard C-mount interface ensure mechanical compatibility with existing camera brackets, lens assemblies, and enclosure cutouts, meaning zero mechanical re-engineering cost during replacement. Combined with the USB 3.0 interface’s plug-and-play enumeration under the IDS driver, a trained technician can complete a full camera swap, focus verification, and system restart in under 30 minutes — minimizing production downtime to the absolute minimum.

TOPNLMS maintains stock of the UI-1540SE-M-HQ and ships within 1–3 business days from verified inventory. All units are tested prior to dispatch and accompanied by a test report. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, providing procurement teams with a defensible total cost of ownership (TCO) argument for stocking original spares versus sourcing ad-hoc at the point of failure.

Support FAQ

Q1: Is the UI-1540SE-M-HQ compatible with my existing IDS uEye software and vision application?
Yes. The UI-1540SE-M-HQ is fully supported by the IDS uEye SDK for Windows and Linux. It enumerates as a standard uEye USB device, and existing application code written against the uEye API will function without modification. We recommend verifying the installed SDK version against IDS’s compatibility matrix for your specific OS version before installation.

Q2: What is the recommended spare inventory strategy for machine vision cameras in a high-uptime production environment?
For lines where vision inspection is in the critical path, a minimum of one hot-spare camera per vision station is recommended. For multi-camera systems with more than four cameras, a ratio of one spare per four installed units is a common industry benchmark. Spares should be stored in anti-static packaging in a temperature-controlled environment and rotated into service on a 3–5 year cycle to prevent storage-related degradation.

Q3: How does TOPNLMS verify the authenticity and functionality of the UI-1540SE-M-HQ before shipment?
Each unit is powered on and connected to an IDS uEye-compatible host system. We verify USB enumeration, live image capture at full resolution, trigger input response, and absence of pixel defects using IDS’s built-in diagnostic tools. A test report is included with each shipment. Units that do not pass all functional checks are not dispatched.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers functional failures and manufacturing defects under normal operating conditions (within specified temperature, humidity, and voltage ranges). It does not cover physical damage, ESD damage, or failures caused by incorrect installation. To initiate a warranty claim, contact us at [email protected] with your order number, a description of the failure, and photos of the unit. We will arrange return shipping and provide a replacement or repair within 10 business days of receiving the defective unit.
