Nikon 5964C2MAFQ5KA Original Industrial Spare M Plan 100X

Product Overview

Nikon 5964C2MAFQ5KA Original Industrial Spare M Plan 100X — System Stability & Precision Maintenance

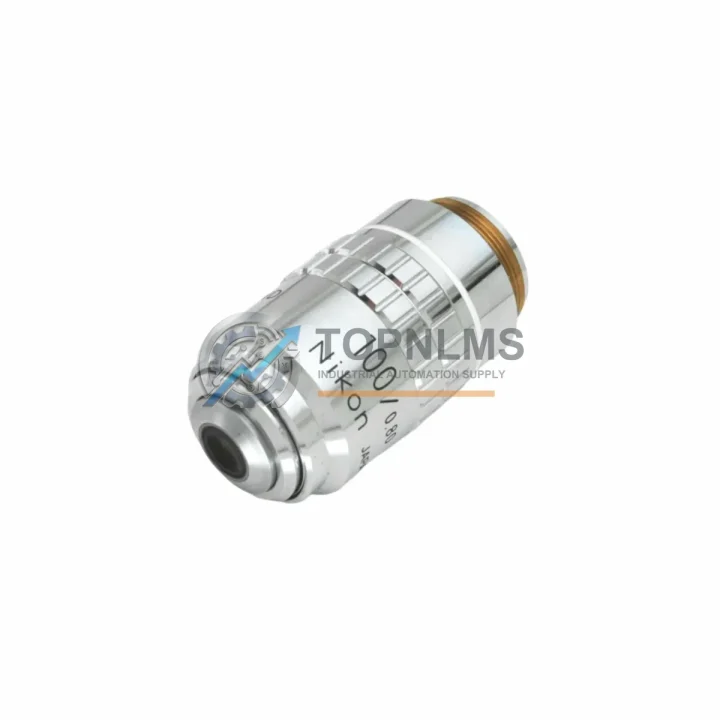

The Nikon 5964C2MAFQ5KA is an original M Plan series 100X / 0.80 ELWD (Extra Long Working Distance) objective lens engineered for demanding industrial inspection, semiconductor process control, and precision metrology environments. Sourced directly from Nikon’s optical manufacturing line, this objective lens delivers the optical consistency and mechanical reliability that maintenance engineers and procurement teams depend on when uptime is non-negotiable.

In high-throughput semiconductor fabs, flat panel display lines, and advanced materials inspection stations, the objective lens is a mission-critical consumable. A degraded or contaminated objective introduces measurement drift, false rejects, and unplanned downtime — all of which carry significant cost. Stocking a verified original replacement such as the 5964C2MAFQ5KA (GAS HE variant) or its companion 5964C2MAGU5KA (NF3 variant) ensures that your inspection system can be restored to full specification within minutes of a failure event, not days.

Critical Technical Specs

Preventive Maintenance Strategy

Objective lens replacement is rarely an isolated event. When a 100X ELWD objective such as the 5964C2MAFQ5KA is removed for inspection or replacement, experienced maintenance engineers use the opportunity to audit the entire optical column and surrounding subsystems. A structured inspection at this point can prevent secondary failures that would otherwise surface weeks later.

Begin with the Nikon nosepiece turret assembly — verify that the click-stop detents are firm and that all objective ports are free of particulate contamination. Inspect the illumination light guide and fiber bundle for degradation, as aging light sources cause uneven field illumination that is often misdiagnosed as objective lens defects. If the system uses a Nikon DS-series digital camera head or a CCD/CMOS sensor module, confirm that the C-mount adapter is seated correctly and that the sensor surface is clean.

For gas-purged configurations (GAS HE or NF3), inspect the objective purge gas supply line, including the inline gas pressure regulator and solenoid valve assembly, to confirm that purge flow rates are within specification. A failed solenoid or a cracked supply line will contaminate the new objective within hours of installation. Simultaneously, check the stage XY drive encoder cables and Z-axis piezo actuator connections — mechanical vibration from loose connectors is a leading cause of premature optical element wear.

If the microscope is integrated into an automated wafer handling system, verify the condition of the wafer chuck vacuum sensor and the auto-focus laser module. These components interact directly with the objective’s working distance and NA, and a miscalibrated auto-focus system will drive the objective into the sample surface, causing catastrophic lens damage. Finally, review the system controller interface board and any associated I/O signal cables connecting the microscope to the host inspection software — signal integrity issues here can cause erratic stage movement that stresses the objective mechanically.

Maintaining a minimum stock of one spare 5964C2MAFQ5KA and one 5964C2MAGU5KA alongside consumable items such as Nikon immersion oil type NF, lens cleaning tissue, and optical cleaning solvent is a low-cost insurance policy against extended downtime in high-value production environments.

Strategic Replacement Solutions

The Nikon M Plan 100X / 0.80 ELWD series was introduced to address the specific challenge of inspecting tall or encapsulated semiconductor structures where conventional short-working-distance objectives cannot reach the focal plane without contacting the sample. As process nodes have shrunk and packaging complexity has increased, the ELWD design has become the de facto standard for advanced node inspection stations.

Older Nikon M Plan objectives with shorter working distances — such as the M Plan 100X / 0.90 standard WD variants — can be directly replaced by the 5964C2MAFQ5KA in most nosepiece configurations, provided the turret thread pitch is compatible. This substitution not only restores optical performance but also extends the safe operating envelope of the inspection system, reducing the risk of objective-to-sample contact during automated scanning routines.

For facilities managing legacy Nikon Optiphot or Measurescope platforms, the M Plan series provides a cost-effective path to extend system life without capital investment in a new microscope platform. A single objective replacement can restore measurement capability that would otherwise require a full system upgrade, delivering significant ROI in maintenance budget terms. Procurement teams should note that lead times for original Nikon optical components from the factory can extend to 8–16 weeks; maintaining a local buffer stock of critical objectives eliminates this exposure entirely.

All units shipped from TOPNLMS are tested for optical clarity, mechanical thread integrity, and purge port function prior to dispatch. Each unit is individually packaged in anti-static, shock-absorbing packaging with a serialized inspection record included in the shipment documentation.

Support FAQ

Q1: What is the shelf life and storage requirement for the 5964C2MAFQ5KA when held as buffer stock?
When stored in the original sealed packaging in a clean, dry environment at 15–25°C with relative humidity below 60%, the objective lens can be held as buffer stock for 3–5 years without degradation of optical coatings or mechanical components. Avoid storage near strong magnetic fields or chemical vapors.

Q2: How do I verify compatibility with my existing Nikon microscope platform before installation?
Confirm that your nosepiece accepts the standard Nikon M Plan thread (M26 × 0.706 mm pitch). Check the system’s tube length specification — this objective is designed for 210 mm tube length with no cover glass (210/0). If your platform uses a different tube length, consult the Nikon optical correction collar specifications before installation.

Q3: What pre-shipment testing is performed on each unit?
Each 5964C2MAFQ5KA unit undergoes visual inspection under collimated light for coating defects, scratch-dig evaluation per MIL-O-13830 criteria, mechanical thread gauge verification, and purge port pressure-hold test (for gas-purged variants). A serialized test record accompanies every shipment.

Q4: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers optical defects (coating delamination, internal element separation, reticle damage) and mechanical defects (thread stripping, barrel deformation) arising under normal operating conditions. Physical damage from improper installation, chemical contamination, or sample contact is excluded. To initiate a claim, contact [email protected] with the serialized inspection record and a description of the defect. Return shipping instructions will be provided within 2 business days.
