Cognex VC7L-ASSY-420-0001 Original Industrial Spare VC7L Compatible

Product Overview

Cognex VC7L-ASSY-420-0001: System Stability & Industrial Spare Maintenance Value

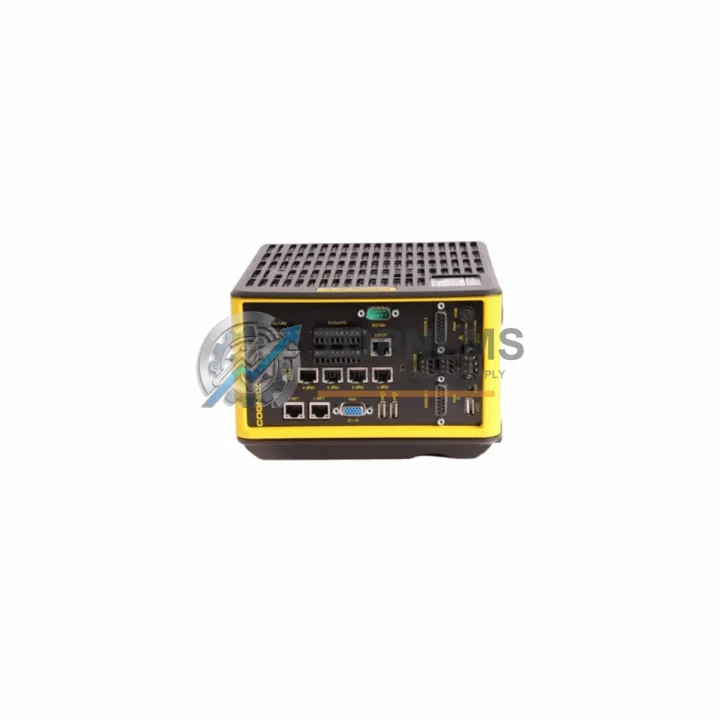

The Cognex VC7L-ASSY-420-0001 is the original assembly controller unit for the VisionView 7 (VC7L) platform — a high-performance industrial vision system controller engineered for multi-camera inspection, precision guidance, and automated quality control in demanding manufacturing environments. Whether you are managing a scheduled maintenance window, responding to an unplanned line stoppage, or building a strategic spare parts inventory for a legacy vision system, the VC7L-ASSY-420-0001 delivers the exact hardware compatibility and system reliability your operation depends on.

In modern factories, machine vision systems are deeply integrated into production lines — from automotive body inspection and semiconductor wafer alignment to food packaging verification and pharmaceutical label checking. When a vision controller fails, the downstream impact is immediate: production halts, quality gates go dark, and engineering teams scramble for a replacement. Stocking the VC7L-ASSY-420-0001 as a certified spare eliminates that risk entirely. This is not a generic substitute — it is the original Cognex assembly, fully compatible with the VC7L platform architecture, ensuring zero re-engineering effort during replacement.

Critical Technical Specs

Preventive Maintenance Strategy

A vision controller failure rarely occurs in isolation. The VC7L-ASSY-420-0001 sits at the heart of a broader inspection ecosystem, and a thorough maintenance strategy requires evaluating the health of every connected component. During any scheduled inspection or corrective maintenance event involving the VC7L controller, maintenance engineers should simultaneously audit the following associated components to prevent cascading failures and reduce future downtime risk.

Begin with the Cognex In-Sight camera units (such as the In-Sight 7000 or In-Sight 9000 series) connected to the VC7L controller — camera lens contamination, cable wear, or firmware drift can degrade inspection accuracy even when the controller itself is functioning correctly. Inspect and replace GigE Vision or USB3 Vision interface cables connecting cameras to the controller, as industrial environments subject these cables to vibration, heat cycling, and mechanical stress that degrades signal integrity over time.

The 24 VDC industrial power supply feeding the VC7L assembly should be load-tested during any maintenance window; an aging power supply with marginal output voltage is a common root cause of intermittent controller resets and false inspection failures. Alongside this, check the discrete I/O wiring and terminal blocks at the controller’s I/O interface — loose terminals or corroded contacts cause trigger signal loss and missed inspection cycles.

For systems integrated with a PLC or DCS, verify the EtherNet/IP or PROFINET communication module and associated managed Ethernet switch ports. Network latency or packet loss between the vision controller and the PLC can cause synchronization errors that appear as random inspection faults. If the VC7L is mounted inside a control cabinet, inspect the cabinet cooling fans and thermal management components — sustained operation above the rated temperature envelope accelerates controller board degradation.

Facilities running older Cognex VisionView installations should also evaluate whether the VisionPro software license dongle or activation is current and backed up, and whether the HMI or operator panel connected to the VC7L system is displaying accurate status. A failing HMI can mask controller alarms and delay fault detection. Finally, review the backup and recovery media for the VC7L configuration — having a verified configuration backup stored offline ensures that a controller swap can be completed in minutes rather than hours.

Strategic Replacement Solutions

The VC7L-ASSY-420-0001 is the direct original replacement for aging or failed VC7L controller assemblies. Unlike third-party alternatives that may require firmware modifications, driver updates, or camera re-pairing procedures, this original Cognex assembly installs as a drop-in replacement — preserving all existing camera configurations, inspection jobs, and PLC communication mappings without re-engineering effort.

For facilities managing end-of-life Cognex VisionView 5 or VisionView 6 installations, the VC7L platform represents a validated upgrade path that maintains backward compatibility with In-Sight camera hardware while delivering improved processing throughput and expanded multi-camera support. Procurement teams can reduce total cost of ownership by sourcing the VC7L-ASSY-420-0001 as a strategic spare — held in inventory and deployed immediately upon failure — rather than relying on emergency procurement channels that carry premium pricing and extended lead times.

All units supplied by TOPNLMS are tested under load prior to shipment, with functional verification of I/O interfaces, network communication, and power integrity. Each unit ships with documentation and is covered by a 12-month warranty, providing procurement and maintenance teams with the confidence to plan long-cycle maintenance intervals without spare-parts anxiety.

Support FAQ

Q1: Is the VC7L-ASSY-420-0001 compatible with my existing In-Sight cameras and VisionPro jobs?
Yes. The VC7L-ASSY-420-0001 is the original Cognex assembly for the VC7L platform and maintains full compatibility with In-Sight 7000/9000 series cameras and VisionPro software jobs. No camera re-pairing or job re-programming is required for a direct swap on an existing VC7L installation.

Q2: What does the 12-month warranty cover, and how is it handled?
The 12-month warranty covers hardware defects and functional failures under normal industrial operating conditions. If a unit fails within the warranty period, TOPNLMS will arrange replacement or repair. All units are functionally tested prior to shipment to minimize field failure risk.

Q3: How quickly can the unit be shipped, and what testing is performed before dispatch?
Units are typically dispatched within 1–3 business days of order confirmation. Each VC7L-ASSY-420-0001 undergoes power-on functional testing, I/O interface verification, and network communication checks before packaging. Expedited shipping options are available for urgent maintenance requirements.

Q4: Should I stock multiple units as preventive spares?
For facilities with multiple VC7L-based inspection stations or high-criticality production lines, stocking at least one spare VC7L-ASSY-420-0001 is strongly recommended. Vision controller failures are low-frequency but high-impact events — a spare on the shelf converts a potential multi-day production stoppage into a sub-hour maintenance swap. Contact TOPNLMS for volume pricing on multi-unit spare inventory orders.
