Honeywell C7015A1076 Replacement for C7015 Series

Product Overview

Honeywell C7015A1076 Replacement for C7015 Series: Seamless Transition & Burner Safeguard Upgrade

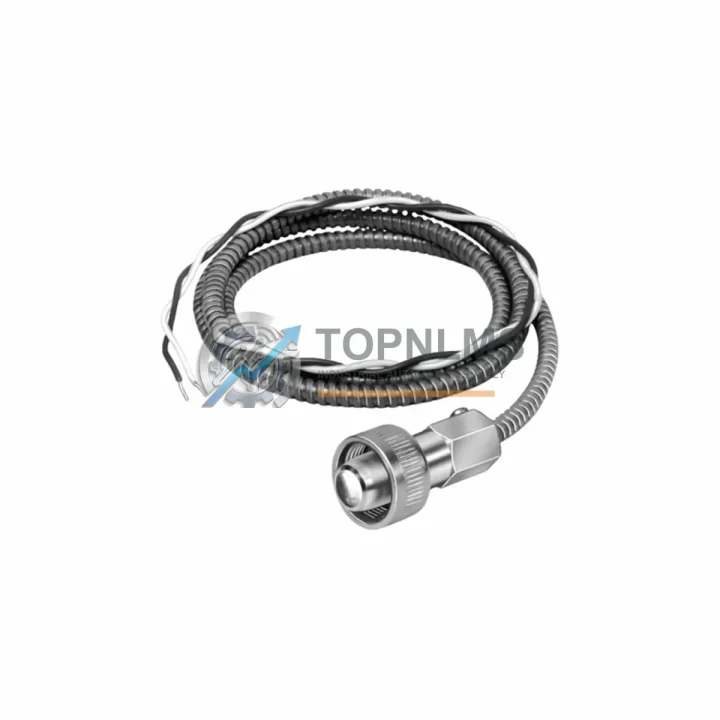

The Honeywell C7015A1076 is a UV flame detector engineered for the C7015 Burner Safeguard Series, widely deployed in industrial combustion control systems, boiler management units, and process heating applications. As legacy C7015 installations approach end-of-service life or face discontinued spare-part availability, facilities engineers and procurement teams are increasingly seeking a verified, drop-in replacement that preserves existing wiring infrastructure, maintains compatibility with installed flame safeguard controls, and eliminates the need for costly panel redesigns or extended commissioning periods.

This listing provides a tested, ready-to-ship C7015A1076 UV flame detector sourced directly from authorized supply channels. Each unit undergoes pre-shipment functional verification to confirm UV sensing response, output signal integrity, and housing condition before dispatch from our Xiamen warehouse. Whether you are executing a planned maintenance replacement, responding to an unplanned detector failure, or building a critical-spares inventory for a multi-burner installation, the C7015A1076 is available for immediate order fulfillment.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful C7015A1076 field replacement rarely involves the detector alone. In practice, the migration from an aging burner safeguard installation to a fully reliable, modernized combustion control system typically requires coordinated attention to several interconnected components within the same control panel or burner management cabinet.

The C7015A1076 UV flame detector interfaces directly with Honeywell’s RM7800L or RM7840G burner management controls — the primary flame safeguard relay modules that process the UV signal and execute fuel valve sequencing. If the existing RM7800 series relay module shows signs of age or has accumulated fault history, replacing it alongside the C7015A1076 eliminates the risk of a secondary failure shortly after the detector swap. Similarly, the R7140M1000 or R7140L1009 amplifier modules, which condition the UV signal between the detector and the relay, should be inspected and replaced if response times have degraded.

For installations where the C7015A1076 is mounted on a sight pipe assembly, the Q179 sight pipe and Q600 mounting flange accessories ensure correct optical alignment and airtight sealing — critical for accurate UV flame sensing in positive-pressure combustion chambers. Misalignment or a deteriorated sight pipe gasket can produce nuisance flame-loss trips even with a new detector installed, so these mechanical components deserve attention during any planned outage.

On the control panel side, the S7800A1142 display module paired with the RM7800 series provides local fault annunciation and lockout history — valuable during post-replacement commissioning to confirm the new C7015A1076 is producing a clean flame signal across the full firing range. Engineers performing a broader burner management system upgrade may also consider the 7800 SERIES R7910A Keyboard Display Module for enhanced diagnostics.

Where the existing installation includes a Honeywell Y8610U universal intermittent pilot module or a Q3450C gas valve, verifying their compatibility with the updated flame safeguard sequence is a standard commissioning step. The C7015A1076 replacement does not alter the burner control sequence logic, so existing gas valve wiring and pilot ignition timing remain unchanged — a significant advantage over platform migrations that require full sequence reprogramming.

For facilities managing multiple burner lines, building a critical-spares kit that includes one C7015A1076 detector, one RM7800 relay module, and one R7140 amplifier per burner train is a widely adopted maintenance strategy that minimizes mean time to repair (MTTR) during unplanned outages.

Retrofit Guidance FAQ

Q: Does replacing the C7015A1076 require any wiring changes?
A: No. The C7015A1076 uses the same connector and wiring harness as earlier C7015 suffix variants. Disconnect the old detector, inspect the sight pipe for contamination or damage, and reconnect the new unit. No panel rewiring is required.

Q: Is any PLC or burner management controller reprogramming needed after replacement?
A: No reprogramming is required. The C7015A1076 outputs the same UV flame relay signal as its predecessors. The RM7800 or R4140 series flame safeguard control will recognize the signal without any parameter changes.

Q: What communication protocol does the C7015A1076 use?
A: The C7015A1076 operates on a hardwired relay/analog signal interface — there is no fieldbus or digital communication protocol involved. It is fully compatible with all standard Honeywell C7015 Series burner management wiring schemes.

Q: Will the C7015A1076 fit in the existing sight pipe and mounting bracket?
A: Yes. The C7015A1076 retains the same physical form factor and threaded sight-pipe interface as all C7015 series detectors. No mechanical modifications to the burner head, sight pipe, or control cabinet are required.

Q: How do I verify the replacement is working correctly after installation?
A: After installation, perform a standard burner light-off sequence and confirm the flame relay closes within the manufacturer’s specified response time. Use the S7800A display module or a multimeter on the flame signal terminals to verify UV signal strength. A flame simulation test (using a UV test lamp) can also confirm detector response before live firing.

Q: Can the C7015A1076 replace discontinued C7015 suffix models no longer available from Honeywell?
A: In most cases, yes. The C7015A1076 is the current production suffix and is the recommended replacement for discontinued C7015A1001, C7015A1019, and C7015A1027 variants. Always confirm supply voltage compatibility before ordering.

Warranty Assurance

Every C7015A1076 UV flame detector shipped from TOPNLMS carries a 12-month warranty covering manufacturing defects, UV sensing element failure, and output signal anomalies under normal operating conditions. Our pre-shipment inspection protocol includes visual examination of the UV sensing window, connector pin integrity check, and functional response verification before each unit is packed for dispatch.

In the event of a warranty claim, TOPNLMS provides direct replacement support with priority processing for customers experiencing active production downtime. Our technical team is available to assist with installation verification, fault diagnosis, and compatibility confirmation via email or phone. Replacement units for confirmed warranty cases are dispatched within 3 business days of claim approval.

We ship globally from our Xiamen warehouse, with standard lead times of 3–7 business days for most destinations. Express shipping options are available for urgent replacement requirements. All units are packed in anti-static, shock-resistant packaging appropriate for sensitive electronic components.

For procurement teams requiring documentation, we can provide product datasheets, test records, and commercial invoices upon request. Bulk orders for critical-spares programs are welcome, and volume pricing is available for qualified industrial buyers.
