Honeywell C7061A1020 Original Industrial Spare C7061 Compatible

Product Overview

Honeywell C7061A1020 Original Industrial Spare C7061 Compatible: System Stability and Industrial Spare Maintenance Value

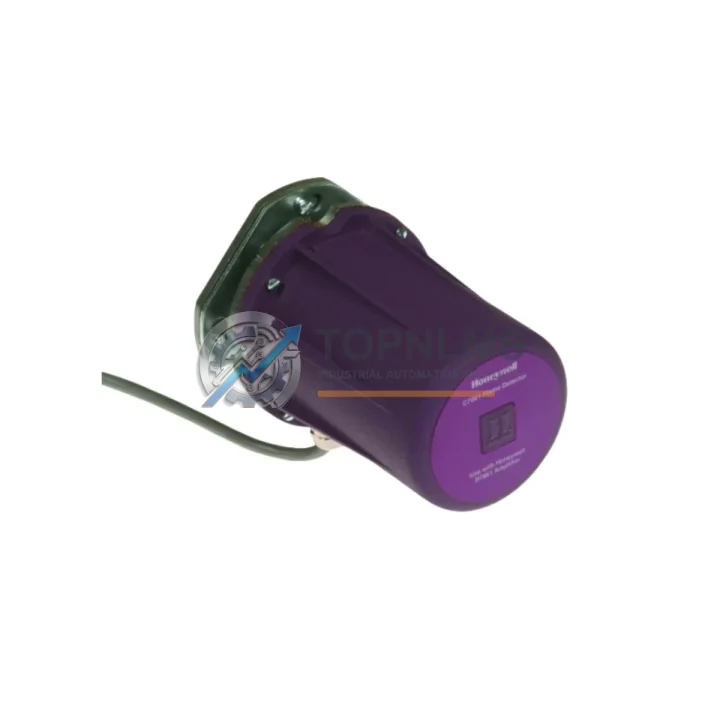

In industrial combustion control systems, the flame detector is the most critical safety-sensing component in the burner management loop. The Honeywell C7061A1020 is an original UV flame detector from Honeywell’s proven C7061 Series, engineered for reliable ultraviolet flame sensing across a wide range of industrial burner applications — including gas-fired boilers, process heaters, kilns, and thermal oxidizers. Operating on dual voltage (120V / 230V AC), this detector integrates directly with Honeywell’s R4343, R7847, RM7800, and S7800 burner control relay families, making it a direct, plug-compatible replacement for aging or failed units in existing installations.

For maintenance engineers and plant reliability teams, sourcing a verified original spare for a flame detector is not a routine procurement decision — it is a system stability decision. A failed or degraded flame detector can trigger nuisance shutdowns, prevent burner ignition, or — in worst-case scenarios — allow an unsafe condition to go undetected. Keeping a certified C7061A1020 in your on-site spare parts inventory eliminates the risk of extended downtime caused by lead-time delays on critical safety components.

Critical Technical Specs Table

Preventive Maintenance Strategy

A UV flame detector does not operate in isolation. It is one node in a tightly coupled burner management system, and its reliability depends on the health of every upstream and downstream component in the combustion control loop. When scheduling a planned maintenance window or responding to an unplanned burner shutdown, experienced maintenance teams know that replacing only the failed component is rarely sufficient — a thorough inspection of the entire burner control cabinet is essential to prevent repeat failures.

When replacing or inspecting the C7061A1020, it is standard practice to simultaneously verify the condition of the Honeywell R7847C1023 or R7847A1042 flame amplifier, which processes the UV signal from the detector and drives the burner relay. A degraded amplifier can cause intermittent flame signal loss even with a new detector installed. Similarly, the Honeywell RM7800L1012 or RM7800E1014 burner control module should be checked for fault history and relay contact wear — these modules are the brain of the burner management system and are frequently overlooked during detector-only replacements.

The sight tube and mounting flange assembly should be inspected for soot accumulation, lens fouling, or mechanical misalignment, as UV detectors are highly sensitive to optical path obstructions. If the installation uses a C7012 or C7027 series flame scanner in parallel for redundancy, both units should be tested simultaneously during any scheduled outage. Wiring integrity between the detector and the amplifier — particularly the Q7800A or Q7800B wiring subbase — should be verified for insulation breakdown, loose terminals, and correct polarity.

Beyond the flame detection circuit itself, a comprehensive burner cabinet inspection should include the Honeywell V4055 or V4062 gas valve actuator for seat wear and response time, the C6097 or C6098 pressure switches for setpoint drift, and the S7800A1001 display module for stored fault codes that may indicate intermittent issues not yet causing hard shutdowns. For facilities running multiple burner trains, maintaining a standardized spare parts kit — including at least one C7061A1020, one flame amplifier, and one set of ignition electrodes — is a recognized best practice for minimizing mean time to repair (MTTR) during unplanned outages.

Facilities with aging burner management systems that still rely on R4343E or R4343B relay-based controls should also evaluate whether a planned migration to the RM7800 series is appropriate during the next major overhaul, as older relay-based systems have increasingly limited spare parts availability and reduced diagnostic capability compared to current-generation microprocessor-based controls.

Strategic Replacement Solutions

The C7061A1020 is a direct OEM replacement for earlier C7061 series variants, including the C7061A1004 and C7061A1012, which share the same UV tube technology, mounting footprint, and electrical interface. This cross-compatibility means that facilities upgrading from older C7061 variants can install the C7061A1020 without any wiring modifications, sight tube changes, or amplifier reconfiguration — a significant advantage in time-critical maintenance scenarios where minimizing burner downtime is the primary objective.

For plants operating legacy Honeywell burner management systems that were originally commissioned in the 1990s or early 2000s, the C7061A1020 provides a cost-effective path to extending system life without committing to a full burner management system upgrade. By maintaining original system architecture while replacing only the worn sensing element, maintenance teams can defer capital expenditure while restoring full system reliability and safety compliance.

In multi-burner facilities — such as those operating parallel boiler trains, regenerative thermal oxidizers (RTOs), or multi-zone process heaters — standardizing on the C7061A1020 across all burner positions simplifies spare parts inventory management, reduces the risk of incorrect part substitution during emergency repairs, and enables cross-trained technicians to perform replacements confidently without consulting equipment-specific documentation for each unit.

All units supplied by TOPNLMS are sourced as original Honeywell components, individually tested for UV sensitivity and relay output function prior to shipment, and shipped with full traceability documentation. Standard lead time is 3–7 business days for in-stock units, with expedited shipping available for urgent maintenance requirements.

Support FAQ

Q1: Is the C7061A1020 compatible with my existing Honeywell RM7800 or R7847 burner control system?
Yes. The C7061A1020 is designed for direct integration with Honeywell’s R7847, RM7800L, RM7800E, and R4343 series burner control amplifiers and relay modules. No wiring or configuration changes are required when replacing an existing C7061 series detector. Always verify the sight tube alignment and amplifier sensitivity setting after installation.

Q2: What is the recommended replacement interval for the C7061A1020 UV flame detector?
Honeywell recommends periodic inspection of UV flame detectors as part of annual burner maintenance. The UV sensing tube has a finite service life that degrades with accumulated operating hours and exposure to high-temperature environments. In high-cycle or continuous-duty applications, proactive replacement every 3–5 years — or upon any indication of reduced flame signal strength — is considered best practice. Maintaining one spare unit on-site eliminates procurement lead time during unplanned replacements.

Q3: How is the C7061A1020 tested before shipment, and what does the 12-month warranty cover?
Every C7061A1020 unit supplied by TOPNLMS undergoes functional testing of UV sensitivity response and relay output signal prior to dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units showing physical damage from improper installation, overvoltage, or exposure to conditions outside the rated specification are not covered. Warranty claims are supported with replacement or full refund at TOPNLMS’s discretion.

Q4: Can I use the C7061A1020 to replace a C7061A1004 or C7061A1012 without modifying my burner control panel?
Yes. The C7061A1020 is backward-compatible with earlier C7061A sub-variants. The mounting flange, electrical connector, and signal output characteristics are identical across the C7061A series. No panel modifications, amplifier recalibration, or wiring changes are required. Confirm the sight tube thread size and orientation match your existing installation before ordering if your system was originally commissioned with a non-standard sight tube adapter.
