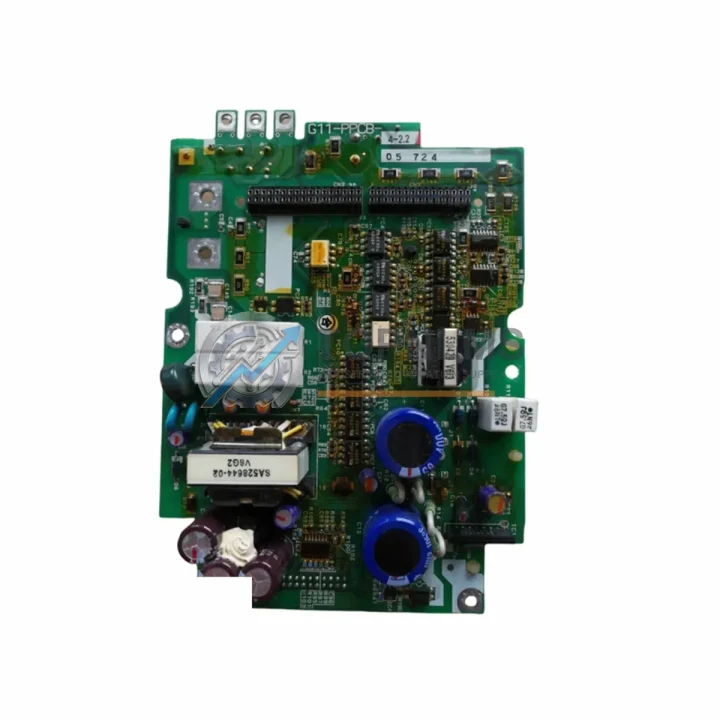

FUJI G11-PPCB-4-2.2 SA528530-06 Ruggedized VFD Power PCB

Product Overview

FUJI G11-PPCB-4-2.2 SA528530-06 Ruggedized VFD Power PCB: Industrial Resilience for Harsh Environments

The FUJI G11-PPCB-4-2.2 SA528530-06 is the original power PCB assembly designed exclusively for the FUJI Frenic-G11 series 2.2 kW variable frequency drive. Engineered to FUJI Electric’s exacting industrial standards, this board governs the core power conversion and gate-drive functions of the Frenic-G11 inverter — the same drive platform trusted in continuous-production lines, heavy-process machinery, and safety-critical automation systems worldwide. Whether you are executing a planned maintenance replacement or responding to an unplanned drive fault, the SA528530-06 restores full inverter functionality with zero compromise on performance or safety.

Industrial environments impose relentless stress on power electronics. Elevated ambient temperatures, condensation, airborne particulate, mechanical vibration, and conducted electromagnetic interference are daily realities in steel mills, chemical plants, water treatment facilities, and mining operations. The G11-PPCB-4-2.2 is built to withstand these conditions. Its conformal-coated PCB substrate resists moisture ingress and corrosive atmospheres, while the board’s layout minimises susceptibility to radiated EMI from adjacent motor cables, contactors, and high-frequency switching devices — a critical advantage in dense control-cabinet installations where the Frenic-G11 drive often operates alongside FUJI FALDIC servo amplifiers, FUJI Frenic-Eco fan-and-pump drives, and third-party PLC racks.

Rugged Specifications Table

Comprehensive Protection Solutions

The Frenic-G11 drive is rarely deployed in isolation. In a typical motor control centre or process automation cabinet, the SA528530-06 power board works in concert with a broader ecosystem of protection and control hardware. The FUJI Frenic-G11 control PCB (G11-CPCB) handles parameter storage and communication, while the FUJI Frenic-G11 gate driver board (G11-GDPCB) translates PWM signals into IGBT switching commands — both boards must be in good health for the drive to operate safely. When diagnosing a drive fault, technicians typically inspect the power PCB alongside the FUJI Frenic-G11 capacitor bank assembly and the FUJI Frenic-G11 fan assembly, as thermal and ripple-related failures often occur together.

At the system level, the Frenic-G11 drive is commonly supervised by a FUJI MICREX-SX series PLC or integrated into a FUJI MICREX-F series programmable controller rack via a dedicated communication module. Safety interlocking is frequently handled by a FUJI Electric safety relay module or a third-party safety PLC that monitors drive ready signals and emergency-stop circuits. On the power-supply side, the drive’s 24 V control circuit is typically fed from a FUJI Electric PSR series DIN-rail power supply, and upstream motor protection is provided by a FUJI Electric BW series moulded-case circuit breaker. Replacing the G11-PPCB-4-2.2 SA528530-06 restores the entire drive’s power conversion chain without disturbing any of these upstream or downstream components, minimising recommissioning time and reducing the risk of introducing new faults.

For installations where the Frenic-G11 communicates over RS-485 Modbus or FUJI’s proprietary SX-bus, the FUJI OPC-G11S communication option card mounts directly to the drive’s option port and is unaffected by a power-board replacement. This means that after fitting the SA528530-06, the drive resumes network communication with the host SCADA or DCS without requiring parameter re-entry — a significant advantage in continuous-process plants where downtime is measured in production losses per minute.

Application in Critical Infrastructure

The FUJI Frenic-G11 platform — and by extension the G11-PPCB-4-2.2 SA528530-06 — is deployed across the most demanding sectors of industrial infrastructure.

In oil and gas processing, Frenic-G11 drives control cooling-water pumps, gas-compression auxiliary motors, and HVAC systems within classified hazardous areas. The power PCB’s robust design ensures that even in environments with elevated hydrogen sulphide concentrations and wide temperature swings, the drive maintains stable DC-bus regulation and clean gate-drive signals to the IGBT module.

In mining and mineral processing, the drive manages conveyor belt motors, slurry pumps, and ventilation fans in tunnels where vibration, coal dust, and high humidity are constant. A failed power PCB in this context can halt an entire production section; having a verified SA528530-06 spare on the shelf reduces mean time to repair from days to hours.

In municipal water and wastewater treatment, Frenic-G11 drives run submersible pump motors and aeration blowers around the clock. The SA528530-06 supports the drive’s soft-start and energy-saving functions, which are essential for reducing water-hammer stress on pipework and cutting electricity costs in 24/7 operations.

In steel and metallurgy, the drive is used on rolling-mill auxiliary drives, cooling-bed fans, and fume-extraction systems. The high ambient temperatures and intense electromagnetic fields generated by arc furnaces and induction heaters make the power PCB’s EMI-hardened design especially valuable.

In power generation and utilities, the Frenic-G11 controls boiler feed-water pump auxiliaries and cooling-tower fans. Regulatory requirements for continuous availability mean that spare parts must be pre-qualified and immediately deployable — exactly the assurance that a tested, warranted SA528530-06 from TOPNLMS provides.

Security & Quality FAQ

Q1: What warranty coverage is provided with the G11-PPCB-4-2.2 SA528530-06?
Every SA528530-06 unit shipped by TOPNLMS carries a 12-month warranty from the date of shipment. If the board develops a verified functional defect within this period under normal operating conditions, we will arrange a replacement or full refund. Warranty claims are processed directly — no third-party intermediaries.

Q2: How is each board tested before dispatch?
All power PCB assemblies undergo a multi-point inspection protocol before packaging: visual inspection for component damage, solder-joint integrity check, insulation resistance measurement, and where test fixtures are available, powered functional verification of the gate-drive output signals and auxiliary power rails. Units that do not pass all checkpoints are quarantined and not offered for sale.

Q3: Is this board compatible with all Frenic-G11 2.2 kW variants?
The SA528530-06 is the designated power PCB for the FUJI Frenic-G11 400 V class, 2.2 kW frame. It is not interchangeable with 200 V class units or other power ratings. If you are unsure of your drive’s exact model code, please share the full nameplate data (model number, voltage class, and kW rating) with our technical team before ordering — we will confirm compatibility at no charge.

Q4: Can TOPNLMS support long-term or repeat procurement of this part?
Yes. TOPNLMS maintains a dedicated inventory of Frenic-G11 series spare parts to support customers with multi-site installations and planned maintenance programmes. We can provide quotations for blanket orders, advise on recommended stocking quantities based on your installed base, and flag availability changes proactively. For OEM-discontinued or end-of-life parts, we source from verified surplus channels and apply the same inspection and warranty standards as new stock.
