FUJI SA531121-03 E11-C4PCB Original FALDIC-W Compatible

Product Overview

FUJI SA531121-03 E11-C4PCB Original FALDIC-W Compatible: Sustaining System Stability Through Precision Spare Parts

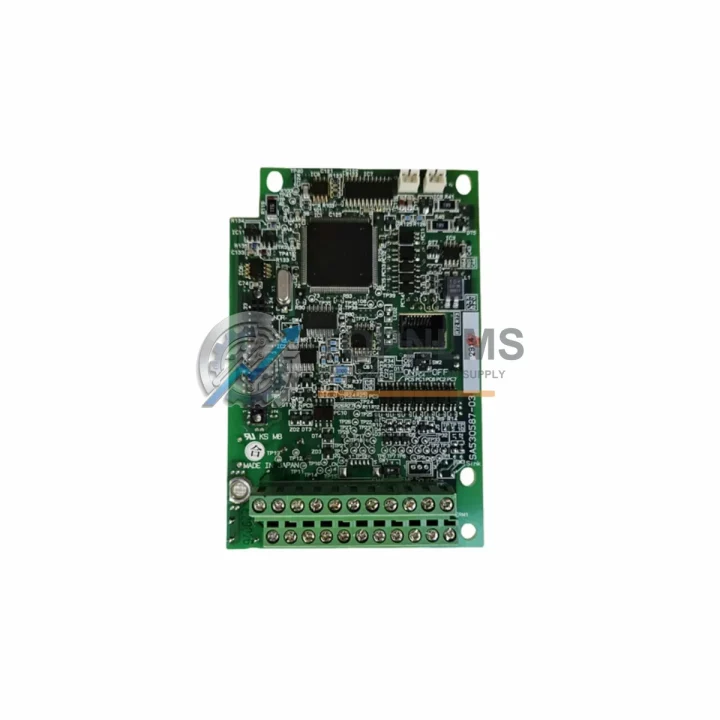

In high-demand industrial environments, servo drive reliability is not optional — it is the backbone of production continuity. The FUJI Electric SA531121-03 E11-C4PCB is the original control board designed for the FALDIC-W Series servo drive system, one of FUJI Electric’s most widely deployed motion control platforms across packaging machinery, CNC equipment, semiconductor handling, and precision assembly lines. When this board fails, the entire servo axis goes offline, halting production and triggering costly unplanned downtime. Sourcing a verified original spare — tested, stocked, and ready to ship — is the fastest path back to full operation.

At TOPNLMS, we maintain ready inventory of the SA531121-03 E11-C4PCB to support maintenance engineers, MRO procurement teams, and OEM service departments who cannot afford delays. Every unit undergoes pre-shipment functional verification, is packaged with anti-static protection, and ships with a 12-month replacement warranty. Whether you are responding to an emergency breakdown or building a strategic spare parts buffer, this board is available for immediate dispatch.

Critical Technical Specs Table

Preventive Maintenance Strategy

Experienced maintenance engineers know that a servo drive failure rarely occurs in isolation. The SA531121-03 E11-C4PCB sits at the heart of the FALDIC-W drive’s control architecture, and its failure is often preceded — or accompanied — by stress on surrounding components. A disciplined preventive maintenance strategy means inspecting and, where appropriate, pre-stocking the components most likely to degrade alongside the control board.

During a scheduled shutdown or corrective maintenance visit, it is advisable to simultaneously inspect the FALDIC-W power module (the drive’s internal power supply section), which shares the same thermal environment as the control board. Capacitor aging in the power stage frequently accelerates control board stress. Similarly, the encoder feedback cable assembly connecting the servo motor to the drive should be checked for insulation wear, connector oxidation, and signal integrity — a degraded encoder signal is one of the most common root causes of control board faults in FALDIC-W systems.

The regenerative resistor unit associated with the FALDIC-W drive should also be part of any inspection cycle. Overloaded or failed regenerative resistors cause DC bus overvoltage events that directly stress the control board’s protection circuits. In multi-axis systems, the FUJI MICREX-SX or MICREX-F series PLC positioning module — which issues pulse train commands to the FALDIC-W drive — should be verified for firmware compatibility and output signal quality, as command signal anomalies can cause erratic board behavior that mimics hardware failure.

At the cabinet level, inspect the 24 VDC control power supply feeding the drive’s logic circuits. Voltage ripple or transient dips from an aging DIN-rail power supply unit are a frequently overlooked cause of intermittent control board resets. Terminal blocks on the drive’s I/O connector strip — particularly those handling enable signals, alarm outputs, and speed reference inputs — should be checked for loose connections and corrosion. In environments with high vibration, spring-clamp terminal blocks are strongly preferred over screw-type for long-term reliability.

For facilities running multiple FALDIC-W axes, maintaining at least one SA531121-03 E11-C4PCB as a cold spare in the maintenance storeroom is a recognized best practice. Pairing this with a spare FALDIC-W front panel operator keypad and a set of motor power cables (U/V/W phase leads with appropriate connector terminations) ensures that a complete drive restoration can be completed within a single shift, without waiting for international freight.

Strategic Replacement Solutions

The SA531121-03 E11-C4PCB is a direct replacement for the original control board in any FALDIC-W series drive where the board has failed due to component aging, overvoltage damage, firmware corruption, or physical damage from moisture or contamination. Because this is a genuine original board — not a third-party reproduction — it retains full compatibility with the drive’s existing firmware, parameter memory, and communication configuration. In most cases, replacement requires no re-parameterization of the drive: the existing parameter set stored in the drive’s non-volatile memory remains intact after board swap.

For maintenance teams managing aging FALDIC-W installations, this board extends the operational life of existing servo drives without requiring a full drive replacement or motor re-sizing. This is particularly valuable in systems where the servo motor, mechanical coupling, and machine frame have been optimized for the FALDIC-W’s specific torque and speed characteristics — replacing only the failed control board preserves that optimization at a fraction of the cost of a complete drive upgrade.

Where a full drive replacement is eventually planned, the SA531121-03 E11-C4PCB serves as a bridge solution: restoring the failed axis to operation immediately while procurement evaluates next-generation replacement options such as the FUJI ALPHA5 Smart series, which offers enhanced communication options and improved energy efficiency. This staged approach minimizes production disruption and allows engineering teams to plan the migration on their own schedule rather than under emergency conditions.
