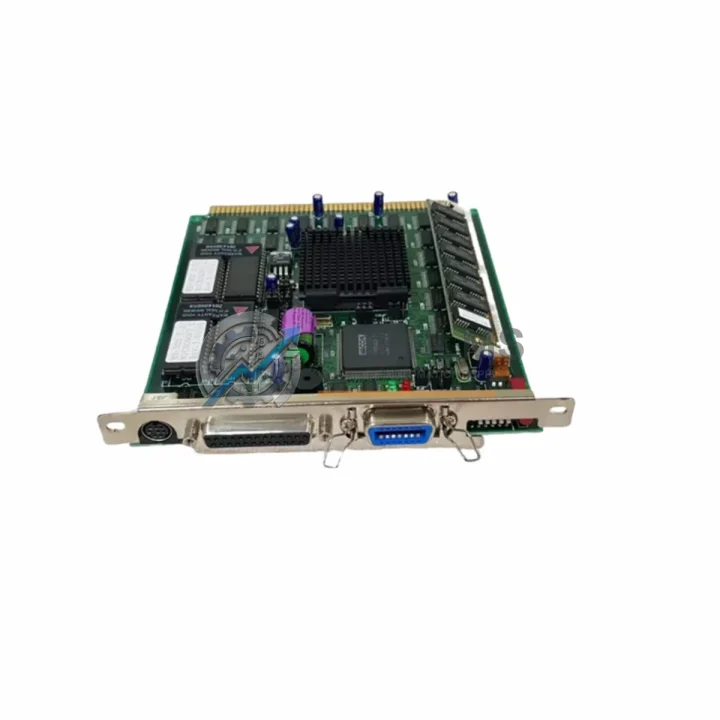

FUJI PRTM-040-MIG15Q901H Original Industrial Spare FRENIC Compatible

Product Overview

FUJI PRTM-040-MIG15Q901H Original Industrial Spare FRENIC Compatible: System Stability and Industrial Spare Maintenance Value

The FUJI Electric PRTM-040-MIG15Q901H is an original inverter control board designed for the FRENIC Series variable frequency drive platform — one of the most widely deployed inverter families in Asian and global industrial automation environments. For maintenance engineers managing aging production lines, this board represents a critical spare that directly determines whether a drive system can be restored to full operation within hours rather than days. Sourced from original FUJI Electric manufacturing channels, the PRTM-040-MIG15Q901H is tested prior to shipment and backed by a 12-month warranty, giving procurement and maintenance teams the confidence to stock it as a frontline replacement component.

In high-availability manufacturing environments — including injection molding, textile machinery, HVAC systems, water treatment, and conveyor-driven assembly lines — inverter control boards are among the most failure-prone components due to their exposure to heat cycling, vibration, and voltage transients. When a FRENIC Series drive trips and cannot be reset, the control board is typically the first subsystem to inspect. Having the PRTM-040-MIG15Q901H available in your on-site spare parts cabinet eliminates the lead time risk that turns a two-hour repair into a two-week production loss.

Critical Technical Specs Table

Preventive Maintenance Strategy

A FRENIC Series inverter drive is not a standalone component — it operates as part of an integrated electrical control system. When scheduling a planned maintenance window or responding to an unplanned drive fault, experienced maintenance engineers know that replacing only the failed board without inspecting the surrounding system is a recipe for repeat failures. The PRTM-040-MIG15Q901H control board replacement should be treated as an opportunity to audit the entire drive enclosure and associated electrical circuit.

Begin with the DC bus capacitors and power module (IGBT) — these are the most common co-failure components when a control board fails due to overvoltage or short-circuit events. If the IGBT module shows signs of thermal stress or carbon tracking, it should be replaced alongside the control board. Next, inspect the gate driver board and rectifier module, which interface directly with the control board and can sustain damage from the same fault event.

Check the cooling fan assembly — FRENIC drives rely on forced-air cooling, and a degraded fan is a leading cause of thermal runaway that destroys control boards prematurely. Fan replacement is low-cost insurance when performing a board swap. While the enclosure is open, inspect the EMC filter module and input reactor for signs of insulation breakdown or loose terminal connections, as these protect the drive from upstream power quality issues.

On the signal side, verify the integrity of the PG (pulse generator) feedback card and any installed option communication cards — such as PROFIBUS, DeviceNet, or Modbus RTU interface modules — since connector corrosion or vibration-induced micro-fractures in these cards can cause intermittent faults that are misdiagnosed as control board failures. Inspect the terminal block assembly and all control wiring for insulation wear, particularly in high-vibration environments.

Finally, review the keypad/operator panel and its ribbon cable connection to the control board. A damaged ribbon cable can cause parameter loss or display faults that mimic deeper board failures. Stocking a spare keypad panel alongside the PRTM-040-MIG15Q901H ensures that your maintenance team can isolate faults quickly during a live troubleshooting session without waiting for additional parts.

For facilities running multiple FRENIC drives across production zones, a structured spare parts kit — including the control board, a cooling fan, a gate driver board, and a set of terminal block covers — represents a minimal investment relative to the cost of a single unplanned production stoppage.

Strategic Replacement Solutions

The PRTM-040-MIG15Q901H is a direct OEM replacement for the original control board installed in compatible FRENIC Series drives. Unlike third-party aftermarket boards, which may require parameter re-mapping or firmware compatibility verification, the original FUJI Electric board installs into the existing drive chassis without modification. All original parameter settings stored in the drive’s EEPROM are preserved during a board swap, provided the replacement procedure follows FUJI Electric’s standard service guidelines.

For facilities that have been operating FRENIC drives for more than five years, the risk of control board failure increases significantly due to electrolytic capacitor aging on the PCB itself. Proactive replacement of the control board during a scheduled annual shutdown — rather than waiting for a fault condition — can extend the operational life of the entire drive unit by three to five years, deferring the capital expenditure of a full drive replacement. This is particularly valuable in legacy systems where the drive is integrated into a custom control cabinet and a full drive replacement would require significant rewiring and commissioning time.

When a FRENIC drive is being decommissioned or upgraded, the PRTM-040-MIG15Q901H from the retired unit can serve as a tested spare for remaining drives in the same series, provided it passes a bench-level functional test. This circular spare parts strategy is widely used in large manufacturing facilities to maximize the value of existing inventory and reduce procurement costs.

Support FAQ

Q1: Is the PRTM-040-MIG15Q901H compatible with all FRENIC Series drives?
The PRTM-040-MIG15Q901H is designed for specific models within the FRENIC Series platform. Compatibility depends on the drive’s power rating, firmware version, and hardware revision. Please provide your drive’s full model number and nameplate data when placing an order so our technical team can confirm compatibility before shipment.

Q2: What testing is performed before shipment?
Each PRTM-040-MIG15Q901H unit undergoes a functional test prior to dispatch to verify board-level operation. Units that do not pass testing are not shipped. A test report can be provided upon request for quality-critical procurement processes.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage events, or operation outside the specified environmental parameters. Warranty claims are processed promptly with replacement or refund options.

Q4: How quickly can the board be shipped, and what is the lead time for out-of-stock units?
In-stock units are typically dispatched within 1–3 business days. For units requiring sourcing, lead times vary by availability; contact us at [email protected] or +86 18359293191 for a real-time stock and lead time confirmation before placing your order.
