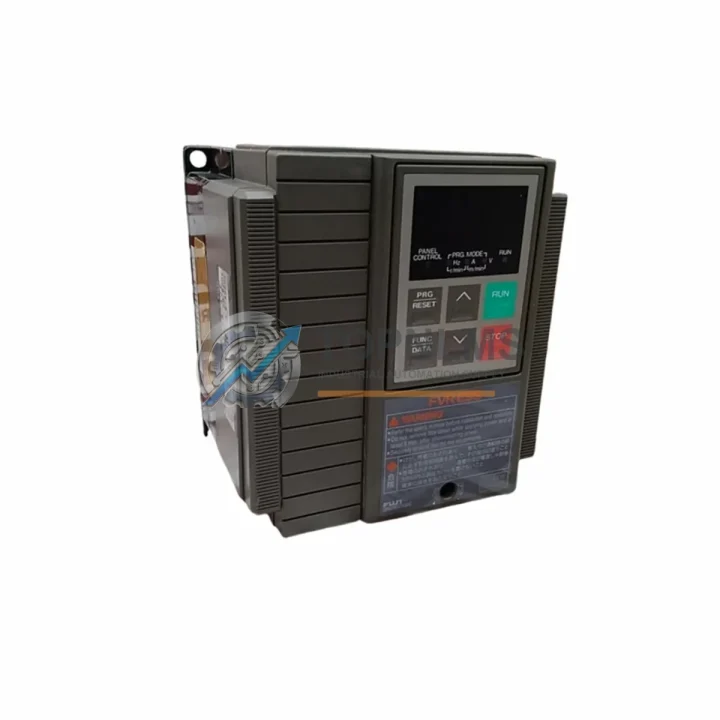

FUJI FVR0.75E9S-4JE Replacement/Upgrade for FVR-E9S

Product Overview

FUJI FVR0.75E9S-4JE Replacement/Upgrade Solution for FVR-E9S: Seamless Transition from Legacy Drive Systems

Upgrading or replacing a legacy variable frequency drive in an active production environment demands more than a simple part swap — it requires verified electrical compatibility, protocol continuity, and physical fit within existing control cabinet layouts. The FUJI FVR0.75E9S-4JE is a 0.75 kW, three-phase 400 V AC variable frequency drive from FUJI Electric’s FVR-E9S series, engineered to serve as a direct replacement or modernization upgrade for aging inverter installations across manufacturing, HVAC, water treatment, and general industrial automation systems.

Whether your facility is retiring a discontinued FUJI FVR-E series, FVR-C9S, or FVR-G9S drive, or migrating away from a third-party inverter platform, the FVR0.75E9S-4JE provides a well-documented migration path that minimizes rewiring effort, preserves existing parameter logic where applicable, and fits within standard DIN-rail or panel-mount enclosures already in use.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful drive migration rarely involves the inverter alone. When replacing the FVR0.75E9S-4JE or upgrading from a legacy FVR-C9S or FVR-G9S platform, field engineers typically address several surrounding components in the same service window to ensure system-wide reliability.

For communication continuity, the OPC-E1-RS Modbus RTU communication option card is the standard add-on for FVR-E9S drives integrating into RS-485 networks managed by a FUJI MICREX-SX or MICREX-F series PLC. If the upstream controller is a FUJI NP1 series PLC or a third-party Modbus master, the same card enables transparent protocol compatibility without gateway hardware.

On the power supply side, facilities replacing multiple drives in a single cabinet often simultaneously service the 24 V DC control power supply module feeding the drive’s control terminals and any connected I/O expansion blocks. Ensuring the control supply is within specification prevents nuisance trips during commissioning of the replacement unit.

Wiring integrity is another common migration concern. When the existing motor cable and terminal ferrules are reused, engineers typically inspect and replace control terminal wiring ferrules and shielded signal cables between the drive and the upstream PLC analog output module — particularly the 0–10 V or 4–20 mA frequency reference signal wiring. For FUJI PLC systems, the NP1AD04 analog input module or equivalent is the typical signal source for speed reference commands.

In multi-drive panel installations, the FUJI FVR-E9S series braking resistor unit and associated DC bus reactor may also be evaluated during the upgrade. These components are often shared across drives on a common DC bus and should be verified for compatibility with the replacement unit’s braking chopper specifications.

For facilities running SCADA or HMI supervision, the FUJI UG series HMI or a third-party touch panel connected via RS-485 will continue to communicate with the FVR0.75E9S-4JE using the same Modbus register map as the predecessor FVR-E9S units, minimizing HMI screen and tag reconfiguration effort.

Finally, where the legacy drive was mounted using a DIN-rail adapter bracket or a custom panel cutout, the FVR-E9S series maintains a consistent mechanical envelope across the 0.75 kW to 2.2 kW power range, allowing existing mounting hardware and cable entry points to be reused without cabinet rework.

Retrofit Guidance FAQ

Q: Can I reuse the existing motor and control wiring from my old FVR-C9S-4JE?
A: In most cases, yes. The FVR-E9S series uses the same terminal designations (R/L1, S/L2, T/L3 for input; U, V, W for motor output; and standard control terminals 11, 12, 13, FWD, REV, CM). Verify your specific wiring diagram against the FVR0.75E9S-4JE instruction manual before energizing.

Q: Will my existing Modbus RTU program work without modification?
A: The FVR-E9S series maintains register address compatibility with earlier FVR-E9S revisions. If migrating from FVR-C9S or FVR-G9S, a register map comparison is recommended, as some function code addresses differ between series generations.

Q: Does the physical size allow a drop-in cabinet replacement?
A: The FVR0.75E9S-4JE shares the standard FVR-E9S 0.75 kW enclosure dimensions. For most panel installations previously housing a same-class FVR-C9S or FVR-E9S, no cabinet modification is required. Confirm clearance requirements for top and bottom ventilation per FUJI installation guidelines.

Q: How do I migrate drive parameters from the old unit?
A: If the old drive is still operational, use the keypad copy function to upload parameters to the keypad, then download to the new unit. If the old drive has failed, re-enter parameters manually using your site’s parameter record sheet. TOPNLMS recommends maintaining a printed parameter backup for all critical drives.

Q: What commissioning checks are required after installation?
A: Verify input voltage, motor nameplate data entry (rated current, frequency, poles), acceleration/deceleration ramp settings, and communication address configuration. Perform a no-load run before connecting the mechanical load. Confirm fault history is cleared and analog reference signal is within range.

Warranty Assurance

Every FUJI FVR0.75E9S-4JE unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-on testing, parameter initialization check, and visual inspection for transit damage. Units are shipped in original or equivalent protective packaging with desiccant to prevent moisture ingress during international transit.

In the event of a warranty claim, TOPNLMS provides replacement unit dispatch or repair coordination within the warranty period. Our technical support team is available to assist with installation queries, parameter configuration guidance, and fault code diagnosis to minimize your downtime. We maintain stock of FVR-E9S series drives across multiple power ratings to support rapid fulfillment for urgent replacement orders.

For procurement teams managing planned maintenance schedules or emergency spares inventory, TOPNLMS offers volume pricing and lead-time commitments for standing orders. Contact our sales team to discuss consignment stock arrangements or priority fulfillment agreements for critical drive applications.
