FUJI EP-3965A-C2 Replacement Solution for FUJI VFD Series

Product Overview

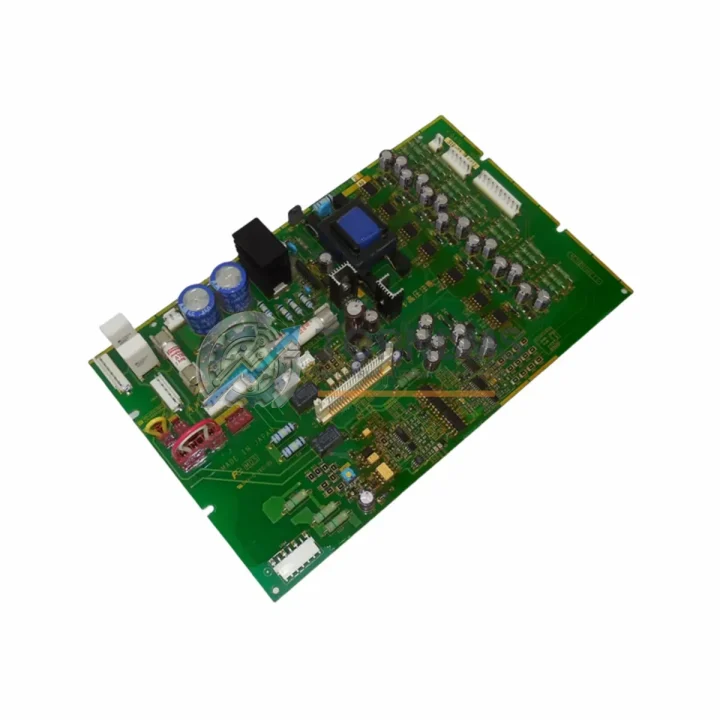

FUJI EP-3965A-C2 Replacement Solution for FUJI VFD Series: Seamless Transition & Smooth Migration

When a FUJI Electric variable frequency drive goes offline due to a failed gate drive PCB, every hour of unplanned downtime translates directly into production loss. The FUJI EP-3965A-C2 is the OEM power drive board — the inverter gate drive PCB — at the heart of FUJI’s mid-range VFD platform. Whether your existing unit has suffered IGBT trigger failure, over-voltage latch-up, or simply reached end-of-service life, this replacement board restores your drive to full operational specification without requiring a full inverter replacement or a costly control-system redesign.

Our stock of EP-3965A-C2 boards is sourced directly from FUJI Electric’s authorized supply chain, inspected at our Xiamen facility, and dispatched with full traceability documentation. Each unit undergoes functional power-on verification and insulation resistance testing before shipment, ensuring that what arrives on your site is ready to install — not a board that needs further bench work.

Compatibility Comparison Table

Seamless Upgrade Solutions

A gate drive board failure rarely occurs in isolation. In most FUJI VFD installations, the EP-3965A-C2 works in close coordination with several other drive-internal and panel-level components. During a planned retrofit or emergency replacement, experienced maintenance engineers typically audit the surrounding assembly at the same time to avoid repeat callouts.

The FUJI EP-3965A-C2 interfaces directly with the IGBT power module stack — commonly a FUJI 6MBP series or equivalent IGBT module — which should be inspected for gate-emitter leakage whenever the drive board is replaced. If the IGBT module shows degraded switching characteristics, replacing it alongside the EP-3965A-C2 eliminates the risk of the new board being damaged by a marginal power device on first power-up.

The drive’s control board — typically a FUJI EP-3827A or equivalent main CPU/control PCB depending on the FRENIC variant — communicates with the gate drive board via an internal ribbon interface. If the control board has logged persistent fault codes (OC, OV, GF) that did not clear after the gate drive board failed, the control board itself should be evaluated as a secondary replacement candidate. Keeping a spare FUJI control board on-site alongside the EP-3965A-C2 is a common practice in facilities running multiple FRENIC drives.

On the power supply side, the FUJI SMPS board (switch-mode power supply PCB, often designated EP-38xxA series depending on drive capacity) provides the isolated low-voltage rails that bias the gate drive circuitry. A degraded SMPS board can cause intermittent gate drive faults that mimic a failed EP-3965A-C2. Verifying SMPS output voltages before and after board replacement is a standard commissioning step.

For facilities migrating from older FUJI FRENIC-5000G11S or P11S drives to current FRENIC-Multi or FRENIC-Ace platforms, the EP-3965A-C2 replacement is often the first step in a phased upgrade. The next phase typically involves replacing the operator panel — a FUJI TP-E1 keypad or equivalent — and updating the parameter set to match the new control board’s firmware revision. In multi-drive installations, a FUJI OPC-G1-PDP or OPC-G1-CCL communication option card is often added at this stage to bring the drive onto a PROFIBUS-DP or CC-Link network, enabling centralized SCADA monitoring without rewiring the existing field I/O.

At the panel level, the drive is typically protected by a FUJI BW-series molded case circuit breaker (MCCB) and an AC reactor on the input side. Neither component is affected by the gate drive board replacement, but both should be inspected for contact wear and inductance degradation during any planned maintenance window. Similarly, the output side EMC filter — if installed — should be checked for capacitor leakage, as a failing filter can inject noise that stresses the new gate drive board.

For sites running FUJI FRENIC drives alongside Siemens SINAMICS or ABB ACS series drives on the same bus, the EP-3965A-C2 replacement restores the FUJI unit to full network participation without any changes to the PLC program or HMI tag mapping, provided the drive’s Modbus RTU or PROFIBUS node address is preserved during the swap — a step that takes less than two minutes using the FUJI keypad or a laptop running FUJI’s Loader software.

Retrofit Guidance FAQ

Q: Do I need to re-enter all drive parameters after replacing the EP-3965A-C2?
A: No. The EP-3965A-C2 is a power/gate drive board, not the parameter-storage board. All user parameters are stored on the control board (main CPU PCB). Replacing the gate drive board does not erase or alter any saved parameter data. Power up the drive after replacement and verify fault history is clear before resuming production.

Q: Is the EP-3965A-C2 compatible with both the G11S and P11S variants of the FRENIC-5000 series?
A: Yes, subject to capacity matching. The EP-3965A-C2 is rated for a specific power range within the FRENIC platform. Please confirm your drive’s kW rating and input voltage (200V or 400V class) against the board’s specification sheet before ordering. Our technical team can cross-reference your drive’s nameplate data if you provide the full drive model number.

Q: Can I replace the EP-3965A-C2 without removing the drive from the control cabinet?
A: In most FRENIC chassis configurations, the gate drive board is accessible after removing the drive’s front cover and disconnecting the DC bus capacitor bank. Full drive removal from the cabinet is not required in standard installations, but working clearance of at least 300mm in front of the drive is necessary. Always follow FUJI Electric’s lockout/tagout procedure and allow the DC bus to fully discharge (minimum 10 minutes after power-off) before touching any internal components.

Q: What communication protocols are supported after the board replacement?
A: The EP-3965A-C2 replacement does not affect the drive’s communication capability. Protocol support (Modbus RTU, PROFIBUS-DP, DeviceNet, CC-Link, or EtherNet/IP via option cards) is determined by the control board and any installed OPC option cards — none of which are disturbed by a gate drive board swap. Your PLC program, HMI screens, and SCADA tags remain fully operational.

Q: What if my drive shows an OC (overcurrent) fault immediately after installing the new board?
A: An immediate OC fault after gate drive board replacement typically indicates one of three causes: (1) the IGBT module has pre-existing damage and should be replaced, (2) the motor cable insulation has degraded and is causing a phase-to-ground fault, or (3) the acceleration ramp time is set too aggressively for the connected load. Check the IGBT module gate-emitter resistance with a multimeter before condemning the new board.

Q: How long does shipping take from Xiamen to my site?
A: Standard international express (DHL / FedEx) from our Xiamen warehouse typically delivers within 3–7 business days to most destinations in Southeast Asia, Europe, and North America. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. Customs clearance timelines vary by destination country — contact us for a country-specific estimate.

Warranty Assurance

Every FUJI EP-3965A-C2 shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, component failure under normal operating conditions, and any fault attributable to the board itself — not damage caused by incorrect installation, overvoltage events beyond the board’s rated specification, or physical mishandling after delivery.

Pre-shipment testing: Each board undergoes a multi-point inspection at our Xiamen facility including visual inspection for solder joint integrity, power-on functional verification, insulation resistance measurement, and gate signal output confirmation. Boards that do not pass all checkpoints are quarantined and not shipped.

Replacement support: If a board fails within the warranty period under covered conditions, TOPNLMS will dispatch a replacement unit within 2 business days of fault confirmation. We do not require the customer to return the failed unit before dispatching the replacement in most cases — reducing your total downtime to the transit time of the replacement shipment.

After-sales response: Our technical support team is reachable by email and phone during business hours (CST). For urgent production-down situations, we prioritize same-day response and can provide remote commissioning guidance to assist your on-site technician through the installation and power-up sequence.

Procurement assurance: All units are shipped with a packing list, inspection certificate, and traceability documentation. For customers requiring additional documentation (country-of-origin certificate, material safety data, or customs HS code confirmation), these are available on request at no additional charge.
