FUJI ELECTRIC 7500S-AZ Replacement/Upgrade Solution

Product Overview

FUJI ELECTRIC 7500S-AZ Replacement/Upgrade Solution: Seamless Transition from Legacy Servo Systems

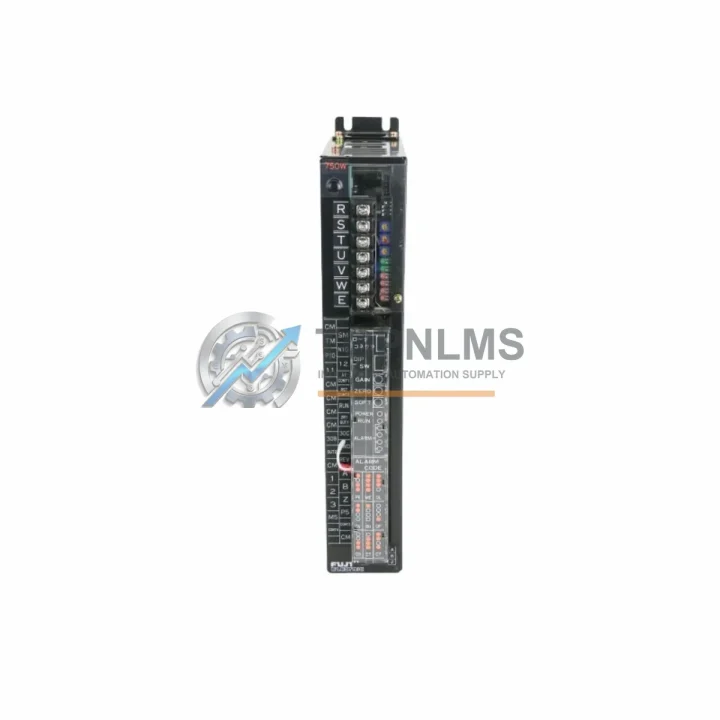

The FUJI ELECTRIC 7500S-AZ servo driver (full part number: 7500S-AZ-90130042A-80399-110M-PS) is a precision motion control component from the FUJI ELECTRIC 7500S Series, widely deployed in CNC machining centers, automated assembly lines, injection molding machines, and industrial robot axes across Asia-Pacific and global manufacturing facilities. As the 7500S Series approaches end-of-life and spare parts become increasingly scarce, plant engineers and procurement teams are actively seeking verified replacement and upgrade pathways that minimize downtime, preserve existing wiring infrastructure, and avoid costly reprogramming of upstream PLC or DCS controllers.

TOPNLMS maintains verified stock of the 7500S-AZ and its compatible upgrade equivalents, pre-tested and ready for immediate dispatch from our Xiamen warehouse. Every unit ships with a 12-month warranty and a full outgoing inspection report, giving your maintenance team the confidence to proceed with planned or emergency replacements.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 7500S-AZ replacement rarely involves the servo driver in isolation. In practice, the migration touches multiple layers of the motion control architecture. When our customers retrofit a legacy FUJI servo axis, the surrounding components that most commonly require attention include the servo motor encoder cable and feedback harness — particularly when upgrading from incremental to absolute encoder feedback — as well as the CN1 command connector and its associated terminal block adapter, which interfaces the driver to the host controller’s pulse output or analog command signal.

On the controller side, engineers working with FUJI MICREX-SX series PLCs or MICREX-F series programmable controllers typically find that the existing ladder or function block programs require no modification for a direct 7500S-AZ swap, since the command interface remains identical. However, if the upgrade path leads toward the FUJI ALPHA5 Smart series or ALPHA7 series servo drivers, a parameter migration session via FUJI’s SX-Programmer Expert or the dedicated servo setup software will be required to map gain settings, electronic gear ratios, and protective function thresholds from the old parameter file to the new platform.

Power supply integrity is another critical checkpoint. The 7500S-AZ draws its control power from the main AC bus, and in multi-axis cabinets it often shares a FUJI BU series regenerative braking unit or a shared DC bus configuration. Before commissioning the replacement unit, verify that the regenerative resistor capacity and the braking unit’s continuous rating still match the updated axis load profile — especially if motor capacity has changed during the upgrade.

For multi-axis systems, the replacement process typically proceeds axis by axis. Engineers often keep the FUJI MICREX-SX NP1PS-24 power supply module and the NP1L-RS4 RS-485 communication module in place, since these rack-mounted components are unaffected by the servo driver swap. The I/O wiring to the NP1X16 digital input module and NP1Y16 digital output module — which handle servo ready, alarm, and enable signals — remains unchanged for a direct replacement, eliminating the need to re-terminate field wiring.

In applications where the 7500S-AZ interfaces with a Mitsubishi MELSEC Q series or L series PLC via high-speed pulse output from a QD75 positioning module, the replacement driver’s pulse input specifications must be verified against the module’s differential line driver output. Our technical team can confirm compatibility before shipment upon request. Similarly, for Siemens S7-300 or S7-1500 systems using PROFIBUS DP or PROFINET I/O for drive coordination, the upgrade path to an EtherCAT-capable FUJI servo driver may offer significant cycle time improvements while reusing the existing motor and cable infrastructure.

HMI integration — whether via a FUJI V9 series touch panel, a Proface GP4000 series display, or a third-party SCADA system — is generally unaffected by the servo driver replacement, as alarm codes and status registers are mapped at the PLC level rather than directly from the drive. This means your operator interface screens, alarm histories, and trend displays continue to function without modification.

Retrofit Guidance FAQ

Q: Can I reuse my existing motor power cable and encoder cable?
A: Yes, for a direct 7500S-AZ replacement. The connector pinout and cable specifications are identical. If upgrading to a newer FUJI ALPHA5 or ALPHA7 series driver with a different encoder protocol, an encoder adapter or new feedback cable may be required — our team will advise before shipment.

Q: Do I need to modify my PLC program?
A: No, for a direct OEM replacement. The command interface (pulse/direction or ±10V analog) and I/O signal assignments are preserved. Parameter re-entry via the driver’s front panel keypad or RS-232C setup port will be required to restore your application-specific gain and protection settings.

Q: What communication protocols does the replacement unit support?
A: The 7500S-AZ supports RS-232C for parameter setup and optional RS-485 for multi-drop monitoring. If your application requires EtherCAT, PROFINET, or CC-Link IE Field, we can recommend a compatible upgrade model from the FUJI ALPHA5 Smart or ALPHA7 series that fits the same cabinet space.

Q: Will the replacement unit fit in my existing control cabinet without modification?
A: Yes. The 7500S-AZ replacement maintains the same physical envelope and DIN rail mounting pattern. No cabinet cutout modifications or additional mounting hardware are required.

Q: How do I handle the parameter backup from the failed unit?
A: If the original unit is still partially functional, parameters can be read out via the RS-232C port using FUJI’s servo setup software. If the unit has failed completely, our team can provide a baseline parameter template for the 7500S-AZ based on the motor model and application type, which you can then fine-tune during commissioning.

Q: What is the typical commissioning time for a direct replacement?
A: For a direct OEM replacement with parameters restored from backup, most engineers complete the swap and return to production within 2–4 hours. For an upgrade to a newer series requiring parameter migration and gain re-tuning, allow 4–8 hours for a single axis.

Warranty Assurance

Every FUJI ELECTRIC 7500S-AZ unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment inspection protocol includes power-on functional verification, encoder feedback signal integrity check, communication port validation, and visual inspection for connector and PCB condition. A signed inspection report accompanies each shipment.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 5 business days of fault confirmation, with return freight covered for verified manufacturing defects. Our after-sales response team is reachable via email and phone during business hours (UTC+8), and emergency technical support is available for critical production line situations.

For procurement teams, we can provide a proforma invoice, packing list, certificate of origin (Japan), and HS code documentation to support import clearance. Bulk orders of 3 or more units qualify for priority allocation from our bonded warehouse stock.

Stock is allocated on a first-confirmed basis. We recommend placing your order with a confirmed purchase order to secure availability, particularly for emergency maintenance scenarios where lead time is critical.
