FANUC A06B-6096-H106 Replacement for Alpha Series

Product Overview

FANUC A06B-6096-H106 Replacement for Alpha Series: Smooth Migration from Legacy Servo Systems

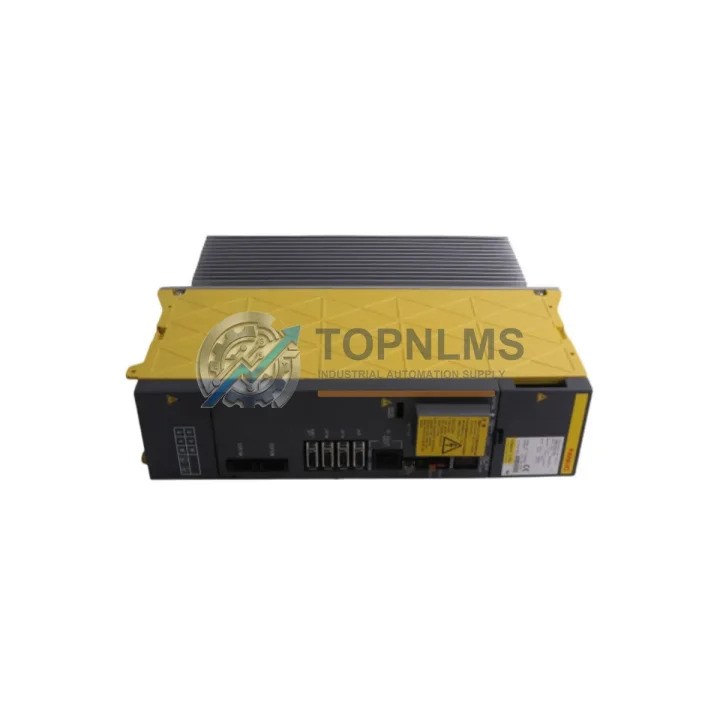

The FANUC A06B-6096-H106 is a servo amplifier control board designed for the FANUC Alpha Series servo drive platform, widely deployed across CNC machining centers, turning centers, and multi-axis industrial automation systems. As legacy servo amplifier units reach end-of-life or suffer field failures, engineering teams face mounting pressure to restore machine availability with minimal disruption to production schedules. This replacement solution is engineered to deliver a seamless, drop-in transition from failed or obsolete Alpha Series servo amplifier boards, preserving existing wiring harnesses, feedback signal routing, and FSSB (FANUC Serial Servo Bus) communication topology without requiring controller-side parameter restructuring.

The A06B-6096-H106 board is a direct functional replacement for the servo amplifier control PCB found in FANUC Alpha Series SVM (Servo Amplifier Module) units. It interfaces with the CNC controller — typically a FANUC Series 0i-C, 0i-D, 16i, 18i, or 21i — via the FSSB fiber-optic serial bus, maintaining the same axis address configuration and servo parameter set already resident in the CNC’s SRAM. This means that in most retrofit scenarios, no axis parameter re-entry is required: the technician replaces the board, powers up the drive, and the system resumes normal servo loop operation. The physical form factor matches the original Alpha Series SVM housing, so panel space, DIN rail mounting, and cabinet thermal management remain unchanged.

For facilities migrating from older FANUC Beta Series or early Alpha Series installations, the A06B-6096-H106 provides a clear upgrade path. Where the original system may have used a separate A06B-6058-H series or A06B-6079-H series amplifier board with discrete wiring to the power supply module (PSM), the replacement board retains the same DC bus connection interface and regenerative braking circuit compatibility. Engineers do not need to re-route the DC link cables or modify the PSM — typically an A06B-6087-H series or A06B-6110-H series power supply module — already installed in the control cabinet. The motor feedback cable, whether using a Pulsecoder A860-0309-T302 or similar serial encoder, connects to the same CN2 feedback connector pinout, eliminating the need for cable adapters or re-pinning.

In multi-axis CNC systems, the A06B-6096-H106 is commonly installed alongside companion axis amplifier boards such as the A06B-6096-H201 (dual-axis SVM) or A06B-6096-H301 (three-axis SVM), sharing the same FSSB chain and DC bus bar. When one axis board fails, replacing only the affected A06B-6096-H106 single-axis board restores full system functionality without disturbing the remaining axes. The FSSB chain is re-established automatically upon power-up, and the CNC controller re-detects the replaced amplifier at its assigned axis address. No fiber-optic cable re-routing or FSSB topology reconfiguration is required.

For facilities operating FANUC 0i-D or 30i/31i/32i series controllers with the newer FANUC αi Series (Alpha-i) amplifier platform, the A06B-6096-H106 serves as a bridge replacement for systems not yet ready for a full αi Series migration. It maintains compatibility with the existing FANUC Series 16i or 18i controller’s servo software, avoiding the need for a CNC software upgrade or hardware key change. This is particularly valuable in high-mix, low-volume manufacturing environments where machine downtime directly impacts delivery commitments.

From a commissioning standpoint, field engineers replacing the A06B-6096-H106 should verify the servo amplifier’s axis number setting (typically configured via rotary switch on the board) matches the original unit before power-up. The CNC’s servo parameter group — including position gain, velocity gain, and current loop parameters — remains stored in the controller’s SRAM and does not require re-entry. A standard servo alarm check via the FANUC SERVO GUIDE or the CNC’s diagnostic screen confirms correct re-initialization. In most cases, the entire board swap and recommissioning process is completed within two to four hours, significantly reducing unplanned downtime compared to waiting for OEM repair cycles.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful servo amplifier board replacement rarely involves a single component in isolation. In practice, the A06B-6096-H106 is deployed as part of a broader system restoration or upgrade effort that may involve several interconnected components. The Alpha Series power supply module — such as the A06B-6087-H126 or A06B-6110-H015 PSM — provides the regulated DC bus voltage that the servo amplifier board depends on; if the PSM shows signs of capacitor aging or voltage ripple, replacing it concurrently with the amplifier board eliminates a second unplanned outage. Similarly, the FANUC Pulsecoder A860-0309-T302 or A860-2000-T301 motor encoder, which feeds position and velocity feedback to the A06B-6096-H106 via the CN2 cable, should be inspected for battery backup integrity and signal cable condition during the same maintenance window.

In multi-axis systems, companion amplifier boards such as the A06B-6096-H201 dual-axis SVM or A06B-6096-H301 three-axis SVM share the same FSSB fiber-optic chain and DC bus bar as the A06B-6096-H106. Stocking a matched set of amplifier boards ensures that any axis can be restored without a second procurement cycle. The FSSB fiber-optic cables connecting the CNC controller’s servo card — typically an A20B-3300-0385 or A20B-2100-0180 axis control card — to the amplifier chain should also be verified for connector cleanliness and bend radius compliance, as contaminated fiber ends are a common source of FSSB communication alarms after board replacement.

For facilities that also operate FANUC spindle systems, the spindle amplifier module — such as the A06B-6102-H series or A06B-6134-H series SPM — shares the same control cabinet and power supply infrastructure. A coordinated inspection of the SPM during the servo board replacement reduces total cabinet downtime. Additionally, the FANUC I/O Link modules (A03B-0819-C001 or similar) that handle machine I/O signals between the CNC and the machine tool’s relay panel should be confirmed operational, as I/O Link communication faults can mask servo alarm root causes during post-replacement commissioning. Where the control system includes a FANUC Series 0i operator panel or a third-party HMI connected via RS-232 or Ethernet, verifying the communication path after board replacement ensures that the operator interface correctly reflects the restored axis status.

Retrofit Guidance FAQ

Q: Do I need to re-enter servo parameters after replacing the A06B-6096-H106?
A: No. Servo parameters (position gain, velocity gain, current loop settings, and axis-specific tuning data) are stored in the CNC controller’s SRAM battery-backed memory, not on the amplifier board itself. Replacing the board does not erase these parameters. After installation, perform a standard servo alarm check via the CNC diagnostic screen to confirm normal initialization.

Q: Is the wiring harness from the original unit reusable?
A: Yes. The A06B-6096-H106 replacement board uses the same connector layout as the original Alpha Series SVM board. The motor power cable (U/V/W phases), the Pulsecoder feedback cable (CN2), the DC bus bar connection, and the FSSB fiber-optic cable all connect to identical positions. No re-pinning or adapter cables are required.

Q: What CNC controllers are compatible with this board?
A: The A06B-6096-H106 is compatible with FANUC Series 0i-C, 0i-D, 16i, 18i, and 21i CNC controllers operating with the FANUC Alpha Series servo amplifier platform. It communicates via FSSB (FANUC Serial Servo Bus) fiber-optic protocol. It is not directly interchangeable with the newer αi Series (Alpha-i) amplifier boards used with 30i/31i/32i controllers without additional compatibility verification.

Q: Can this board be installed in the same physical space as the original?
A: Yes. The replacement board matches the original Alpha Series SVM form factor. No cabinet modification, additional DIN rail space, or thermal management changes are required. The board slots into the existing SVM housing.

Q: What if the FSSB alarm persists after board replacement?
A: First verify the axis number rotary switch on the new board matches the original setting. Then inspect the FSSB fiber-optic cable connectors for contamination or damage. Clean connectors with an appropriate fiber optic cleaning tool. If the alarm persists, check the CNC’s FSSB configuration screen to confirm the axis count and amplifier detection sequence matches the installed hardware.

Q: Is this board suitable for a system running 24/7 in a harsh industrial environment?
A: Yes. The A06B-6096-H106 is rated for continuous industrial duty. Prior to shipment, each unit undergoes functional testing. For environments with high vibration, elevated ambient temperature, or coolant mist exposure, ensure the control cabinet door seals and cooling fans are in good condition to maintain the amplifier’s operating temperature within FANUC’s specified range.

Warranty Assurance

Every A06B-6096-H106 servo amplifier control board shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to shipment, each unit is subject to functional inspection and verification testing to confirm correct operation of the servo control circuitry, feedback interface, and communication bus. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with a target response time of one business day. Customers are requested to document the fault symptom, CNC alarm code, and installation conditions to facilitate rapid diagnosis. Where a replacement unit is required, TOPNLMS will coordinate expedited shipment to minimize production impact. Warranty coverage applies to manufacturing defects and functional failures under normal operating conditions; it does not cover damage resulting from incorrect installation, overvoltage events, or physical impact.

TOPNLMS maintains stock of the A06B-6096-H106 and related Alpha Series components to support same-day or next-business-day dispatch for verified in-stock orders. Shipment is handled from our Xiamen facility with DHL Express, FedEx International Priority, or sea freight options depending on urgency and destination. A commercial invoice, packing list, and test report are included with each shipment to support customs clearance and incoming inspection at the customer’s facility.

For procurement inquiries, technical compatibility questions, or warranty claims, contact the TOPNLMS technical sales team directly.
