FANUC A06B-6130-H002 Ruggedized Servo Amplifier Module

Product Overview

FANUC A06B-6130-H002 Ruggedized Servo Amplifier Module: Industrial Resilience for Harsh Environments

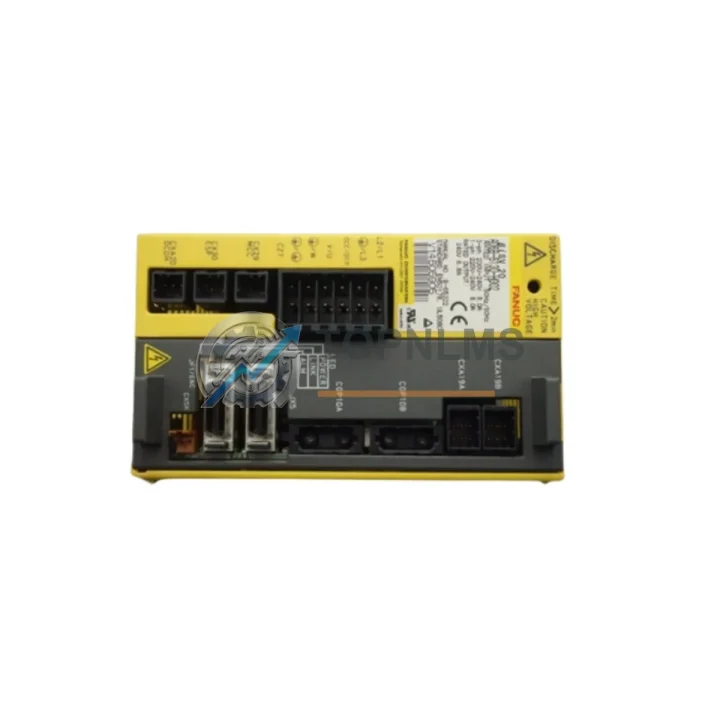

The FANUC A06B-6130-H002 is a single-axis servo amplifier module from FANUC’s industry-proven αi-SV (Alpha-i Servo) Series, engineered to deliver precise, high-torque servo control in the most demanding industrial environments. Designed for continuous-duty operation on CNC machine tools, automated production lines, and heavy-industry motion control systems, this module combines FANUC’s renowned reliability with robust protection against the electrical, thermal, and mechanical stresses that define real-world factory floors.

Whether deployed in a high-temperature foundry, a dust-laden mining facility, a vibration-intensive press line, or an EMI-saturated power generation plant, the A06B-6130-H002 maintains stable, accurate servo performance without compromise. Its compact form factor integrates seamlessly into FANUC CNC control cabinets alongside the FANUC Power Supply Module A06B-6110-H011 and the FANUC αi-SV Series Spindle Amplifier A06B-6141-H002, enabling a fully coordinated drive system within a single control enclosure.

Rugged Specifications Table

Comprehensive Protection Solutions

The A06B-6130-H002 is rarely deployed in isolation. In a fully integrated FANUC CNC control cabinet, it operates in close coordination with a range of complementary modules that together form a resilient, fault-tolerant automation architecture. The FANUC αi Series Power Supply Module A06B-6110-H011 provides stable DC bus power to the servo amplifier, while the FANUC CNC Main Board A20B-8200-0548 handles high-level motion interpolation and issues real-time commands over the FSSB fiber-optic bus.

For multi-axis applications — such as a 5-axis machining center or a gantry robot — the A06B-6130-H002 is typically paired with additional αi-SV axis modules, including the FANUC A06B-6130-H003 (dual-axis variant) or the FANUC A06B-6130-H004, all sharing the same DC bus and communicating through a unified FSSB chain. This architecture minimizes wiring complexity and maximizes synchronization accuracy across axes.

On the I/O side, the FANUC I/O Module A03B-0819-C001 and FANUC βi I/O Link Module handle discrete signal exchange between the CNC controller and field devices — limit switches, proximity sensors, safety relays, and solenoid valves — ensuring that the servo system responds correctly to machine-state changes. For safety-critical applications, the system integrates with FANUC Safety PMC modules and external safety relays compliant with IEC 62061 / ISO 13849, providing SIL 2 / PLd-level protection for operator safety zones.

Communication integrity is maintained through the FANUC PROFIBUS-DP Option Module A20B-8001-0630 or the FANUC DeviceNet Interface A20B-8001-0631, enabling the servo system to participate in plant-wide fieldbus networks alongside PLCs, DCS controllers, and SCADA systems. In environments with severe electromagnetic interference — such as near large variable-frequency drives (VFDs), arc welders, or high-voltage switchgear — the module’s built-in EMC filter and shielded FSSB fiber-optic link provide robust noise immunity that copper-based communication buses cannot match.

Application in Critical Infrastructure

The FANUC A06B-6130-H002 has established a strong track record across the most demanding sectors of critical infrastructure:

Oil & Gas: In upstream drilling rigs and downstream refinery automation, servo-driven actuators controlled by the A06B-6130-H002 manage valve positioning, pipe-handling robots, and precision metering systems. The module’s tolerance for wide ambient temperature swings — from cold offshore mornings to heat-soaked compressor rooms — ensures uninterrupted production without thermal derating.

Mining & Mineral Processing: Continuous mining machines, longwall shearers, and ore-sorting conveyors subject servo drives to relentless vibration and airborne particulate contamination. Installed within sealed, positively pressurized control cabinets, the A06B-6130-H002 maintains precise speed and torque regulation even as surrounding equipment generates shock loads exceeding 5 g.

Power Generation: Turbine blade machining, generator winding equipment, and transformer core assembly lines demand sub-micron positioning accuracy over multi-hour production cycles. The A06B-6130-H002’s FSSB-based control loop — with a 1 ms servo cycle — delivers the dynamic stiffness required to hold tolerances in the face of cutting-force disturbances.

Water & Wastewater Treatment: Pump control systems, filter press automation, and UV disinfection carousel drives operate in high-humidity, chemically aggressive environments. The module’s non-condensing humidity rating and corrosion-resistant enclosure materials support reliable long-term operation in these conditions.

Metallurgy & Steel: Rolling mill drives, continuous casting machines, and ladle transfer cars impose extreme thermal and electrical stress on control hardware. The A06B-6130-H002’s forced-air cooling and robust DC bus design allow it to sustain rated output current through extended production campaigns without nuisance tripping.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order number and a description of the fault. Replacement units are typically dispatched within 3–5 business days after fault confirmation.

Q2: How is each A06B-6130-H002 unit tested before shipment?
Every unit undergoes a multi-stage pre-shipment inspection: visual inspection for physical damage, power-on functional test verifying DC bus regulation and FSSB communication handshake, and parameter verification against FANUC factory defaults. Units that fail any stage are quarantined and not shipped. A test report is available upon request for customers with incoming inspection requirements.

Q3: Is the A06B-6130-H002 compatible with all FANUC CNC systems, and can it replace older αi-SV modules?
The A06B-6130-H002 is compatible with FANUC CNC Series 0i-D/F, 16i/18i/21i-B, and 30i/31i/32i-B systems that use the FSSB (FANUC Serial Servo Bus) interface. It is a direct functional replacement for earlier αi-SV single-axis modules of equivalent current rating. Customers upgrading from older αi or βi series amplifiers should verify the DC bus voltage and motor current rating match before installation. TOPNLMS technical support can assist with compatibility verification at no charge.

Q4: Can TOPNLMS guarantee long-term supply and support for this module?
Yes. TOPNLMS maintains dedicated stock of FANUC αi-SV series modules, including the A06B-6130-H002, to support both planned maintenance schedules and emergency breakdown situations. For customers operating large fleets of FANUC-controlled machines, we offer consignment stock arrangements and priority allocation agreements to eliminate unplanned downtime risk. Contact our team to discuss long-term supply contracts tailored to your production calendar.
