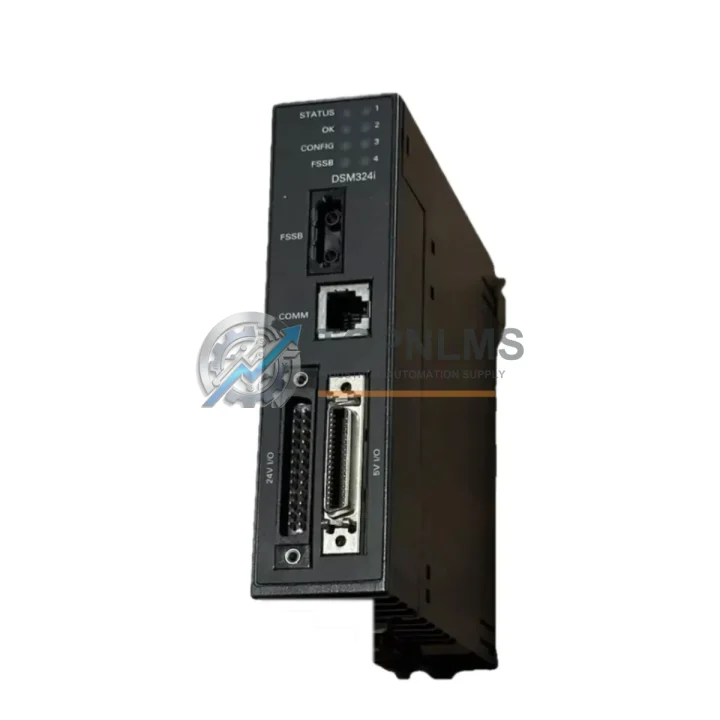

GE Fanuc IC693DSM324 Ruggedized Digital Servo Module

Product Overview

GE Fanuc IC693DSM324 Ruggedized Digital Servo Module: Industrial Resilience for Harsh Environments

The GE Fanuc IC693DSM324 is a four-axis digital servo motion control module engineered for the GE Series 90-30 PLC platform — one of the most widely deployed programmable logic controller architectures in global industrial automation. Designed to operate reliably in environments characterized by high ambient temperatures, elevated humidity, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference, the IC693DSM324 delivers deterministic servo control performance where lesser components fail. Whether installed in a steel mill control cabinet, an offshore oil platform MCC room, a municipal water treatment SCADA panel, or a continuous mining conveyor system, this module maintains precise four-axis coordinated motion without compromise.

At TOPNLMS, we stock the IC693DSM324 as a verified, tested spare and replacement component. Every unit undergoes pre-shipment functional inspection to confirm communication integrity, axis command response, and backplane interface health before leaving our facility. We ship globally with full documentation and provide a 12-month quality warranty on all modules.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC693DSM324 does not operate in isolation — it is the motion intelligence hub within a broader Series 90-30 control architecture. In a typical heavy-industry control cabinet, this servo module works in concert with the IC693CPU374 central processing unit, which handles ladder logic execution and coordinates I/O scanning across the backplane. Discrete field signals are gathered through IC693MDL655 32-point 24VDC input modules and IC693MDL754 output modules, feeding real-time process data to the CPU and servo module simultaneously.

Power integrity is maintained by the IC693PWR321 power supply module, which provides regulated 5VDC and 3.3VDC backplane power with built-in overload protection — critical in environments where voltage fluctuations from large motor starts or welding equipment can destabilize sensitive control electronics. For applications requiring analog process variable feedback, the IC693ALG222 analog input module provides 16-channel resolution to complement the digital servo feedback loop managed by the IC693DSM324.

Communication in distributed plant architectures is handled by the IC693CMM321 communications coprocessor module, enabling the Series 90-30 rack to exchange data over Ethernet TCP/IP or serial protocols with SCADA systems, HMI panels, and remote I/O drops. In safety-critical zones, the IC693DSM324 is often paired with dedicated safety relay modules and hardwired emergency stop circuits to ensure that servo axes can be de-energized independently of PLC program execution — a requirement in SIL 2 and SIL 3 rated machinery safety applications.

For installations in explosive atmospheres or Zone 1/Zone 2 classified areas, the Series 90-30 rack housing the IC693DSM324 is typically mounted in a certified Ex e or Ex d enclosure with appropriate cable gland sealing. Terminal modules such as the IC693ACC300 expansion cable assembly allow the rack to be positioned remotely from field junction boxes, reducing the length of servo encoder cables running through EMI-dense environments. Surge protection devices and shielded servo cable assemblies further protect the IC693DSM324’s encoder feedback inputs from transient voltage spikes generated by variable frequency drives (VFDs) operating in the same electrical panel.

Application in Critical Infrastructure

In oil and gas upstream operations, the IC693DSM324 controls the servo-driven positioning systems on wellhead Christmas tree actuators and pipeline pig launcher/receiver gates, where precise axis positioning under high back-pressure conditions is non-negotiable. The module’s deterministic scan cycle ensures that position commands are executed within defined time windows regardless of backplane communication load.

In underground coal and hard-rock mining, continuous miner cutting drums, longwall shearer haulage drives, and conveyor belt tensioning systems rely on coordinated multi-axis servo control. The IC693DSM324’s rugged construction tolerates the coal dust, methane-safe enclosure heat buildup, and constant mechanical shock that characterize these environments. Replacement cycles in mining are driven by planned maintenance schedules, and having a tested IC693DSM324 spare on the shelf eliminates the risk of extended production downtime caused by module failure.

In electric power generation and transmission, turbine governor control systems and excitation control panels use Series 90-30 platforms for their proven reliability and long product lifecycle. The IC693DSM324 manages servo valve positioning on steam admission valves and hydraulic actuators, where a control failure can result in turbine trip events with significant financial and grid-stability consequences. Utilities and EPC contractors specify GE Fanuc Series 90-30 components precisely because of their documented mean time between failures (MTBF) and the availability of long-term spare parts supply.

In water and wastewater treatment, the module controls servo-actuated butterfly valves, chemical dosing pump drives, and filter backwash sequencing systems. Municipal water authorities operating 24/7 continuous treatment processes cannot afford unplanned outages, making the availability of a pre-tested IC693DSM324 replacement module a critical element of their asset management strategy.

In metals and steel production, rolling mill pass-line adjustment, coiler tension control, and slab transfer car positioning systems demand sub-millimeter repeatability under loads measured in tonnes. The IC693DSM324’s four-axis coordinated motion capability allows complex gantry and tandem-axis applications to be managed from a single module slot, reducing cabinet footprint and simplifying wiring in environments where every square centimeter of panel space is contested.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All IC693DSM324 modules shipped by TOPNLMS carry a 12-month warranty from the date of shipment. This covers functional failure under normal operating conditions as defined by GE Fanuc’s published specifications. In the event of a warranty claim, we provide a replacement module or full refund after remote diagnostic confirmation. Physical damage caused by incorrect installation, overvoltage events, or unauthorized modification is excluded. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q2: How is each module tested before shipment?
Every IC693DSM324 unit undergoes a pre-shipment inspection protocol that includes visual inspection for physical damage, backplane connector integrity check, firmware version verification, and functional power-on test using a Series 90-30 test rack. Modules that fail any stage of this protocol are quarantined and not shipped. A test report is available upon request for customers with documented quality management system (QMS) requirements.

Q3: Is the IC693DSM324 compatible with all Series 90-30 CPU models?
The IC693DSM324 is compatible with the full range of Series 90-30 CPU modules that support motion control DSM configuration, including the IC693CPU350, IC693CPU360, IC693CPU374, IC693CPU375, and IC693CPU376. It is not compatible with Series 90-70 or PACSystems RX3i backplanes without an appropriate adapter or migration kit. If you are uncertain about compatibility with your specific rack and CPU revision, contact our technical team at [email protected] before ordering.

Q4: Can TOPNLMS guarantee long-term supply of the IC693DSM324 for ongoing maintenance contracts?
Yes. TOPNLMS maintains a dedicated inventory buffer of high-demand Series 90-30 modules, including the IC693DSM324, specifically to support customers with multi-year maintenance and operations (M&O) contracts. We can provide blanket purchase order arrangements, reserved stock agreements, and scheduled delivery programs for customers who require guaranteed availability over 12–36 month horizons. Contact us to discuss a supply agreement tailored to your plant’s spare parts management requirements.
