FANUC A06B-6240-H209 Replacement Solution for AiSV Series

Product Overview

FANUC A06B-6240-H209 Replacement Solution for AiSV Series: Smooth Transition from Legacy Servo Systems

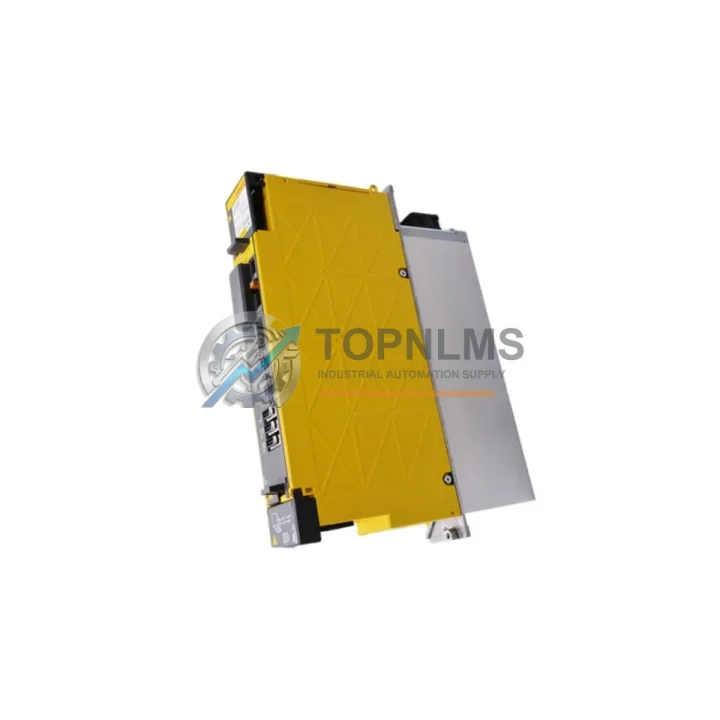

The FANUC A06B-6240-H209 is a dual-axis servo amplifier belonging to the AiSV (Alpha i SV) Series, rated at 80A/80A per axis. As FANUC progressively phases out older Alpha series amplifiers, many machine tool operators and system integrators face urgent decisions: how to replace a failed or end-of-life unit without triggering a full-scale retrofit of the CNC control system. This product page is designed to guide engineers and procurement teams through a structured, low-risk migration path — covering wiring compatibility, communication protocol continuity, physical installation constraints, and system-level integration considerations.

The A06B-6240-H209 is designed for use within FANUC’s Series 30i / 31i / 32i and compatible Series 0i-F CNC platforms. It interfaces with the CNC controller via the FSSB (FANUC Serial Servo Bus) — a high-speed fiber-optic serial link that eliminates traditional analog wiring between the controller and amplifier. When replacing a failed A06B-6240-H209, the FSSB topology must be preserved: the amplifier’s position in the daisy-chain must match the axis assignment configured in the CNC parameter table (parameters 1023, 1905, and related FSSB settings). Failure to maintain this sequence will result in axis mismatch alarms and prevent spindle or feed axis operation.

From a wiring standpoint, the A06B-6240-H209 uses standard FANUC Alpha i series connector pinouts. The main power input (three-phase 200–240 VAC) connects via the CX1A/CX1B terminals, while the DC link bus is shared across amplifier modules mounted on the same rack — typically alongside a FANUC A06B-6110 series PSM (Power Supply Module) such as the A06B-6110-H015 or A06B-6110-H022. When replacing the servo amplifier, the PSM capacity must be verified against the combined axis load; an undersized PSM will trigger OVC or HV alarms under acceleration. The motor feedback cables (Pulsecoder connectors JF1/JF2) and the brake control connectors (JX5/JX6) are physically identical across the AiSV 80A family, simplifying direct swap-in replacement without rewiring the motor side.

For installations where the A06B-6240-H209 is mounted in a FANUC standard control cabinet alongside other amplifier modules, physical space compatibility is a key concern. The AiSV 80A/80A dual-axis unit occupies a specific slot width in the amplifier rack. Adjacent modules — such as a single-axis FANUC A06B-6240-H103 (AiSV 20A) or a spindle amplifier like the FANUC A06B-6200-H011 (AiSP 11A) — must not be disturbed during replacement. The DC link bus bar connections between modules require careful torque management per FANUC’s installation manual to avoid contact resistance issues that can cause intermittent DC link voltage alarms.

In multi-axis machining centers or turning centers, the A06B-6240-H209 typically drives X/Z or X/Y axis pairs. During the replacement process, axis parameter backup is essential. Using FANUC SRAM backup via a CF card or the FANUC FOCAS2 / Ethernet DNC interface, all servo parameters — including servo gain (parameter 2043–2047), backlash compensation (parameter 1851), and pitch error compensation tables — should be saved before powering down. After installing the replacement amplifier, these parameters are restored to ensure identical dynamic performance without requiring a full servo tuning cycle on the machine.

For facilities managing a fleet of FANUC-controlled machines, a common upgrade scenario involves transitioning from older FANUC Alpha series (A06B-6096 / A06B-6079 family) amplifiers to the current AiSV platform. This migration requires updated FSSB parameter configuration and may involve replacing the FANUC A20B-8200 series axis control card in the CNC rack. In such cases, the FANUC A02B series CNC main board and associated I/O Link modules (A03B-0819 series) should be audited for firmware compatibility before commissioning the new amplifier.

Communication protocol continuity is straightforward for direct A06B-6240-H209 replacements: FSSB is maintained, and no changes to the ladder program (PMC) are required unless the machine’s I/O configuration is being simultaneously updated. However, if the retrofit also involves upgrading the FANUC I/O Module A (A03B-0815 series) or adding a PROFIBUS or DeviceNet interface unit, the PMC program and I/O address mapping must be reviewed and updated accordingly.

From a procurement and supply chain perspective, TOPNLMS maintains verified stock of the A06B-6240-H209 and related AiSV series components. Each unit undergoes pre-shipment functional testing including DC link charge/discharge verification, IGBT gate drive signal check, and encoder feedback loop continuity test. Units are shipped in anti-static packaging with full documentation. Standard lead time from Xiamen warehouse is 3–7 business days for international destinations, with express DHL/FedEx options available for emergency breakdown situations.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful A06B-6240-H209 replacement rarely involves the servo amplifier in isolation. In most field scenarios, the following components are evaluated or replaced concurrently to ensure system-level reliability after the upgrade.

The FANUC A06B-6110-H022 Power Supply Module (PSM) is the most common companion unit. As the DC link source for all amplifier modules on the rack, its capacity must be recalculated when upgrading from a lower-rated amplifier. A degraded PSM capacitor bank is frequently the root cause of recurring OVC alarms on otherwise healthy servo amplifiers. Replacing the PSM alongside the servo amplifier eliminates this hidden failure mode.

The FANUC A06B-6240-H103 single-axis AiSV 20A amplifier is often found on the same rack as the H209, driving lower-torque axes such as the B-axis or tool changer motor. When the H209 is replaced, the H103’s DC link bus bar connections should be inspected and re-torqued to specification.

Encoder feedback integrity is critical after any amplifier swap. The FANUC A860-2000 series Alpha i Pulsecoder cables and connectors should be inspected for pin corrosion or insulation damage. A degraded feedback cable will cause position error alarms (SV0401 / SV0410) that are easily misdiagnosed as amplifier faults.

For machines where the CNC controller itself is being upgraded alongside the servo system, the FANUC A02B-0338 series CNC main board and the associated FANUC A20B-8200 axis control card are the primary interface components that must be verified for FSSB generation compatibility with the AiSV amplifier family.

In control cabinets where I/O expansion is required during the retrofit, the FANUC A03B-0819-C001 I/O Module A provides additional digital I/O capacity via the I/O Link protocol. This module is commonly added when upgrading from older machine configurations that lacked sufficient I/O for new safety relay circuits or auxiliary axis control.

Finally, for commissioning and parameter management, a FANUC programming cable (RS-232 or Ethernet DNC interface) is essential for SRAM backup, parameter transfer, and ladder program verification before the machine is returned to production. TOPNLMS can supply compatible interface cables and adapters alongside the amplifier unit.

Retrofit Guidance FAQ

Q: Can I directly replace a failed A06B-6240-H209 without changing any CNC parameters?
A: Yes, for a like-for-like replacement within the AiSV 80A/80A family. The FSSB axis assignment, servo gain parameters, and PMC ladder remain unchanged. Power down the machine, swap the amplifier, reconnect all cables in the original configuration, and power up. Verify no alarms are present before resuming production.

Q: What alarms should I expect if the FSSB chain is disrupted during installation?
A: The CNC will generate SV5136 (FSSB: Amplifier not ready) or SV5137 (FSSB: Initialization error) alarms. These indicate the amplifier is not recognized in the expected FSSB slot. Verify the fiber optic cable connections at both the CNC axis card (JA7A/JA7B) and the amplifier’s COP10A/COP10B ports.

Q: Is the A06B-6240-H209 compatible with older Alpha series Pulsecoders?
A: The AiSV series amplifiers are designed for use with Alpha i Pulsecoders. Older Alpha series Pulsecoders (A860-0300 family) may not be fully compatible. Verify the Pulsecoder model on the motor nameplate before installation. If in doubt, contact TOPNLMS for compatibility confirmation.

Q: How do I verify the PSM is adequate for the replacement amplifier?
A: Sum the rated output currents of all servo and spindle amplifiers on the DC link bus. The PSM’s rated output power (in kW) must exceed the calculated total. Refer to FANUC’s amplifier selection guide (B-65272EN) for detailed calculation methodology.

Q: Can this amplifier be used in a machine originally equipped with a Series 16i or 18i CNC?
A: The A06B-6240-H209 is optimized for Series 30i/31i/32i and 0i-F platforms. Use with Series 16i/18i requires careful verification of FSSB generation compatibility and may require a CNC controller upgrade. Contact TOPNLMS technical support for a system-level compatibility assessment.

Q: What physical space does the A06B-6240-H209 require in the control cabinet?
A: The unit follows the standard FANUC AiSV dual-axis form factor. Verify the slot width and depth against your existing cabinet layout before ordering. TOPNLMS can provide dimensional drawings upon request.

Warranty Assurance

Every FANUC A06B-6240-H209 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment testing protocol includes DC link capacitor charge/discharge verification, IGBT gate drive signal integrity check, encoder feedback loop continuity test, and visual inspection for physical damage or counterfeit components. Units that do not pass all test criteria are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 5 business days of fault confirmation. Our technical support team is available via email and phone to assist with installation verification, alarm diagnosis, and parameter guidance throughout the warranty period. We do not require the customer to return the faulty unit before dispatching the replacement in confirmed breakdown situations — minimizing your machine downtime.

For procurement teams managing spare parts programs, TOPNLMS offers consignment stock arrangements and blanket purchase order agreements for high-volume or multi-site customers. All units are supplied with a test certificate and packing list. Export documentation including commercial invoice, packing list, and certificate of origin is provided as standard for international shipments.

Contact our technical sales team to confirm stock availability, request a quotation, or discuss your specific retrofit requirements.
