Danfoss 175Z1213 Replacement for VLT DT16 Series: Smooth Migration & Legacy System Upgrade

When a Danfoss VLT® DT16 series variable frequency drive fails or reaches end-of-life, the inverter driver board — part number 175Z1213 — is frequently the root cause of unplanned downtime. Whether you are managing a paper mill, water treatment plant, HVAC system, or a conveyor-driven production line, replacing the 175Z1213 driver board is one of the most cost-effective ways to restore full drive functionality without committing to a complete VFD cabinet overhaul.

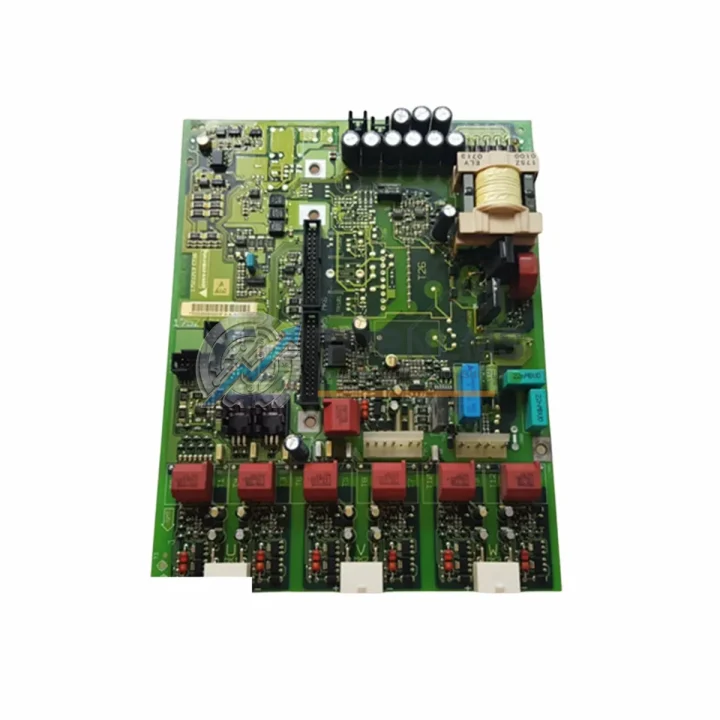

This listing covers the Danfoss 175Z1213 inverter driver board, a critical power electronics component within the VLT® DT16 drive platform. The board interfaces directly with the IGBT gate drive circuitry, DC bus voltage sensing, and the main control card — making it a precision-matched replacement that must meet exact electrical and mechanical specifications to ensure safe, reliable operation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 175Z1213 board replacement rarely happens in isolation. In most retrofit scenarios, engineers also inspect or simultaneously replace adjacent components to ensure the entire drive system is restored to full operational health. During a VLT® DT16 drive repair, it is common to evaluate the VLT® DT16 main control card for firmware integrity and parameter backup before the board swap, since any corruption in the control card memory can cause the new driver board to fault immediately on power-up.

The Danfoss VLT® power card — which manages the rectifier stage and DC bus charging — should also be inspected for capacitor aging and SCR condition, particularly in drives that have been in service for more than eight years. If the DC bus capacitors in the VLT® DT16 capacitor bank assembly show signs of bulging or electrolyte leakage, replacing them alongside the 175Z1213 driver board eliminates the risk of a repeat failure within months.

For facilities running multiple Danfoss drives on a shared fieldbus network — such as PROFIBUS DP or DeviceNet — the Danfoss VLT® fieldbus option card (e.g., the FC Series PROFIBUS module) must retain its node address and baud rate settings throughout the repair. Losing these parameters during a board swap can disrupt the entire network segment and trigger cascading faults across connected PLCs or DCS controllers.

In cabinet-level retrofits where the VLT® DT16 is mounted alongside other Danfoss drives, the VLT® 5000 series and VLT® 6000 HVAC series drives often share the same control cabinet space and 24 VDC auxiliary power rail. Verifying that the shared power supply — typically a Danfoss 24V DC power module or equivalent DIN-rail PSU — can sustain inrush current during simultaneous drive restarts is a critical commissioning step that is frequently overlooked.

When the 175Z1213 board is replaced in a system where the drive communicates with a Siemens S7-300 or S7-400 PLC via PROFIBUS, engineers should use a Danfoss VLT® PC Tool or compatible programming cable to re-upload the parameter set from backup before enabling the drive. This prevents the PLC from receiving unexpected speed reference or status word values during the first power cycle after repair.

For applications where the VLT® DT16 controls a pump or fan with a Danfoss pressure transmitter or flow sensor on the PID feedback loop, the analog input card wiring — typically 4–20 mA on terminal 53 or 54 — should be verified for continuity and shielding integrity after the board replacement, as vibration during disassembly can loosen terminal connections.

In multi-drive systems using a Danfoss VLT® brake resistor module for dynamic braking, the brake IGBT driver circuit on the 175Z1213 board must be tested under load before returning the drive to service. A faulty brake chopper output is one of the most common secondary faults discovered after an initial driver board failure.

Retrofit Guidance FAQ

Q: Is the 175Z1213 a direct drop-in replacement with no wiring changes?
A: Yes. The 175Z1213 uses the same PCB footprint, connector harness, and standoff positions as the original OEM board. No rewiring, no adapter brackets, and no firmware modifications are required for a standard swap.

Q: Do I need to back up drive parameters before replacing the board?
A: Yes, always. The driver board itself does not store parameters, but the replacement process requires removing the control card in some DT16 variants. Use the Danfoss VLT® PC Tool or the LCP (Local Control Panel) parameter copy function to back up all settings before disassembly.

Q: Will the replacement board work with my existing PROFIBUS or DeviceNet option card?
A: Yes. The 175Z1213 driver board operates on the internal drive bus and does not affect the fieldbus option card slot. Your existing communication module, node address, and baud rate settings remain intact after the swap.

Q: What physical space is required for installation?
A: The 175Z1213 board matches the original OEM dimensions exactly. No cabinet modifications are needed. Ensure the drive is fully de-energized and the DC bus is discharged (wait at least 5 minutes after power-off) before beginning installation.

Q: Can this board be used to upgrade a VLT® 5000 or VLT® 6000 series drive?
A: No. The 175Z1213 is specific to the VLT® DT16 platform. VLT® 5000 and 6000 series drives use different driver board part numbers and are not cross-compatible at the PCB level.

Q: What is the typical commissioning procedure after installation?
A: After installing the board, restore parameters from backup, perform a short no-load test run, verify motor current readings on all three phases, and confirm that the brake chopper output (if used) responds correctly to deceleration commands before returning the drive to full production load.

Warranty Assurance

Every Danfoss 175Z1213 inverter driver board shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Before dispatch, each board undergoes a multi-point inspection that includes visual examination for PCB damage, component integrity checks on gate drive ICs and isolated power supply sections, and functional verification where test equipment permits.

If a board is found to be defective on arrival (DOA) or fails within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement or issue a refund in accordance with our standard after-sales policy. Our technical support team is available to assist with installation questions, fault diagnosis, and compatibility verification prior to purchase.

We maintain in-stock inventory of the 175Z1213 and related VLT® DT16 components to support urgent replacement requirements. Standard orders are processed and dispatched within 1–3 business days from our Xiamen warehouse, with DHL Express, FedEx International Priority, and sea freight options available depending on urgency and destination.

For bulk procurement, OEM sourcing inquiries, or technical pre-sales consultation, contact our team directly. We serve industrial maintenance engineers, MRO procurement teams, system integrators, and OEM repair centers across Asia, Europe, the Middle East, and the Americas.
