Danfoss 130B6016-DT7 VLT Drive Control Card Replacement

Product Overview

Danfoss 130B6016-DT7 VLT Drive Control Card Replacement: Seamless Transition from Legacy Drive Systems

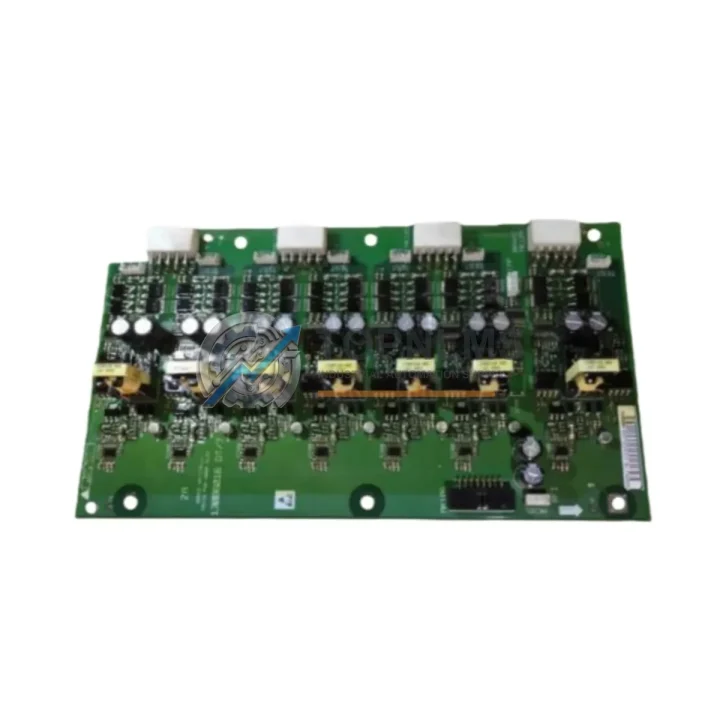

The Danfoss 130B6016-DT7 is a VLT series drive control card designed for use in Danfoss variable frequency drive (VFD) platforms. As industrial facilities continue to modernize aging automation infrastructure, this control card serves as a critical replacement and upgrade component for engineers managing legacy drive systems that are approaching end-of-life or have already been discontinued. Whether your facility is running an older VLT 2800, VLT 5000, or transitioning toward the VLT AutomationDrive FC 302 platform, the 130B6016-DT7 provides a reliable, specification-matched solution that minimizes engineering rework and reduces unplanned downtime.

In many retrofit scenarios, the original drive control board fails due to capacitor aging, IGBT gate signal degradation, or firmware corruption — all common failure modes in drives that have been in continuous service for 10 or more years. The 130B6016-DT7 is engineered to restore full drive functionality without requiring replacement of the entire drive cabinet or power section. This makes it an economically sound choice for facilities that have invested in existing VLT drive enclosures, cable routing, and motor wiring infrastructure.

From a wiring compatibility standpoint, the 130B6016-DT7 retains the same control terminal layout as its predecessor boards, meaning existing 24 VDC digital input wiring, analog reference signals (0–10 V or 4–20 mA), relay output connections, and RS-485 communication cables can typically be reconnected without modification. This is particularly valuable in applications where the drive is integrated into a larger control cabinet alongside Danfoss MCD soft starters, FC 51 Micro Drive units, or third-party PLCs communicating over Modbus RTU or Profibus DP. Engineers performing the swap can retain existing fieldbus node addresses and baud rate settings, significantly reducing commissioning time on the plant floor.

For facilities using Danfoss VLT drives in conjunction with Siemens S7-300 or S7-400 PLCs, Allen-Bradley MicroLogix or CompactLogix controllers, or Schneider Electric Modicon M340 systems, the 130B6016-DT7 maintains full protocol compatibility. The drive’s parameter set — including ramp times, current limits, motor nameplate data, and PID configurations — can be restored from a previously saved LCP (Local Control Panel) backup or re-entered via the VLT Motion Control Tool MCT 10 software, eliminating the need for full recommissioning from scratch.

Physical installation is equally straightforward. The card mounts into the existing drive chassis using the original standoffs and connector interface, with no mechanical modification required to the drive enclosure or DIN rail arrangement. In control cabinets where space is constrained — a common challenge in older panel designs — this drop-in compatibility is essential. The power supply requirements remain consistent with the original specification, drawing from the drive’s internal 24 V logic supply, so no additional PSU modules or wiring changes are needed.

During the upgrade process, it is common for engineers to simultaneously inspect and replace associated components such as the VLT LCP display panel, the brake resistor module, the EMC filter, and the DC link capacitor bank. In multi-drive installations, the opportunity is also taken to standardize communication wiring to the Danfoss FC Option B (Profibus) or FC Option C (DeviceNet) communication modules, ensuring the entire drive network operates on a unified protocol. Signal isolators and terminal blocks from the existing I/O wiring harness are typically reused without issue.

For facilities managing spare parts inventory, stocking the 130B6016-DT7 as a critical spare reduces mean time to repair (MTTR) for VLT drive failures from days to hours. Our inventory is pre-tested, serialized, and shipped with full documentation. Each unit undergoes functional verification prior to dispatch from our Xiamen warehouse, with global logistics support for air freight and express courier services to minimize lead time for urgent replacement needs.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful VLT drive control card replacement rarely happens in isolation. During the retrofit process, engineers typically address the broader drive system to ensure long-term reliability. The VLT LCP (Local Control Panel) is often replaced alongside the control card, as display failures and keypad wear are common in aging drives. The Danfoss FC Option B Profibus module or FC Option C DeviceNet module may also be inspected or swapped to ensure fieldbus communication integrity after the card replacement. In multi-axis or multi-drive panels, the Danfoss VLT AutomationDrive FC 302 power card and gate drive board are frequently evaluated as part of the same maintenance window.

For facilities integrating the VLT drive into a broader control architecture, the Danfoss MCO 305 positioning option card and the VLT Encoder Input MCB 102 are common companion components that must be verified for compatibility after a control card swap. In cabinet-level upgrades, engineers also address the 24 VDC SMPS power supply module, DIN rail terminal blocks, and signal isolators to ensure clean analog reference signals reach the drive’s control board. Where the drive communicates with a Siemens ET 200SP distributed I/O system or a Beckhoff EtherCAT I/O module, the RS-485 or Profibus wiring is re-terminated and tested as part of the commissioning checklist.

Retrofit Guidance FAQ

Q: Can I reuse my existing control wiring after replacing the 130B6016-DT7?
A: Yes. The terminal layout is compatible with the original VLT control card wiring. Digital inputs, analog references, relay outputs, and RS-485 connections can be reconnected without modification in most standard installations.

Q: Will my Modbus RTU or Profibus DP configuration be preserved?
A: The communication protocol settings are stored in the drive’s parameter set. If you have an LCP backup or MCT 10 parameter file, these can be restored after the card swap. Node addresses and baud rates do not need to be reconfigured from scratch.

Q: Does the physical size of the 130B6016-DT7 match the original board?
A: Yes. The card is designed as a direct mechanical replacement and mounts using the existing chassis standoffs. No modifications to the drive enclosure or control cabinet are required.

Q: What programming tools are compatible with this control card?
A: The Danfoss VLT Motion Control Tool MCT 10 is the primary software tool for parameter configuration and backup/restore operations. The LCP panel can also be used for manual parameter entry on-site.

Q: What if I cannot confirm the exact compatibility with my drive model?
A: Contact our technical team at [email protected] with your drive nameplate data (model number, power rating, firmware version). We will confirm compatibility before shipment.

Warranty Assurance

Every Danfoss 130B6016-DT7 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a functional verification process at our Xiamen facility, including power-on testing, terminal integrity checks, and visual inspection for component condition. Units that do not meet our quality threshold are not shipped.

In the event of a warranty claim, our after-sales team responds within 24 business hours. Replacement units are dispatched on a priority basis to minimize your facility’s downtime. We support both advance replacement (ship first, return later) and standard RMA workflows depending on your procurement requirements.

For urgent plant breakdowns, we offer express air freight from Xiamen with tracking, typically achieving delivery to major industrial hubs in Europe, Southeast Asia, and the Middle East within 3–7 business days. Bulk procurement orders for spare parts inventory programs are also supported with volume pricing and consolidated shipping options.

Our procurement guarantee includes accurate product labeling, original manufacturer documentation where available, and full traceability of unit serial numbers. We do not ship untested or cosmetically damaged units under any circumstances.
