Danfoss FCD322PT4P66STR1D0F00T52C0 Original Industrial Spare FC 302 Compatible

Product Overview

Danfoss FCD322PT4P66STR1D0F00T52C0 Original Industrial Spare FC 302 Compatible: Ensuring System Stability in Demanding Environments

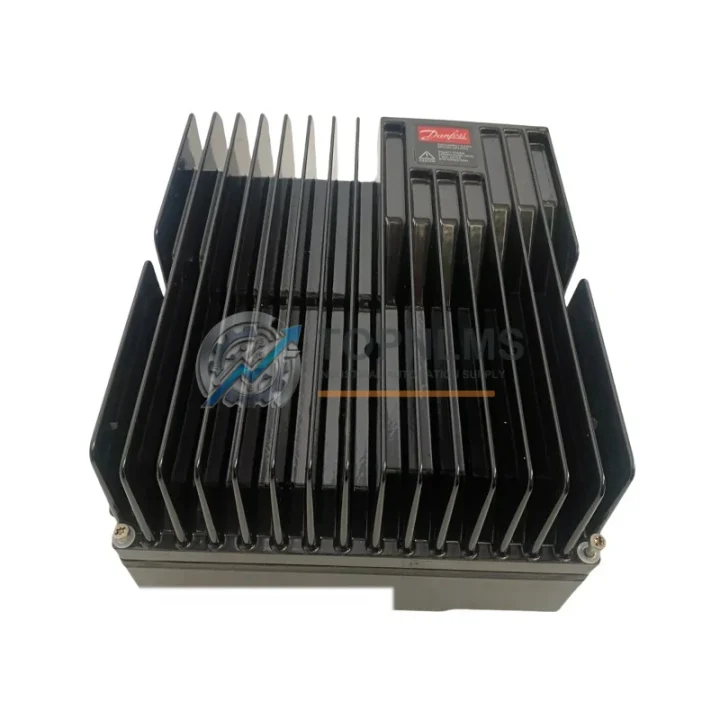

In industrial facilities where uptime is non-negotiable, the Danfoss FCD322PT4P66STR1D0F00T52C0 stands as a critical component in maintaining continuous motor control operations. As an original spare part within the Danfoss FC 302 series, this 22kW IP66-rated variable frequency drive (VFD) is engineered for harsh environments — delivering precise speed regulation, energy efficiency, and long-term system compatibility across a wide range of industrial applications including pumps, fans, compressors, and conveyor systems.

Whether you are managing a planned maintenance shutdown, responding to an unplanned motor drive failure, or building a strategic spare parts inventory to protect your production line, the FCD322PT4P66STR1D0F00T52C0 provides a direct, drop-in replacement solution that preserves your existing control architecture without costly system redesign.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your FC 302 Drive System

A variable frequency drive failure rarely occurs in isolation. In most industrial control cabinets, the FCD322PT4P66STR1D0F00T52C0 operates as part of an interconnected electrical system where the health of surrounding components directly impacts drive longevity and system reliability. A comprehensive preventive maintenance program should address the entire drive circuit — not just the VFD itself.

During scheduled maintenance inspections, technicians should simultaneously evaluate the Danfoss FC 302 LCP (Local Control Panel) for display integrity and parameter backup capability. The LCP stores critical drive parameters and serves as the primary interface for commissioning and fault diagnostics — a failed or corrupted LCP can delay restart after a drive replacement by hours. Keeping a spare LCP unit on hand is a low-cost insurance policy for high-criticality applications.

The input line reactor and EMC filter module upstream of the drive should be inspected for signs of overheating, insulation degradation, or harmonic distortion. These components protect the FCD322PT4P66STR1D0F00T52C0 from voltage spikes and grid-side disturbances — their failure can cause premature IGBT damage inside the drive. Similarly, the output du/dt filter or sine-wave filter on the motor side should be checked for capacitor aging, particularly in installations with long cable runs exceeding 50 meters.

Within the control cabinet, inspect the 24VDC control power supply module that feeds the drive’s control card. An unstable or under-voltage control supply is a common root cause of intermittent drive faults and unexplained trip events. Pairing the FCD322PT4P66STR1D0F00T52C0 replacement with a fresh Danfoss FC 302 control card or verifying the existing card’s firmware version ensures full compatibility and access to the latest fault-handling improvements.

The motor thermistor (PTC/NTC) circuit and associated thermistor relay module should be tested during every drive replacement. A faulty thermistor input can mask motor overheating conditions, leading to winding damage that will ultimately destroy the new drive. Additionally, review the condition of shielded motor cables and verify that cable shield grounding is intact at both the drive and motor terminal ends — poor shielding is a leading cause of EMC-related nuisance trips in IP66 outdoor installations.

For facilities running multiple FC 302 drives across a production line, consider maintaining a consolidated spare parts kit that includes: the FCD322PT4P66STR1D0F00T52C0 drive unit, a spare LCP display panel, a set of control terminal blocks and I/O expansion cards, a brake resistor module (for applications with regenerative loads), and a fieldbus communication option card matching your plant’s network protocol (PROFIBUS DP, EtherNet/IP, or PROFINET). This kit approach reduces mean time to repair (MTTR) from days to hours during unplanned outages.

Strategic Replacement Solutions: Minimizing Downtime with Original Spare Parts

The Danfoss FC 302 series has been a cornerstone of industrial motor control for over two decades, and many facilities continue to operate legacy FC 300 and FC 200 series installations alongside newer FC 302 deployments. The FCD322PT4P66STR1D0F00T52C0 is specifically configured for IP66 outdoor and washdown environments — a specification that eliminates the need for additional enclosure upgrades when replacing older, lower-rated drives in the same mounting position.

For maintenance engineers managing aging automation systems, sourcing original Danfoss spare parts rather than third-party alternatives preserves parameter compatibility, warranty coverage, and technical support eligibility. The FC 302 platform supports direct parameter upload from a backed-up LCP, meaning a trained technician can restore a fully configured replacement drive to operational status in under 30 minutes — provided the original parameters were saved prior to failure.

In facilities where the FCD322PT4P66STR1D0F00T52C0 controls critical pump or fan applications, we recommend maintaining at least one cold-standby unit in the local spare parts store. The cost of a single unplanned production stoppage — including lost output, emergency labor, and expedited freight — typically exceeds the cost of a spare drive by a factor of 5 to 20. Strategic inventory of original spare parts is not a cost center; it is a risk management investment.

All units supplied by TOPNLMS are sourced from authorized channels, individually tested prior to shipment, and covered by a 12-month warranty from the date of delivery. Each unit ships with original packaging and documentation. Express international shipping is available for urgent maintenance requirements.
