Danfoss 130B6038 Ruggedized Inverter Power Board for Harsh Environments

Product Overview

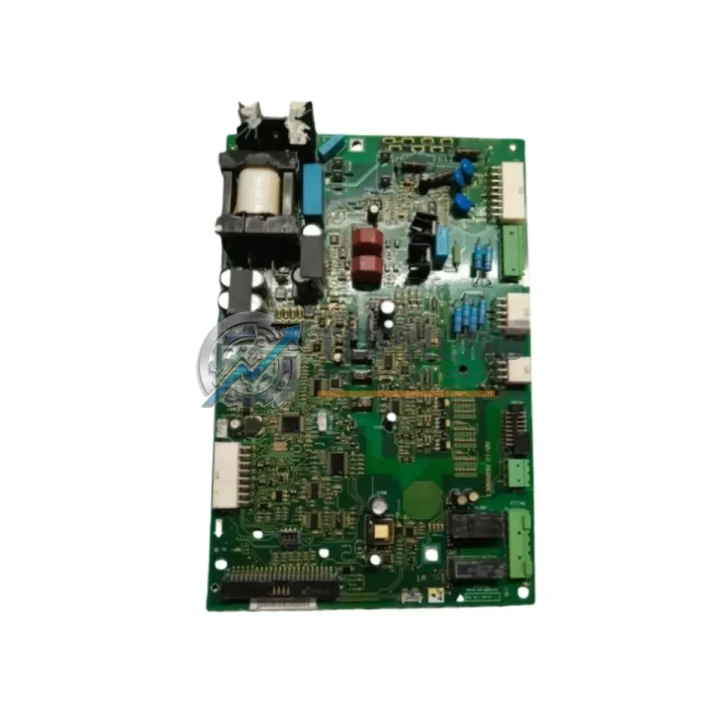

Danfoss 130B6038 Ruggedized Inverter Power Board: Industrial Resilience in Harsh Environments

The Danfoss 130B6038 is a high-power drive board engineered for the VLT® FC Series frequency converters — one of the most trusted variable-speed drive platforms deployed across global heavy industry. Designed to sustain continuous operation under extreme thermal stress, high-humidity exposure, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference, this board represents the backbone of reliable motor control in environments where failure is not an option.

Industrial facilities operating continuous production lines — from petrochemical refineries and offshore platforms to underground mining operations and municipal water treatment plants — depend on the VLT FC Series drive architecture to maintain precise motor speed regulation. The 130B6038 power board is the critical switching and rectification assembly within that architecture, responsible for converting AC mains supply into the controlled DC bus voltage that feeds the inverter output stage. Its robust construction, using industrial-grade IGBTs and thermally optimized copper bus bars, ensures stable performance across the full operating temperature range without derating.

Rugged Specifications Table

Comprehensive Protection Solutions

The 130B6038 does not operate in isolation — it is one node in a tightly integrated drive system. In a typical high-power VLT FC 302 installation, the power board works in concert with the Danfoss 130B6039 control card and the 130B6041 gate driver board to deliver closed-loop vector control of large induction and permanent-magnet motors. When the power board is replaced during a field repair, technicians routinely inspect the companion Danfoss 130B6040 fan assembly and the 130B6042 DC bus capacitor bank to ensure the entire power stage is restored to factory specification.

In control cabinet installations, the VLT FC Series drive is typically mounted alongside Danfoss MCD 500 soft starters for motor protection during start-up sequences, and Danfoss AK-CC 550 controllers for process-level supervision in refrigeration and HVAC-adjacent applications. For facilities running Siemens S7-300 or S7-1500 PLCs as the supervisory controller, the FC Series drive communicates via PROFIBUS DP or PROFINET IO using the optional Danfoss FC-302 PROFIBUS option card (130B1107), enabling seamless integration into existing DCS or SCADA architectures without additional protocol converters.

On the power supply side, the drive’s control electronics are protected by Danfoss 24 V DC SITOP-equivalent power supplies and supplemented by Phoenix Contact QUINT series UPS modules to ride through momentary mains interruptions — a critical requirement in continuous-process industries where an unplanned drive trip can trigger a cascade shutdown across an entire production line. Surge protection on the incoming AC supply is typically provided by Dehn or OBO Bettermann Type 2 SPD modules mounted in the upstream MCC panel, shielding the 130B6038 power stage from transient overvoltages caused by nearby lightning strikes or capacitor bank switching events.

For facilities requiring SIL 2 or SIL 3 functional safety compliance, the VLT FC Series supports the Danfoss Safe Torque Off (STO) option card (130B1137), which interfaces directly with safety PLCs such as the Pilz PNOZ m B0 or Sick Flexi Soft safety controllers to provide certified drive-level safe state without the need for external contactors — reducing panel complexity and improving mean time between failures across the safety loop.

Application in Critical Infrastructure

In oil and gas upstream operations, the Danfoss 130B6038 power board supports VLT FC 302 drives controlling electric submersible pump (ESP) systems, gas compressor trains, and wellhead injection pump motors operating in Zone 2 classified areas. The board’s robust IGBT switching topology handles the high inrush currents and frequent load transients characteristic of pump-start sequences in remote unmanned wellhead installations, where maintenance access is limited and component longevity is paramount.

In underground coal and metal mining, VLT FC Series drives equipped with the 130B6038 power stage control conveyor belt drives, ventilation fan motors, and hoist systems in environments with persistent coal dust, methane gas, and high ambient humidity. The drive’s built-in motor thermistor input and electronic thermal protection functions — enabled by the power board’s accurate current sensing circuitry — prevent motor overheating in poorly ventilated underground galleries where forced cooling is unavailable.

In municipal and industrial water treatment, the 130B6038 supports variable-speed control of large centrifugal pumps and blower motors in aeration basins, where continuous 24/7 operation at varying flow rates demands a power board capable of sustained high-cycle switching without thermal fatigue. The board’s low harmonic distortion characteristics, combined with optional Danfoss 12-pulse rectifier configurations, help facilities meet IEEE 519 harmonic limits without external passive filters.

In metallurgical and steel mill applications, the power board operates in environments with intense electromagnetic interference generated by arc furnaces, induction heaters, and large DC drives. Its shielded gate driver circuitry and optically isolated control interfaces maintain signal integrity even in the presence of common-mode noise levels that would compromise lesser drive designs.

Security & Quality FAQ

Q1: What warranty coverage is provided for the Danfoss 130B6038?
All units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with direct technical support from our engineering team, and replacement units are dispatched within 3–5 business days upon fault confirmation.

Q2: How is each unit tested before shipment?
Every 130B6038 board undergoes a multi-stage outgoing quality inspection including visual inspection for physical damage, component-level continuity testing, IGBT gate threshold verification, and where applicable, functional power-on testing in a matched VLT FC Series drive frame. Test records are available upon request for critical infrastructure procurement.

Q3: Is the 130B6038 compatible with all VLT FC Series drive frames?
The 130B6038 is designed for the high-power frame variants of the VLT FC 102, FC 202, and FC 302 series. Compatibility depends on the specific power rating and frame size of your installed drive. TOPNLMS technical staff can cross-reference your drive nameplate data to confirm fitment before order confirmation — please provide your drive serial number or full model code when enquiring.

Q4: Can TOPNLMS support long-term or repeat supply of this part?
Yes. TOPNLMS maintains strategic stock of Danfoss VLT FC Series spare parts including power boards, control cards, gate drivers, and option modules to support planned maintenance programs and emergency breakdown requirements. We offer blanket purchase order arrangements for facilities with recurring spare parts needs, ensuring priority allocation and stable pricing over multi-year maintenance contracts.
