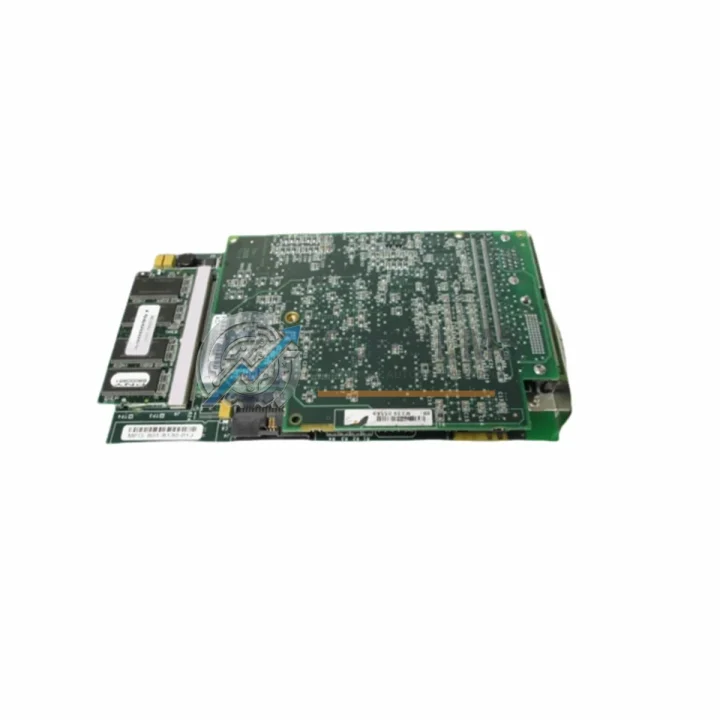

Cognex VPM-8120X-5061-P Replacement for In-Sight 8000

Product Overview

Cognex VPM-8120X-5061-P Replacement for In-Sight 8000: Seamless Transition & Compatible Upgrade

When your production line depends on machine vision for quality inspection, dimensional gauging, or barcode reading, an unplanned failure of the Cognex VPM-8120X-5061-P Vision Processor Module can bring operations to a halt within minutes. Whether you are migrating from an aging In-Sight 5000 or In-Sight 7000 platform, retiring a discontinued In-Sight 8100 or In-Sight 8200 unit, or simply sourcing a direct drop-in replacement for a failed VPM-8120X-5061-P, TOPNLMS stocks verified units ready for immediate dispatch from Xiamen, China.

The VPM-8120X-5061-P is the high-performance vision processor at the heart of the Cognex In-Sight 8000 Series. It integrates a powerful image-processing engine with a GigE Vision–compliant interface, enabling deterministic communication with PLCs, robots, and SCADA systems over standard Ethernet infrastructure. Its compact industrial housing is designed for direct DIN-rail or panel mounting inside control cabinets, making physical installation straightforward even in space-constrained enclosures.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the VPM-8120X-5061-P rarely involves the vision processor alone. In practice, field engineers upgrading from discontinued In-Sight 5000 or In-Sight 7000 platforms also evaluate the associated Cognex In-Sight I/O Expansion Module to preserve existing discrete trigger and strobe wiring without re-terminating every cabinet wire. Where the legacy system relied on a dedicated Cognex In-Sight Serial Interface Cable for RS-232 communication to a Siemens S7-300 or Allen-Bradley MicroLogix PLC, the VPM-8120X-5061-P’s native EtherNet/IP port eliminates that serial bottleneck entirely, though a Cognex EtherNet/IP Communications Module may still be required in mixed-protocol environments.

Power delivery is another common consideration. Many older vision cells were wired to a Cognex In-Sight Power Supply 24 VDC sized for a single camera head. The VPM-8120X-5061-P draws within the same 24 VDC envelope, so existing DIN-rail PSUs typically remain serviceable. However, if the cabinet also houses a Cognex DataMan 8072 Fixed-Mount Barcode Reader or a Cognex In-Sight 9902L Line-Scan Camera on the same power rail, a load audit is recommended before commissioning.

For facilities running PROFINET backbones — common in automotive body-in-white and stamping lines — the VPM-8120X-5061-P integrates directly as a PROFINET IO device, removing the need for a separate Cognex PROFINET Gateway Module that older In-Sight 8100 installations sometimes required. Engineers migrating from a Cognex VisionPro ViDi deep-learning system to a standard rule-based In-Sight 8000 job will find the In-Sight Explorer job-import wizard handles most tool mappings automatically, significantly reducing re-validation time on the production floor.

Where cabinet real estate is tight, the compact form factor of the VPM-8120X-5061-P pairs well with a Cognex In-Sight Micro 1110 remote camera head, allowing the processor to remain in the main control cabinet while the camera is positioned at the inspection point — a topology that simplifies cable management and thermal control in high-ambient-temperature environments such as foundry or glass-processing lines.

Retrofit Guidance FAQ

Q: Can I reuse my existing Cat5e Ethernet cabling?
Yes. The VPM-8120X-5061-P uses a standard RJ-45 GigE interface. Existing Cat5e or Cat6 runs up to 100 m are fully compatible. No re-cabling is required in most retrofit scenarios.

Q: Will my In-Sight Explorer jobs transfer to the new module?
In-Sight Explorer 6.x supports job migration from In-Sight 5000, 7000, and 8000 series. Most vision tools — PatMax, edge detection, OCR, and barcode — migrate without manual re-configuration. A functional verification run on a sample batch is always recommended before full production release.

Q: Does the VPM-8120X-5061-P support EtherNet/IP communication with Allen-Bradley PLCs?
Yes. The module ships with a pre-loaded EtherNet/IP adapter configuration. It appears as a standard I/O device in Studio 5000 Logix Designer. Existing ladder logic that reads inspection results via MSG instructions typically requires only an IP address update.

Q: How does PROFINET integration work?
The VPM-8120X-5061-P includes a PROFINET IO device stack. Import the Cognex GSDML file into TIA Portal or Step 7, assign the device name, and map the result registers to your existing DB structure. No additional gateway hardware is needed.

Q: What are the physical installation clearances?
The module requires a minimum 50 mm clearance on each side for airflow. It mounts on standard 35 mm DIN rail or via four M4 panel-mount screws. Total depth behind the mounting surface is approximately 60 mm — compatible with most standard 200 mm deep control cabinets.

Q: Can the 24 VDC power supply from my old In-Sight 8100 be reused?
In most cases, yes. The VPM-8120X-5061-P operates at 24 VDC ±10% with a typical draw of under 15 W. Verify that the existing PSU has sufficient headroom after accounting for all other loads on the same rail.

Q: What if my legacy system used discrete I/O triggers?
Discrete trigger and strobe outputs are retained on the VPM-8120X-5061-P via its I/O connector. Existing photoelectric sensor trigger wiring can be connected directly without modification in most cases.

Warranty Assurance

Every Cognex VPM-8120X-5061-P unit shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to dispatch, each module undergoes a functional power-on test and visual inspection to confirm physical integrity and basic operational status. Units that do not pass inspection are quarantined and never shipped.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a refund in accordance with the agreed purchase terms. Our after-sales response target is one business day for warranty claims submitted via email. Replacement units are dispatched from our Xiamen warehouse, with DHL Express, FedEx International Priority, and UPI air freight available for time-critical situations.

For procurement teams requiring documentation, we can provide a packing list, commercial invoice, and certificate of conformance upon request. Lead time for in-stock units is typically 1–3 business days from order confirmation to dispatch. Bulk orders and standing purchase agreements are accommodated — contact our sales team to discuss volume pricing and reserved stock arrangements.

TOPNLMS has supplied industrial automation components to manufacturing facilities across Southeast Asia, the Middle East, and Europe. Our focus on accurate part identification, honest stock representation, and responsive after-sales support makes us a reliable partner for both emergency replacement sourcing and planned system modernization projects.
