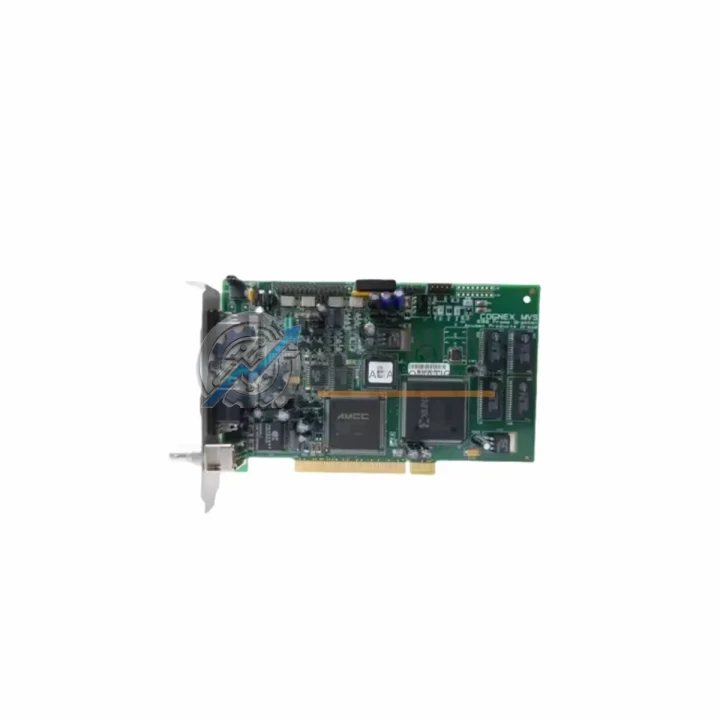

Cognex VPM-8100X-001-P Original Industrial Spare In-Sight Compatible

Product Overview

Cognex VPM-8100X-001-P Original Industrial Spare In-Sight Compatible: Securing System Stability on the Factory Floor

The Cognex VPM-8100X-001-P is an original In-Sight series vision module and image capture card designed for demanding industrial machine vision applications. Whether you are managing a high-throughput automotive assembly line, a pharmaceutical packaging system, or a precision electronics inspection cell, this module serves as the visual intelligence core of your quality control infrastructure. Sourced as a genuine OEM spare, the VPM-8100X-001-P is fully compatible with Cognex In-Sight vision systems and delivers the image acquisition performance required to maintain inspection accuracy and line uptime.

In modern manufacturing environments, unplanned downtime caused by a failed vision module can cascade rapidly — halting conveyors, triggering quality holds, and idling entire production cells. Maintaining a verified spare of the VPM-8100X-001-P in your critical-spares inventory is one of the most cost-effective decisions a maintenance engineer can make. With a direct plug-in replacement available on the shelf, your team can restore full vision system functionality within minutes rather than waiting days or weeks for emergency procurement.

Critical Technical Specs Table

Preventive Maintenance Strategy

A proactive maintenance program for any Cognex In-Sight vision system extends well beyond the image capture module itself. When scheduling a planned inspection or responding to a vision system fault, experienced maintenance teams know that the VPM-8100X-001-P rarely fails in isolation — surrounding components in the same control cabinet and electrical circuit deserve equal attention.

Begin with the In-Sight 8000 series chassis or controller backplane, which provides the power distribution and communication bus for all installed modules. A degraded backplane connector can cause intermittent image capture failures that are easily misdiagnosed as a module fault. Simultaneously, inspect the 24 VDC power supply module feeding the vision system — voltage ripple or insufficient current capacity is a leading cause of premature module failure and image noise artifacts.

The Ethernet communication cable and industrial-grade RJ45 connectors linking the In-Sight system to the host PLC or SCADA network should be checked for continuity and shielding integrity. In high-EMI environments such as welding cells or motor drive cabinets, degraded cable shielding introduces packet loss that disrupts inspection triggers and result handshaking. Consider replacing standard patch cables with shielded Cat6 industrial Ethernet cables rated for continuous flexing if the installation involves cable carriers.

On the I/O side, the discrete I/O module or relay output module that receives pass/fail signals from the vision system is a critical link in the quality control loop. A failed relay contact or stuck I/O channel can cause the line to run uninspected without triggering any alarm. Verify output signal integrity with a multimeter during each planned maintenance window. Similarly, the terminal block assemblies on the I/O wiring side should be inspected for loose terminations and oxidation, particularly in humid or chemically aggressive environments.

If your In-Sight system communicates with a Cognex DataMan barcode reader or a third-party serial communication module (RS-232/RS-485) for part tracking or MES integration, verify that the communication parameters and cable pinouts remain correct after any cabinet work. A disturbed serial connection can silently drop inspection records, creating traceability gaps that only surface during an audit.

For facilities running legacy Cognex In-Sight 5000 or 7000 series systems alongside the 8000 series, maintaining cross-compatible spare modules such as the Cognex In-Sight 5100 or 7200 vision sensors in your spares kit ensures that a single procurement order can cover multiple inspection stations. This consolidated spares strategy reduces carrying costs while maximizing coverage across your installed base.

Finally, the protective lens assembly and illumination ring light associated with the vision station should be cleaned and inspected at every scheduled maintenance interval. Contaminated optics degrade image quality gradually — a problem that the VPM-8100X-001-P’s image capture performance cannot compensate for regardless of module condition. Replacing worn ring lights and cleaning lens covers is low-cost insurance against false-reject rates creeping upward between major maintenance cycles.

Strategic Replacement Solutions

The Cognex VPM-8100X-001-P was designed as a modular, field-replaceable component within the In-Sight 8000 architecture, making it one of the most maintenance-friendly vision modules in its class. When an aging module begins exhibiting symptoms such as intermittent image capture failures, increased inspection cycle times, or communication timeouts, a direct replacement with a verified OEM unit is always the preferred remediation path over attempting board-level repair.

Unlike third-party or refurbished alternatives, an original VPM-8100X-001-P sourced through TOPNLMS undergoes full functional testing prior to shipment, ensuring that the replacement unit performs to factory specification from the moment it is installed. This eliminates the risk of introducing a second fault into a production system — a scenario that is unfortunately common when unverified refurbished modules are used in critical inspection applications.

For facilities operating older In-Sight 8000 series systems that are approaching end-of-support, stocking one or two additional VPM-8100X-001-P units now is a sound lifecycle management decision. As Cognex transitions its product roadmap toward newer vision system platforms, OEM spare availability for legacy modules will tighten. Securing inventory today protects your production lines for an additional three to five years without requiring a full vision system upgrade — a capital expenditure that can be deferred while your existing system continues to deliver reliable inspection performance.

Replacement is straightforward: power down the In-Sight chassis, remove the failed module from its slot, insert the replacement VPM-8100X-001-P, restore power, and reload the saved inspection job from the In-Sight Explorer software. In most installations, the entire swap procedure takes under 15 minutes, making this one of the fastest recovery paths available for a vision system fault.

Support FAQ

Q1: Is the VPM-8100X-001-P supplied as a genuine OEM part or a compatible substitute?
A: Every VPM-8100X-001-P shipped by TOPNLMS is an original Cognex OEM component. We do not supply third-party compatible substitutes for this part number. Each unit is individually tested for full functional performance before dispatch.

Q2: What warranty coverage is provided, and what does it include?
A: All units carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are replaced or refunded at no additional cost to the buyer.

Q3: How do I verify compatibility with my existing In-Sight system before ordering?
A: The VPM-8100X-001-P is designed for use with Cognex In-Sight 8000 series vision systems. To confirm compatibility, check your existing system’s chassis model number and installed module part numbers via the In-Sight Explorer software device list. If you require compatibility confirmation before placing an order, contact our technical team at [email protected] with your chassis model and current module configuration.

Q4: What is the typical lead time and how is the unit packaged for shipment?
A: In-stock units are dispatched within 1–3 business days. Each module is packaged in anti-static ESD-safe materials with protective foam inserts to prevent transit damage. Tracking information is provided upon dispatch. Express shipping options are available for urgent maintenance requirements — contact us to arrange priority fulfillment.
