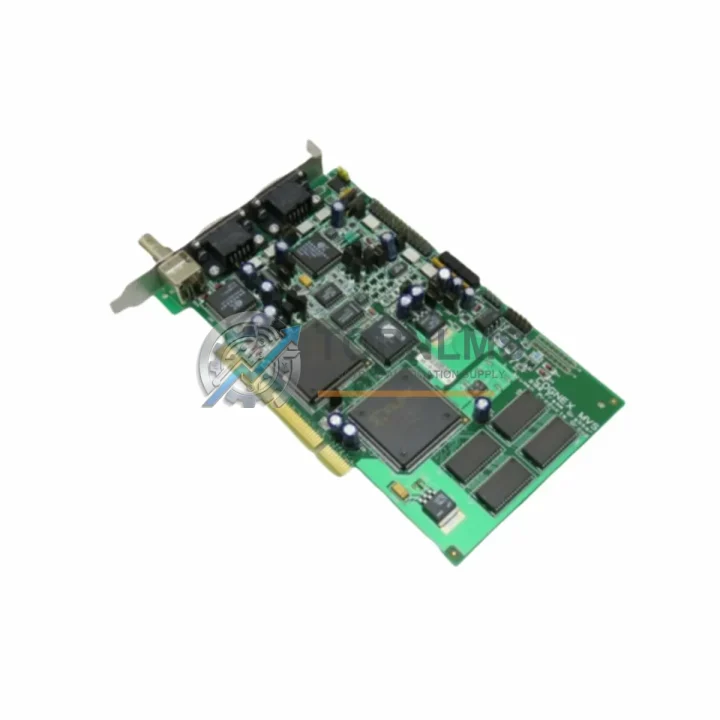

COGNEX VPM-8100Q-000 Replacement/Upgrade for Vision Pro

Product Overview

COGNEX VPM-8100Q-000 Replacement/Upgrade for Vision Pro: Seamless Transition from Legacy Imaging Systems

The COGNEX VPM-8100Q-000 is a high-performance image capture card designed for the COGNEX Vision Pro series — a platform widely deployed across automotive assembly lines, semiconductor inspection cells, pharmaceutical packaging systems, and precision electronics manufacturing. As production environments evolve and original Vision Pro hardware reaches end-of-life or becomes increasingly difficult to source, the VPM-8100Q-000 serves as both a direct replacement for failed units and a validated upgrade path for facilities still operating legacy COGNEX image acquisition hardware.

Many facilities running older COGNEX Vision Pro controllers — including systems originally built around the VPM-8000 series or earlier VisionPro frame grabber configurations — face a common challenge: the original image capture cards are no longer manufactured, and sourcing certified replacements through standard distribution channels has become unreliable. The VPM-8100Q-000 addresses this gap directly. It maintains backward compatibility with the Vision Pro software environment, preserving existing inspection programs, calibration data, and camera trigger logic without requiring a full system rewrite.

From a hardware integration standpoint, the VPM-8100Q-000 installs into the same PCIe slot configuration used by its predecessors, eliminating the need for chassis modification or backplane rework. Facilities that have standardized on COGNEX-compatible industrial PCs or rack-mounted vision controllers will find the physical installation straightforward. The card supports standard Camera Link interface connections, meaning existing Basler, JAI, or DALSA Camera Link cameras already wired into the inspection station can remain in place. No re-cabling of the camera harness is required in most retrofit scenarios.

On the software side, the VPM-8100Q-000 is recognized natively by COGNEX VisionPro runtime environments, including versions commonly deployed in legacy SCADA-integrated inspection cells. Engineers migrating from a failed VPM-8000 series card will find that existing VisionPro job files load without modification, and that trigger timing parameters, exposure settings, and acquisition buffers carry over cleanly. This is particularly valuable in regulated industries where re-validation of inspection programs carries significant cost and schedule risk.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful VPM-8100Q-000 migration rarely involves the image capture card alone. In practice, facilities upgrading from legacy Vision Pro systems often address several adjacent components in the same maintenance window to minimize future downtime risk. The industrial PC or vision controller hosting the card — frequently a COGNEX VisionPro PC-based controller or a third-party industrial PC running VisionPro runtime — may also require attention, particularly if the host system is running an end-of-life operating system no longer supported by current COGNEX driver packages.

Camera Link cables connecting the VPM-8100Q-000 to inspection cameras are a common failure point in aging systems. Replacing the MDR-26 to MDR-26 Camera Link cables during the same retrofit window eliminates a frequent source of intermittent acquisition errors. Similarly, facilities using COGNEX In-Sight vision sensors alongside the VPM-8100Q-000 in a hybrid inspection architecture should verify that the In-Sight firmware version is compatible with the updated acquisition pipeline.

For systems where the VPM-8100Q-000 feeds image data into a broader automation network, the communication path between the vision controller and the line PLC — often a Siemens S7-300, S7-400, or Allen-Bradley ControlLogix — should be reviewed. Industrial Ethernet switches, PROFINET interface modules, or EtherNet/IP communication adapters in the control cabinet may need configuration updates to reflect the new vision controller’s IP addressing or data exchange format. In facilities using DeviceNet or older serial RS-232 handshake protocols for pass/fail signaling, a protocol converter or signal isolator may be required to bridge the legacy PLC I/O to the updated vision system output.

Power supply stability is another consideration. The industrial PC hosting the VPM-8100Q-000 should be fed from a regulated 24 VDC rail or a UPS-backed AC supply to prevent acquisition errors caused by voltage transients during machine cycling. If the existing control cabinet power supply — such as a Phoenix Contact or MEAN WELL DIN-rail unit — is undersized for the updated system load, replacement should be planned concurrently.

Retrofit Guidance FAQ

Q: Can I install the VPM-8100Q-000 without reinstalling VisionPro software?
A: In most cases, yes. The VPM-8100Q-000 uses the same driver architecture as the VPM-8000 series. If the host PC is running a supported VisionPro version (7.x or later), the card is recognized automatically after installation. A driver update may be required for VisionPro 9.x environments.

Q: Will my existing Camera Link cameras work without reconfiguration?
A: Yes. The VPM-8100Q-000 supports Camera Link Base, Medium, and Full configurations. Existing camera timing and pixel clock settings are preserved. No changes to camera firmware or lens calibration are required.

Q: Does the card support the same trigger wiring as the VPM-8000?
A: Yes. The opto-isolated trigger input accepts 5–24 VDC signals, matching the wiring standard used on VPM-8000 series cards. Existing trigger cables from the line PLC or encoder can be reconnected without modification.

Q: What if my inspection program uses custom VisionPro scripts?
A: Custom VisionPro job files (.vpp) are fully portable across VPM-8100 series hardware. No script rewriting is required. Calibration files and ROI definitions are preserved.

Q: Is physical installation space a concern?
A: The VPM-8100Q-000 occupies a standard PCIe full-height slot, identical to the VPM-8000 series. No chassis modification is required. Confirm available PCIe x4 slot availability in the host industrial PC before ordering.

Warranty Assurance

Every COGNEX VPM-8100Q-000 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including image acquisition testing, trigger input validation, and interface continuity checks. Units that do not pass pre-shipment inspection are not dispatched.

In the event of a confirmed hardware defect within the warranty period, TOPNLMS provides replacement dispatch within 3 business days. Our after-sales team is reachable via email and phone for technical support during the commissioning phase, including assistance with driver installation, VisionPro configuration, and trigger wiring verification.

For B2B procurement teams managing planned maintenance schedules or emergency replacement sourcing, TOPNLMS maintains in-stock inventory of the VPM-8100Q-000 and can accommodate urgent orders with expedited shipping from Xiamen. Volume pricing and blanket order arrangements are available upon request.
