Allen-Bradley 1769-AENTR Original Industrial Spare Compact I/O Compatible

Product Overview

Allen-Bradley 1769-AENTR Original Industrial Spare Compact I/O Compatible: Ensuring System Stability in Critical Automation Environments

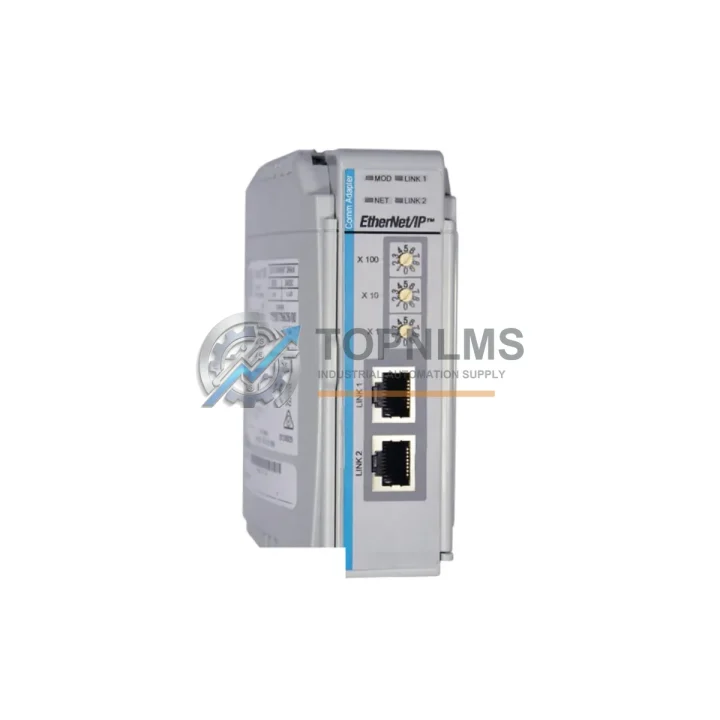

The Allen-Bradley 1769-AENTR is a dual-port EtherNet/IP adapter module designed for the 1769 Compact I/O platform — one of the most widely deployed distributed I/O systems in global industrial automation. As a genuine original spare part, the 1769-AENTR plays a pivotal role in maintaining uninterrupted communication between the control network and field-level I/O devices. Whether you are managing a high-throughput manufacturing line, a process control installation, or a legacy system that must remain operational for years to come, having a verified original 1769-AENTR in your spare parts inventory is a foundational element of any responsible maintenance strategy.

In today’s industrial environment, network-connected I/O adapters are among the most failure-prone components due to their constant exposure to electrical noise, thermal cycling, and firmware-level stress. A failed EtherNet/IP adapter can bring an entire I/O bank offline, triggering unplanned downtime that costs far more than the component itself. Sourcing an original Allen-Bradley 1769-AENTR — not a counterfeit or grey-market substitute — ensures that the module meets Rockwell Automation’s full electrical and firmware specifications, integrates seamlessly with Studio 5000 and RSLogix 5000 environments, and supports the dual-port linear/ring topology that modern DLR (Device Level Ring) networks depend on.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your 1769 Compact I/O System

A disciplined preventive maintenance program for any CompactLogix or MicroLogix-based control cabinet should treat the 1769-AENTR as a tier-one critical spare. When scheduling a planned shutdown or annual inspection, maintenance engineers should simultaneously audit the entire I/O bank. Begin by verifying the status LEDs on the 1769-AENTR — the MS (Module Status) and NS (Network Status) indicators provide immediate diagnostic feedback on adapter health and network connectivity. Any amber or flashing red condition warrants immediate investigation before the next production cycle.

During the same inspection window, it is best practice to check the adjacent 1769-IQ16 (16-point 24VDC digital input module) and 1769-OB16 (16-point digital output module) for signs of terminal corrosion, loose wiring, or blown output channels. These modules share the same backplane bus as the 1769-AENTR and a fault in any one of them can generate misleading diagnostics that appear to originate from the adapter itself.

Power integrity is equally critical. The 1769-PA2 or 1769-PB2 power supply module feeding the Compact I/O bank should be tested for output voltage stability under load. A degraded power supply is a common root cause of intermittent EtherNet/IP communication faults that are often misattributed to the adapter module. Keeping a spare power supply alongside the 1769-AENTR in your storeroom eliminates ambiguity during fault diagnosis.

For installations using analog signals, the 1769-IF4 (4-channel analog input) and 1769-OF2 (2-channel analog output) modules should be calibration-checked annually. Drift in analog I/O can indicate backplane voltage irregularities that stress the adapter’s internal logic. Similarly, if your system uses the 1769-ASCII serial communication module for legacy device integration, verify its baud rate configuration and cable integrity — a serial fault can generate excessive CIP traffic that degrades EtherNet/IP adapter performance.

Network infrastructure components deserve equal attention. The Ethernet switch ports connected to the 1769-AENTR’s dual RJ-45 ports should be inspected for auto-negotiation settings; mismatched duplex configurations are a leading cause of intermittent packet loss in DLR ring topologies. If your facility uses 1783-BMS series managed switches (Stratix 2000 or Stratix 5700), verify that the ring supervisor role is correctly assigned and that RSTP/DLR parameters are consistent across all nodes.

For systems that include 1769-SDN DeviceNet Scanner modules or 1769-SM2 SERCOS motion modules in the same bank, ensure that the total backplane current draw does not exceed the power supply’s rated capacity. Overloaded backplanes are a silent reliability risk that accelerates wear on all modules, including the adapter. A full backplane current audit should be part of every annual maintenance cycle.

Finally, if your control cabinet includes a PanelView Plus 7 HMI communicating over EtherNet/IP to the same CompactLogix controller, verify that the HMI’s connection count does not consume excessive controller connection resources, which can indirectly cause the 1769-AENTR to report connection timeouts. Proactive connection table auditing in Studio 5000 takes less than 30 minutes and can prevent hours of unplanned downtime.

Strategic Replacement Solutions: Minimizing Downtime with Original Spares

The 1769-AENTR supersedes the earlier single-port 1769-AENT adapter, offering backward compatibility with all existing 1769 Compact I/O module banks while adding the second Ethernet port required for DLR ring redundancy. For facilities still operating 1769-AENT units, a planned migration to 1769-AENTR is a low-risk, high-value upgrade that eliminates single points of network failure without requiring any changes to the I/O module configuration, wiring, or controller program logic.

In legacy system life-extension scenarios — where a CompactLogix system must remain operational beyond its original design life — maintaining a stock of original 1769-AENTR adapters is far more cost-effective than a full system migration. The adapter’s firmware is field-upgradeable via the embedded web server, meaning that even older hardware revisions can be brought to current firmware compatibility with minimal effort. This extends the useful service life of the entire I/O bank by years, deferring capital expenditure while maintaining full system functionality.

For multi-site operations or OEM machine builders, standardizing on the 1769-AENTR across all Compact I/O installations simplifies spare parts management, reduces training overhead, and enables cross-site inventory pooling. A single verified original spare can serve as a hot-swap replacement across any 1769 Compact I/O bank in the fleet, regardless of the specific I/O module mix installed in that bank.

All 1769-AENTR units supplied by TOPNLMS are sourced from authorized channels, individually tested for EtherNet/IP communication functionality, and shipped with full documentation. Each unit is covered by a 12-month warranty from the date of shipment, providing procurement teams with the confidence needed to approve spare parts budgets and maintain lean but reliable storeroom inventories.

Support FAQ

Q1: Is the 1769-AENTR a direct replacement for the 1769-AENT?
Yes. The 1769-AENTR is the designated successor to the 1769-AENT and is fully backward compatible with all 1769 Compact I/O module banks. It adds a second Ethernet port for DLR ring topology support. No changes to the controller program or I/O module wiring are required when replacing a 1769-AENT with a 1769-AENTR.

Q2: What pre-shipment testing is performed on each unit?
Each 1769-AENTR is powered up and tested for EtherNet/IP communication functionality, LED status verification, and firmware version confirmation prior to shipment. Units that do not pass functional testing are not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: How should I verify compatibility with my existing CompactLogix controller?
The 1769-AENTR is compatible with all CompactLogix L-series controllers that support the 1769 Compact I/O platform, including the 1769-L16ER, L18ER, L24ER, L27ERM, L30ER, L33ER, and L36ERM. Verify your controller’s catalog number and cross-reference with Rockwell Automation Publication 1769-UM011 for the complete compatibility matrix. If you require assistance, contact our technical team with your controller catalog number and firmware revision.

Q4: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers defects in materials and workmanship under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact TOPNLMS with your order number, a description of the fault symptom, and any available diagnostic data (LED status, Studio 5000 fault codes). Replacement units are typically dispatched within 3–5 business days of claim approval.
