Allen-Bradley 1762-L40BWA Ruggedized PLC Module for Harsh Environments

Product Overview

Allen-Bradley 1762-L40BWA Ruggedized PLC Module for Harsh Environments

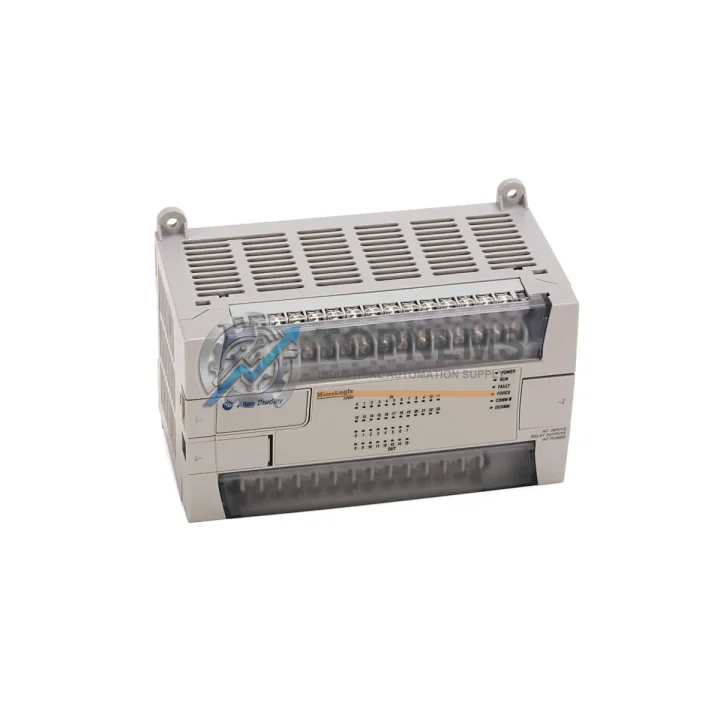

The Allen-Bradley 1762-L40BWA is a 40-point MicroLogix 1200 programmable logic controller engineered for continuous, fault-tolerant operation in the most demanding industrial environments. Combining 24VDC discrete inputs with AC relay outputs in a compact, DIN-rail-mountable housing, this controller delivers the processing power, I/O density, and environmental resilience required by automation engineers working in oil & gas, mining, power generation, water treatment, metallurgy, and heavy manufacturing. Every unit shipped by TOPNLMS is sourced from verified supply channels, individually tested prior to dispatch, and backed by a 12-month replacement warranty — giving procurement teams and maintenance engineers the confidence to specify it as both a primary controller and a critical spare.

Designed to withstand the rigors of real-world industrial sites, the 1762-L40BWA operates reliably across a wide ambient temperature range and demonstrates strong immunity to electrical noise, voltage transients, and electromagnetic interference — conditions routinely encountered in switchgear rooms, motor control centers, and process control cabinets. Its relay output architecture provides galvanic isolation between the controller logic and field-side loads, protecting the CPU from inductive kickback generated by solenoids, contactors, and motor starters. This makes it a natural fit for safety-critical switching tasks where output integrity directly affects personnel protection and process continuity.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1762-L40BWA is rarely deployed in isolation. In a typical MCC or process control cabinet, it operates as the central decision-making node within a layered automation architecture. Expansion I/O modules from the 1762 series — such as the 1762-IQ16 (16-point 24VDC input) and the 1762-OW16 (16-point relay output) — extend the controller’s reach to additional field devices without requiring a larger base unit, preserving panel space while scaling control capacity. For analog process variables such as temperature, pressure, and flow, the 1762-IF4 analog input module integrates directly into the same backplane, enabling closed-loop PID control within the same RSLogix 500 program.

Communication is handled through the onboard RS-232 port, which supports DH-485 networking for peer-to-peer messaging with other MicroLogix controllers or connection to a 1761-NET-AIC Advanced Interface Converter for multi-drop topologies. In installations requiring EtherNet/IP connectivity, the 1761-NET-ENI Serial-to-Ethernet adapter bridges the 1762-L40BWA into modern SCADA and MES networks without hardware replacement. For distributed I/O over longer distances, the controller pairs effectively with FLEX I/O 1794 series remote adapter modules, extending the control network to field junction boxes in hazardous or physically separated areas.

Power integrity is equally critical. The 1762-L40BWA’s internal power supply is designed to tolerate line voltage fluctuations, but in sites with unstable utility power — common in mining and heavy industry — pairing it with an industrial UPS or a 1606-XLP power supply from the Allen-Bradley Pico series ensures ride-through during momentary outages. On the safety side, integration with a 440C-CR30 safety relay or a GuardLogix safety controller allows the 1762-L40BWA to serve as the standard process controller while a dedicated safety layer manages emergency stop, light curtain, and interlocking functions in compliance with IEC 62061 and ISO 13849.

Terminal connectivity within the control cabinet is typically managed through 1492-W series wiring duct and 1492-J series terminal blocks, which are dimensionally compatible with MicroLogix panel layouts and simplify field wiring, inspection, and maintenance. For applications requiring surge protection on I/O lines entering from the field — particularly in outdoor substations or long cable runs — DIN-rail-mounted surge protection devices rated for 24VDC signal lines are recommended upstream of the input terminals.

Application in Critical Infrastructure

In oil and gas upstream operations, the 1762-L40BWA controls wellhead automation panels, managing electric submersible pump (ESP) sequencing, valve actuation, and high-pressure shutdown interlocks. Its relay outputs directly drive solenoid valve coils and motor starter coils rated up to 240VAC, eliminating the need for interposing relays in many standard circuits. The controller’s compact footprint allows it to be installed in NEMA 4X-rated enclosures for outdoor or wash-down environments when paired with appropriate panel sealing.

In municipal and industrial water treatment facilities, the 1762-L40BWA manages pump station sequencing, chemical dosing control, and level-based alarming across multiple lift stations. Its DH-485 networking capability allows multiple units to share process data with a central HMI — such as a PanelView 800 or PanelView Component C400 — providing operators with real-time visibility into distributed pump and valve status without a full DCS infrastructure investment.

Mining and mineral processing environments subject automation hardware to extreme vibration, dust ingress, and wide temperature swings. The 1762-L40BWA’s conformal-coated PCB (on applicable production runs) and IEC 68-2-6 vibration rating make it suitable for conveyor control, crusher sequencing, and ventilation fan management in underground and surface mining operations. In metallurgical plants, it handles furnace zone temperature sequencing, cooling water valve control, and alarm annunciation in environments where ambient temperatures near the control panel can approach the upper operating limit.

Power generation facilities — including diesel genset farms, small hydro plants, and substation auxiliary systems — rely on the 1762-L40BWA for automatic transfer switch (ATS) logic, generator paralleling sequences, and battery charger monitoring. Its relay outputs are well-suited to the 120VAC control circuits common in utility-grade switchgear, and its RS-232 port enables integration with SCADA RTUs via Modbus RTU protocol using third-party protocol converters.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All 1762-L40BWA units sold by TOPNLMS carry a 12-month replacement warranty from the date of invoice. If a unit fails under normal operating conditions within the warranty period, TOPNLMS will ship a replacement unit after fault confirmation. The warranty covers manufacturing defects and latent failures; it does not cover damage caused by incorrect wiring, overvoltage, or physical impact. Warranty claims are processed via [email protected] with a fault description and order reference.

Q2: How is each unit tested before shipment?
Every 1762-L40BWA undergoes a pre-shipment functional test that includes power-on verification, I/O point continuity checks, communication port handshake testing, and visual inspection for physical damage or counterfeit indicators. Units that do not pass all test criteria are quarantined and not shipped. Test records are retained and can be provided upon request for quality-critical procurement.

Q3: Is the 1762-L40BWA compatible with existing MicroLogix 1200 programs and expansion modules?
Yes. The 1762-L40BWA is fully compatible with all 1762 series expansion modules and with programs developed in RSLogix 500. Existing ladder logic programs can be downloaded directly without modification, making it a drop-in replacement for failed units in the field. Firmware version compatibility should be verified for installations using advanced instruction sets; TOPNLMS technical support can advise on firmware matching for specific applications.

Q4: Can TOPNLMS support long-term or repeat procurement for maintenance and MRO programs?
Yes. TOPNLMS maintains buffer stock of high-demand MicroLogix and ControlLogix components to support planned maintenance schedules and emergency breakdown replacements. Blanket purchase orders, scheduled releases, and priority allocation agreements are available for industrial customers with recurring demand. Contact [email protected] or +86 18359293191 to discuss volume pricing, lead times, and consignment stock arrangements.
