Allen-Bradley 1734-ADN Upgrade Solution for Point I/O

Product Overview

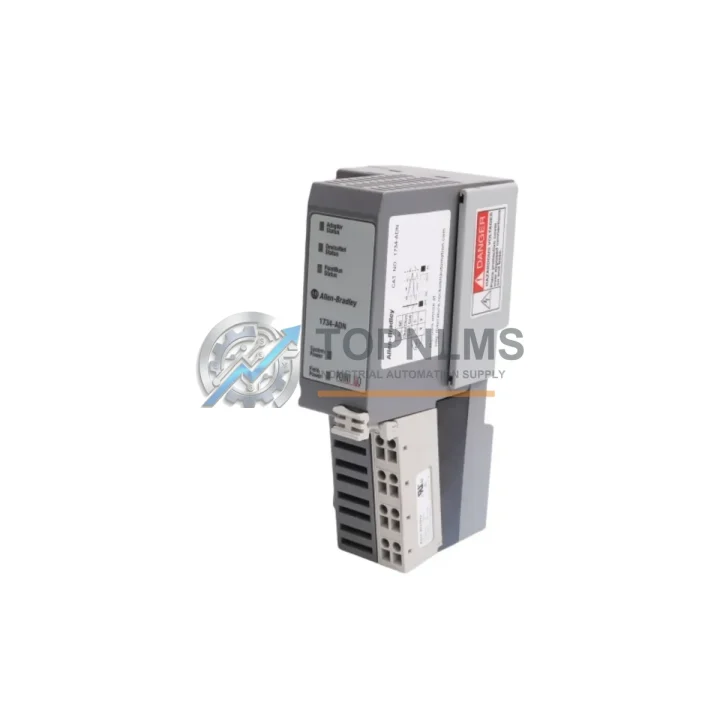

Allen-Bradley 1734-ADN Upgrade Solution for Point I/O

When aging DeviceNet infrastructure begins to limit your production flexibility, the Allen-Bradley 1734-ADN Point I/O DeviceNet Adapter Module delivers a proven, smooth-transition upgrade path for facilities running legacy Rockwell Automation control architectures. Whether you are replacing a failed unit on a live production line or executing a planned migration from an older 1771 or 1746 SLC 500 platform to a modern distributed I/O topology, the 1734-ADN is engineered to slot into your existing DeviceNet network with minimal rewiring and zero programming overhaul.

The 1734-ADN serves as the communication gateway between the DeviceNet fieldbus and the Point I/O terminal base assembly. It supports standard Group 2 Only Slave and UCMM (Unconnected Message Manager) communication modes, making it fully interoperable with any DeviceNet master scanner — including the 1756-DNB DeviceNet Scanner installed in a ControlLogix chassis or the 1769-SDN CompactLogix scanner card. Engineers migrating from older 1747-SDN SLC 500 scanner configurations will find that the 1734-ADN preserves the same node addressing conventions and EDS file structure, dramatically reducing commissioning time on the plant floor.

Physical installation is equally straightforward. The 1734-ADN mounts on a standard 35 mm DIN rail and connects directly to the Point I/O terminal base using the integrated side-bus connector — no additional backplane wiring required. The module draws its logic power from the 1734-EP24DC or 1734-EPAC power distribution modules already present in most Point I/O assemblies, so existing cabinet power budgets remain unaffected. For facilities upgrading from bulkier 1794 FLEX I/O DeviceNet adapters, the compact 1734-ADN footprint frees valuable panel space while maintaining equivalent I/O density when paired with standard 1734 digital and analog I/O modules.

DeviceNet baud rate is selectable at 125 Kbps, 250 Kbps, or 500 Kbps via rotary switches on the module face, matching the network speed of your existing installation without requiring software configuration changes. The module’s MAC ID is also set via rotary switch, eliminating the need for a laptop or programming cable during initial node commissioning — a significant advantage in remote or hazardous-area installations where minimizing on-site tool requirements reduces risk.

For control engineers managing a phased migration, the 1734-ADN integrates seamlessly alongside other Point I/O communication adapters on the same DIN rail segment. A single Point I/O station can host a 1734-AENT EtherNet/IP adapter and a 1734-ADN DeviceNet adapter simultaneously, allowing legacy DeviceNet segments to coexist with modern EtherNet/IP infrastructure during the transition period. This hybrid architecture is particularly valuable in water treatment, food processing, and automotive assembly plants where a full cutover cannot be scheduled during normal production windows.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the 1734-ADN rarely involves the adapter alone. In most retrofit projects, the 1734-ADN is deployed alongside a set of 1734 Point I/O digital input modules (such as the 1734-IB8 8-channel 24 VDC sink input) and 1734-OB8 digital output modules to replace the I/O capacity previously handled by 1794 FLEX I/O assemblies. Analog signal chains are maintained using 1734-IE4C current input modules or 1734-OE4C analog output modules, preserving 4–20 mA loop integrity without signal recalibration.

On the network side, the 1756-DNB DeviceNet Scanner module installed in the ControlLogix 1756 chassis continues to serve as the DeviceNet master, requiring only an EDS file update and a minor RSLogix 5000 / Studio 5000 I/O tree reconfiguration to recognize the new 1734-ADN node. For sites still running SLC 500 controllers with a 1747-SDN scanner, the 1734-ADN is fully compatible and can be added to the existing DeviceNet segment without disrupting other nodes.

Power distribution within the Point I/O station is managed by the 1734-EP24DC power distribution module, which supplies 24 VDC logic power to the adapter and all downstream I/O modules. For larger stations requiring segment isolation, the 1734-EPAC provides an additional power injection point. Cabinet wiring to field devices is terminated on 1734-TB3 or 1734-TB3S removable terminal blocks, which can be pre-wired and swapped during the cutover window to minimize downtime.

For facilities that also need to future-proof their network infrastructure, the 1734-AENT EtherNet/IP adapter can be installed on the same DIN rail segment as the 1734-ADN, enabling a parallel EtherNet/IP path to be commissioned and validated before the DeviceNet segment is decommissioned — a low-risk, zero-production-loss migration strategy endorsed by Rockwell Automation’s migration guides.

Retrofit Guidance FAQ

Q1: Can the 1734-ADN replace a 1794-ADN FLEX I/O DeviceNet adapter directly?
The 1734-ADN and 1794-ADN share the same DeviceNet protocol and EDS file structure, so the scanner configuration in RSLogix 5000 or RSNetWorx for DeviceNet requires only a node swap — not a full redesign. Field wiring connects to 1734 terminal bases rather than 1794 terminal bases, so new terminal blocks are required, but the wire gauge and signal types remain identical. Most retrofit teams complete the physical swap and recommission within a single maintenance window.

Q2: Is the 1734-ADN compatible with third-party DeviceNet masters?
Yes. The 1734-ADN conforms to the ODVA DeviceNet specification and supports standard Group 2 Only Slave and UCMM communication modes. It is compatible with any certified DeviceNet master scanner, including those from Siemens, Omron, and Beckhoff, provided the EDS file is loaded into the master’s configuration tool. This makes it suitable for mixed-vendor control architectures common in large process plants.

Q3: What programming changes are required when migrating from SLC 500 to ControlLogix with the 1734-ADN?
The I/O data mapping in Studio 5000 Logix Designer will need to be updated to reflect the new 1734 Point I/O module slot assignments. However, the DeviceNet node address and baud rate settings on the 1734-ADN are set via rotary switch and do not require software changes. Ladder logic referencing I/O tags will need tag remapping, but the physical signal types and scaling remain unchanged, minimizing engineering rework.

Q4: How does TOPNLMS ensure the 1734-ADN is functional before shipment?
Every 1734-ADN unit is powered on and functionally tested prior to dispatch. Communication initialization, LED status verification, and rotary switch operation are confirmed. Units are shipped in anti-static packaging with full documentation. A 12-month warranty covers any manufacturing or functional defect from the date of receipt, with direct replacement support and responsive after-sales communication via [email protected].

Warranty Assurance

TOPNLMS provides a 12-month warranty on every Allen-Bradley 1734-ADN DeviceNet Adapter Module shipped. Each unit undergoes pre-shipment functional testing including power-on verification, DeviceNet communication initialization check, and physical inspection of connectors, rotary switches, and status LEDs. Units that do not meet operational standards are quarantined and never dispatched.

In the event of a warranty claim, TOPNLMS offers direct replacement support with a target response time of one business day. Replacement units are drawn from tested, in-stock inventory to minimize your production downtime. All warranty communications are handled directly — no third-party intermediaries — ensuring fast, accountable resolution. Long-term supply continuity is supported through maintained stock of 1734 series components, providing procurement teams with a reliable source for both immediate replacements and planned maintenance reserves.

For volume procurement, scheduled delivery, or technical pre-sales consultation, contact our industrial automation team directly.
