ABB SNAT 602 TAC Replacement for ACS600 ACS800 Series

Product Overview

ABB SNAT 602 TAC Replacement for ACS600 ACS800 Series: Seamless Transition & Legacy Drive Compatibility

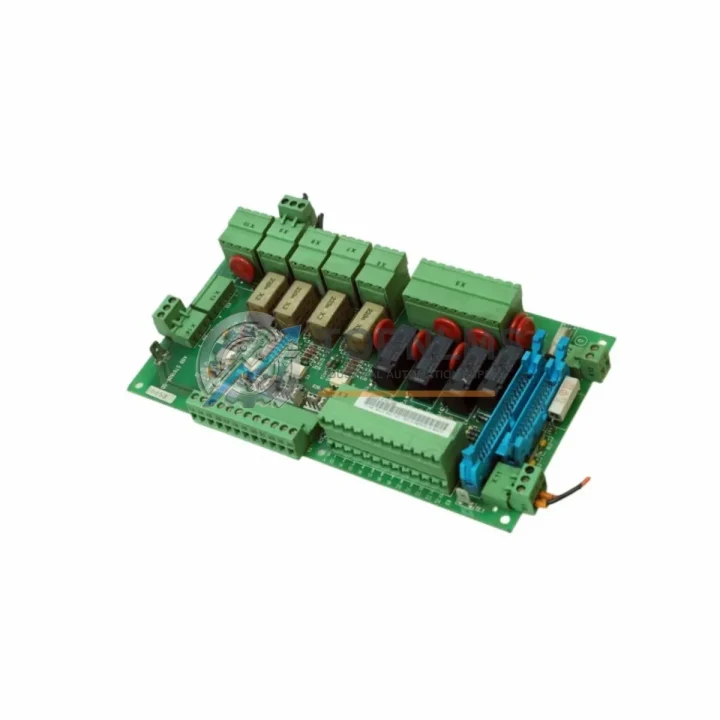

The ABB SNAT 602 TAC is a relay output module originally designed for ABB’s ACS600 and ACS800 variable frequency drive platforms, as well as select DCS800 DC drive systems. As ABB progressively phases out legacy drive control boards, many facilities running ACS600 or ACS800 series drives face the challenge of sourcing reliable, drop-in compatible relay output modules without triggering a full drive replacement or extended production shutdown. TOPNLMS supplies tested, verified SNAT 602 TAC units to support your retrofit, upgrade, or emergency replacement requirements — with stock available for immediate dispatch from Xiamen.

Compatibility Comparison Table

Seamless Upgrade Solutions

Upgrading or replacing the SNAT 602 TAC in an ACS600 or ACS800 drive system rarely happens in isolation. In practice, a relay output module failure often signals broader wear across the drive’s control section. During the retrofit process, engineers frequently inspect and replace adjacent components to ensure system reliability before recommissioning.

The NAMC-11 and NAMC-03 main control boards are the most common companion units evaluated during an SNAT 602 TAC swap — these boards host the drive’s core logic and communicate directly with the relay output module via the internal bus. If the NAMC board shows parameter corruption or communication faults, replacing it alongside the SNAT 602 TAC eliminates the risk of a repeat shutdown.

For drives using fiber-optic communication links, the RDCO-01 or RDCO-02 communication option boards are often inspected at the same time. These modules handle DDCS protocol traffic between the drive and the upper-level control system — whether that’s an ABB AC800M DCS controller, a third-party PROFIBUS master, or a Modbus RTU gateway. Ensuring the RDCO board is functional before reinstalling the relay output module prevents misdiagnosis of communication faults post-replacement.

In multi-drive cabinet installations, the AINT-02 or AINT-11 analog input boards and RDIO-01 digital I/O extension modules are commonly reviewed as part of the same maintenance window. These I/O boards share the same 24 VDC auxiliary power rail as the SNAT 602 TAC, and a relay output fault can sometimes be traced back to a shared power supply issue rather than the module itself. The APOW-01 auxiliary power supply board is therefore a recommended inspection point before finalizing the replacement order.

For facilities migrating from ACS600 to ACS800 architecture, the RMIO-11 motor control board is the functional successor to the older NAMC platform. While the SNAT 602 TAC is compatible with both generations, the RMIO-11 introduces expanded parameter sets and improved fault diagnostics — making it a worthwhile upgrade consideration if the control cabinet is already open for relay module replacement.

Programming cable access is another practical consideration. The NPBA-12 PROFIBUS adapter or a standard USB-to-serial converter with ABB DriveWindow software is typically required to verify relay output assignments in parameter group 14 after module installation. Having the correct programming interface on-site before the maintenance window reduces commissioning time significantly.

Finally, for installations where the ACS800 drive feeds into a process control loop managed by an ABB AC800M or Freelance DCS controller, verifying the relay output signal mapping at the DCS I/O termination panel — including any TB820 or TB840 I/O modules on the DCS side — ensures end-to-end signal continuity after the SNAT 602 TAC replacement is complete.

Retrofit Guidance FAQ

Q: Can I replace the SNAT 602 TAC without rewiring the terminal block?
A: Yes. The SNAT 602 TAC uses the same terminal pinout as the original module. The existing wiring harness can be disconnected, the module swapped, and the harness reconnected without any modification. Always de-energize the drive and discharge the DC bus before handling control boards.

Q: Do I need to re-enter drive parameters after replacing the relay output module?
A: In most cases, no. The relay output assignments are stored in the drive’s NAMC or RMIO control board memory, not on the SNAT 602 TAC itself. After installation, verify parameter group 14 (relay output configuration) using DriveWindow or the drive’s control panel to confirm assignments are intact.

Q: Is the SNAT 602 TAC compatible with both ACS600 and ACS800 drives?
A: Yes. The module is mechanically and electrically compatible with both platforms. The DDCS fiber-optic communication interface and 24 VDC auxiliary power requirements are identical across ACS600 and ACS800 control sections.

Q: What communication protocol does the SNAT 602 TAC use internally?
A: The module communicates via ABB’s proprietary DDCS (Distributed Drive Control System) fiber-optic protocol. This is an internal drive bus — no external fieldbus configuration is required for the relay output module itself.

Q: Can this module be used in a DCS800 DC drive system?
A: The SNAT 602 TAC is primarily designed for ACS600 and ACS800 AC drive platforms. Compatibility with DCS800 depends on the specific control board configuration. Contact TOPNLMS with your drive nameplate data for confirmation before ordering.

Q: How much physical space does the module require in the control cabinet?
A: The SNAT 602 TAC occupies the same board slot as the original module. No additional DIN rail space, cable ducting, or cabinet modification is required for a direct replacement.

Q: What is the lead time for this module?
A: Units in stock ship within 1–3 business days from Xiamen via DHL Express or FedEx International Priority. Estimated transit time to most destinations is 3–7 business days. Contact us for urgent same-day dispatch requests.

Warranty Assurance

Every SNAT 602 TAC unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a pre-shipment functional inspection to verify relay contact continuity, board integrity, and connector condition. Units showing signs of physical damage, burn marks, or failed relay contacts are rejected before packaging.

If a unit develops a fault within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement dispatch or issue a refund based on the customer’s preference. Our after-sales response target is within 24 hours on business days. Warranty claims require the original order reference and a brief fault description — no complex RMA process.

For procurement teams managing critical spare inventories, TOPNLMS can provide batch testing reports, individual serial number records, and packing documentation suitable for IEC/ISO-compliant maintenance records. We support both one-off emergency replacement orders and scheduled bulk procurement for multi-site maintenance programs.

All units are shipped in anti-static packaging with foam protection. Export documentation including commercial invoice, packing list, and country of origin certificate is provided as standard for international shipments.
