ABB AI630 3BHT300011R1 Original Industrial Spare Advant Compatible

Product Overview

ABB AI630 3BHT300011R1 Original Industrial Spare Advant Compatible: System Stability & Industrial Spare Parts Maintenance Value

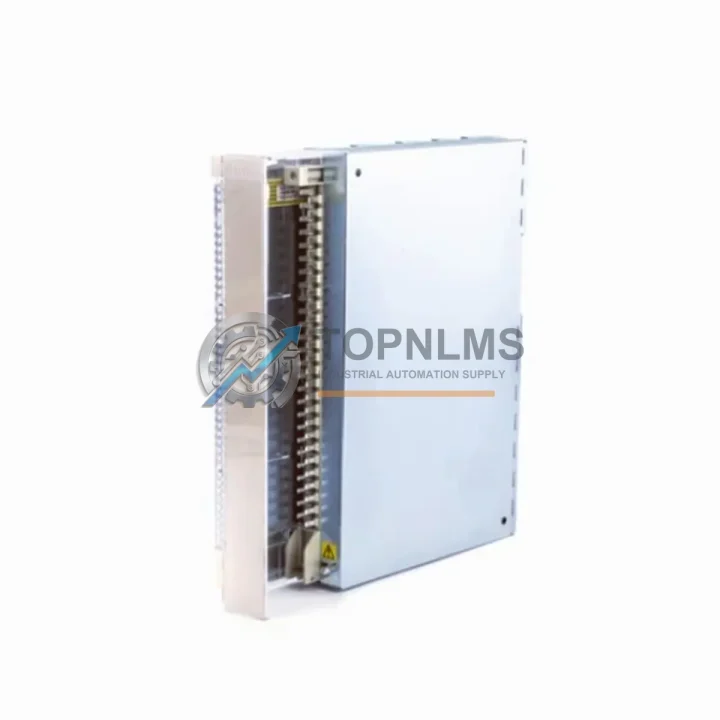

The ABB AI630 3BHT300011R1 is an original 8-channel analog input module engineered for ABB’s Advant and AC500 Distributed Control System (DCS) platforms. In process industries — including oil & gas, chemical, power generation, pulp & paper, and water treatment — the AI630 serves as a critical signal acquisition node, converting field-level 4–20 mA and voltage signals into digital process values that the controller relies on for real-time decision-making. Maintaining a verified, tested spare of this module is not optional for facilities running continuous or semi-continuous processes; it is a fundamental pillar of uptime assurance.

When an analog input module fails, the consequences cascade rapidly. Operators lose visibility into temperature, pressure, flow, and level measurements. Interlock logic may trip the unit, triggering an unplanned shutdown. Recovery time depends entirely on whether a qualified replacement is available on-site. Sourcing a module after the failure has already occurred introduces lead times of days or weeks — a cost that dwarfs the price of a proactive spare. The AI630 3BHT300011R1 stocked at TOPNLMS is fully tested, ships within 24–48 hours of order confirmation, and is backed by a 12-month warranty.

Critical Technical Specs Table

Preventive Maintenance Strategy

A disciplined preventive maintenance program for an Advant or AC500 DCS cabinet extends well beyond replacing a single module. The AI630 3BHT300011R1 sits within an interconnected ecosystem of hardware, and a failure in any adjacent component can mask or amplify an AI630 fault. During scheduled maintenance windows or unplanned shutdowns, experienced maintenance engineers treat the AI630 replacement as an opportunity to audit the entire I/O station.

Begin with the S800 I/O bus terminator and backplane connectors. Oxidized or loose backplane contacts are a leading cause of intermittent channel faults that are frequently misdiagnosed as module failures. While the cabinet is de-energized, inspect the TB820 or TB840 communication interface module that bridges the S800 I/O station to the Advant controller — a degraded communication module will cause all downstream I/O modules, including the AI630, to report communication errors.

Next, verify the AI810 or AI820 analog input modules installed in adjacent slots. In multi-module I/O stations, a failing neighbor module can corrupt the bus and generate false alarms across healthy modules. If the facility uses AO810 or AO820 analog output modules in the same cabinet for control valve positioners or variable-speed drives, these should be function-tested simultaneously — output modules share the same power rail and bus infrastructure as input modules.

Field wiring integrity is equally critical. Inspect the TB805 or TB806 field termination units connected to the AI630. Corroded terminals, loose ferrules, or damaged shielding on the 4–20 mA signal cables will introduce noise and offset errors that appear as process measurement drift. Replace any suspect terminal blocks or signal cables during the same maintenance window to avoid repeat call-outs.

For facilities running CI854 or CI858 PROFIBUS communication modules alongside the S800 I/O, confirm that the PROFIBUS segment termination resistors are correctly installed and that the bus cable impedance is within specification. A poorly terminated PROFIBUS segment causes cyclic communication errors that can trigger spurious I/O module faults. Similarly, if the cabinet includes a PM861 or PM864 processor module, verify that the firmware version is compatible with the AI630 hardware revision installed.

Finally, inspect the 24 VDC power supply modules feeding the I/O station. Undervoltage conditions — even transient ones — are a common root cause of analog input module resets and data corruption. A redundant power supply configuration with automatic switchover is strongly recommended for critical process loops. Stocking a spare power supply module alongside the AI630 3BHT300011R1 ensures that a power-related failure does not extend the shutdown beyond the time required to swap the input module itself.

Strategic Replacement Solutions

The ABB AI630 3BHT300011R1 has been in service in Advant OCS and AC500 DCS installations since the 1990s and 2000s. Many of these systems remain in production today, supported by facilities that have made a deliberate decision to extend the operational life of their control infrastructure rather than undertake a full DCS migration. For these sites, the availability of original, tested spare modules is the single most important factor in maintaining system stability.

The AI630 is a direct drop-in replacement for earlier AI630 hardware revisions. No firmware changes, no re-engineering of the I/O station, and no reconfiguration of the Advant engineering tool (Advant Builder or Control Builder) are required. The module is recognized automatically by the controller upon power-up, and the channel configuration stored in the controller database is applied immediately. This plug-and-play compatibility minimizes mean time to repair (MTTR) and allows maintenance personnel to complete the replacement during a brief process interruption rather than a full planned shutdown.

For facilities managing aging Advant systems, a tiered spare parts strategy is recommended: one AI630 3BHT300011R1 as an active hot spare in the cabinet spare rack, one additional unit in the site warehouse, and a standing purchase order or framework agreement with TOPNLMS to replenish consumed spares within 48 hours. This approach eliminates the risk of a single-point-of-failure in the spare parts inventory and ensures that the second failure — which statistically occurs within months of the first in aging hardware — does not result in an extended outage.

TOPNLMS sources the AI630 3BHT300011R1 directly from verified supply channels. Every unit undergoes functional testing prior to shipment, including channel-by-channel signal verification and bus communication validation. Units are shipped in anti-static packaging with full documentation. Worldwide shipping is available, with express options for urgent maintenance requirements.

Support FAQ

Q1: Is the AI630 3BHT300011R1 compatible with all Advant OCS and AC500 DCS configurations?
The AI630 3BHT300011R1 is designed for ABB Advant OCS and AC500 DCS S800 I/O stations. It is compatible with standard S800 backplanes and communication interfaces including TB820, TB840, and CI854 variants. If your installation uses a non-standard backplane or a very early Advant Master configuration, please contact [email protected] with your system details for compatibility confirmation before ordering.

Q2: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, or physical impact. To initiate a warranty claim, contact [email protected] with your order number, a description of the fault, and any available diagnostic data from the DCS engineering tool. TOPNLMS will arrange return shipping and provide a replacement or refund within the agreed service timeline.

Q3: How is the module tested before shipment, and what documentation is provided?
Each AI630 3BHT300011R1 unit is functionally tested on a compatible S800 I/O station prior to packaging. Testing includes power-up verification, bus communication handshake, and analog channel signal injection across the full 4–20 mA range. A test report is available upon request. The unit ships with original ABB labeling and, where available, original ABB documentation or a TOPNLMS product datasheet.

Q4: What is the recommended inventory strategy for facilities with multiple AI630 modules installed?
For facilities with 3–10 AI630 modules in service, a minimum of 2 spare units is recommended — one in the cabinet spare rack for immediate access and one in the site warehouse. Facilities with more than 10 modules in service should consider a standing replenishment agreement. TOPNLMS offers priority stock reservation for regular customers. Contact [email protected] or call +86 18359293191 to discuss a tailored spare parts supply arrangement.
