ABB AI830 3BSE008518R1 Replacement for S800 I/O Series: Seamless Transition & Legacy System Upgrade

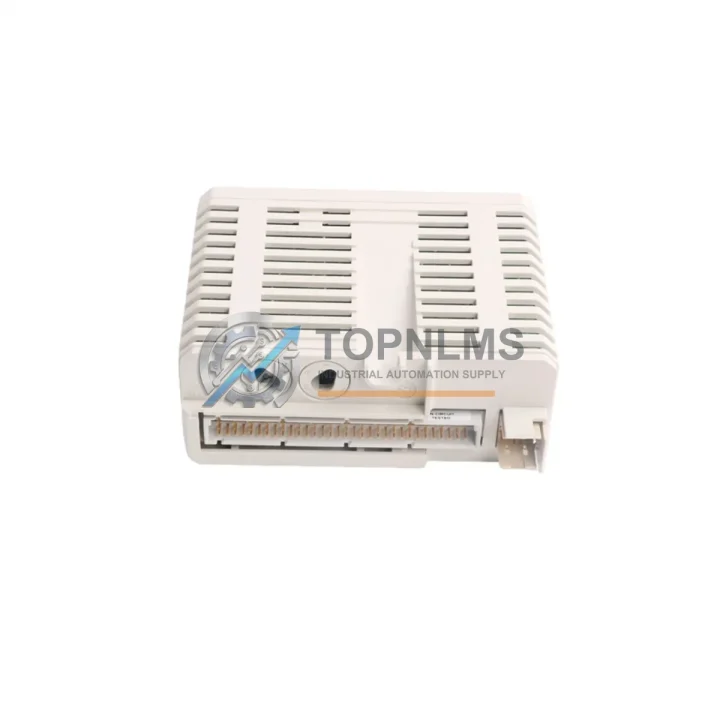

The ABB AI830 (3BSE008518R1) is an 8-channel RTD analog input module designed for the S800 I/O platform, fully compatible with ABB’s AC800M Distributed Control System (DCS) architecture. For facilities running aging AC800M controllers or legacy S800 I/O racks, this module represents the most direct and cost-effective path to restoring full system functionality without requiring a full-scale control system overhaul.

Whether your existing AI830 has failed, been discontinued from your regional distributor’s stock, or you are proactively building a critical spare inventory, TOPNLMS supplies tested, original ABB AI830 3BSE008518R1 modules ready for immediate dispatch. Each unit undergoes pre-shipment functional verification and is backed by a 12-month replacement warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful AI830 replacement or S800 I/O system migration rarely involves a single module in isolation. In practice, engineers sourcing the AI830 3BSE008518R1 are often simultaneously addressing adjacent components within the same AC800M cabinet or S800 I/O rack. The following components are commonly required alongside the AI830 during a retrofit or emergency repair scenario:

The TB820V2 ModuleBus Modem serves as the baseplate and termination unit for the AI830. If the baseplate itself has suffered physical damage or corrosion on the terminal block, replacing it in tandem with the AI830 ensures a clean installation. Similarly, the TB840A redundant baseplate variant is used in high-availability configurations where the AI830 operates in a redundant I/O arrangement.

For systems where the AC800M controller itself is being upgraded or replaced, the PM861A / PM864A processor module is the standard AC800M CPU that interfaces with the S800 I/O bus. Customers migrating from an older PM810 or PM820 controller to a PM861A will find that the AI830 remains fully compatible without any I/O reconfiguration in ABB Control Builder M.

In multi-loop temperature monitoring applications, the AI830 is frequently installed alongside the AI820 8-channel 4–20 mA analog input module and the AI835A HART-enabled analog input module, which handle standard current-loop sensors and HART field devices respectively. This combination covers the full range of process measurement inputs within a single S800 I/O rack.

Communication infrastructure within the control cabinet often includes the CI854A IEC 61850 / PROFIBUS DP communication interface or the CI840A PROFIBUS DP slave module, which connect the AC800M system to field devices, drives, and third-party PLCs. When upgrading the I/O layer, verifying that these communication modules are on current firmware is a standard commissioning step.

Power distribution within the S800 rack is managed by the SD821 / SD822 power supply module. In older installations, degraded power supplies are a common root cause of intermittent I/O faults that are mistakenly attributed to the analog input module itself. Replacing the SD821 alongside the AI830 eliminates this variable during post-replacement commissioning.

For facilities also managing ABB drives or motor control centers integrated into the same DCS, the RDCO-03 DDCS communication adapter or RPBA-01 PROFIBUS adapter for ACS800 / ACS880 drives may be part of the same upgrade scope, particularly when the control system migration involves updating the drive communication topology.

Retrofit Guidance FAQ

Q: Can I replace the AI830 without re-terminating field wiring?
A: Yes. All field wiring connects to the TB820V2 or TB840A baseplate, which remains in place during module replacement. The AI830 module itself plugs into the baseplate without disturbing any terminal connections. This is one of the key advantages of the S800 I/O modular architecture for maintenance scenarios.

Q: Do I need to modify my AC800M application program after replacing the AI830?
A: No program changes are required when replacing a failed AI830 with an identical 3BSE008518R1. The module type, I/O address, and channel configuration remain unchanged. The AC800M controller will recognize the replacement module automatically upon power-up.

Q: Is the AI830 compatible with both Pt100 and Pt1000 RTD sensors?
A: Yes. The AI830 supports Pt100, Pt1000, Ni100, and Cu10 RTD types, as well as direct resistance measurement. Sensor type is configured per channel in Control Builder M and does not require hardware modification.

Q: What is the physical installation clearance requirement?
A: The AI830 occupies a single S800 module slot on the TB820V2 baseplate. No additional clearance beyond the standard S800 rack spacing is required. The module can be hot-swapped in systems configured for redundant I/O without shutting down the controller.

Q: Can the AI830 be used in a PROFIBUS or PROFINET architecture?
A: The AI830 communicates via the S800 ModuleBus backplane and does not connect directly to PROFIBUS or PROFINET. Integration with those fieldbus networks is handled at the AC800M controller level via CI854A or equivalent communication interface modules.

Q: What should I check during post-replacement commissioning?
A: After installing the replacement AI830, verify module status LEDs (RUN green, ERR off), confirm channel diagnostics in Control Builder M, and perform a loop check on each RTD channel against a known reference temperature. Check the SD821 power supply output voltage if any channels show fault status after replacement.

Warranty Assurance

Every ABB AI830 3BSE008518R1 supplied by TOPNLMS is covered by a 12-month replacement warranty from the date of shipment. Our pre-shipment inspection process includes functional power-on testing and visual inspection for physical defects. Modules are packed in anti-static protective packaging suitable for international air and express freight.

In the event of a warranty claim, TOPNLMS provides a direct replacement unit without requiring the customer to return the defective module first in most cases, minimizing system downtime. Our after-sales response target is within 24 hours on business days. We maintain stock of the AI830 and related S800 I/O components to support rapid dispatch for emergency breakdown situations.

For volume procurement, OEM integrators, and EPC contractors requiring documentation packages including test reports, country-of-origin certificates, or customs declarations, please contact our sales team directly.

Stock is available for immediate shipment from Xiamen, China. Express delivery to most destinations in Asia, the Middle East, and Europe is available within 3–7 business days depending on customs clearance.
