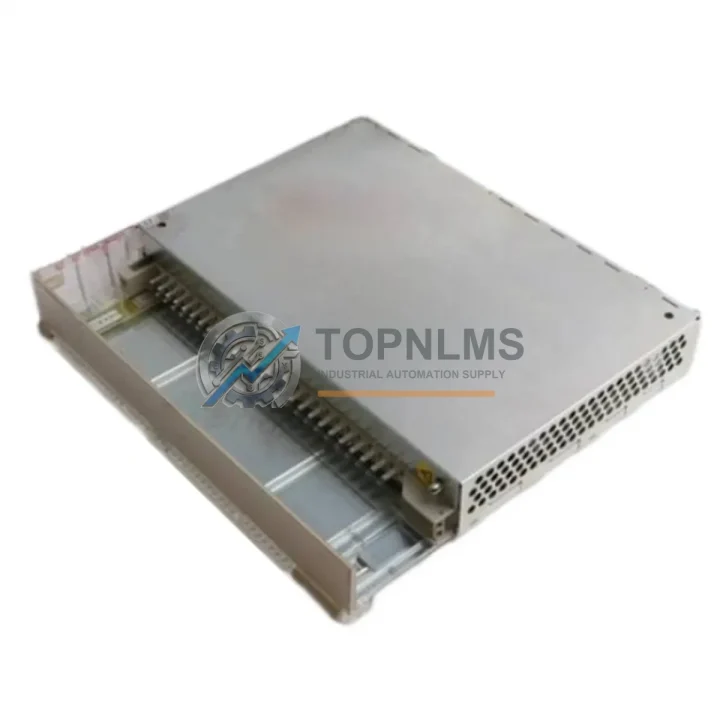

ABB AI610 3BHT300000R1 Ruggedized Analog Input Module

Product Overview

ABB AI610 3BHT300000R1 Ruggedized Analog Input Module for Harsh Environments

The ABB AI610 3BHT300000R1 is an 8-channel analog input module engineered for the ABB AC 800M distributed control system and the S800 I/O platform — one of the most widely deployed DCS architectures in continuous process industries worldwide. Designed to operate reliably under extreme thermal stress, high ambient humidity, persistent mechanical vibration, and intense electromagnetic interference, this module delivers the signal integrity and measurement accuracy that safety-critical industrial processes demand.

In environments where conventional electronics fail — oil refineries operating at sustained high temperatures, offshore platforms exposed to salt-laden air, underground mining installations subject to constant vibration, and chemical plants with corrosive atmospheric conditions — the AI610 3BHT300000R1 maintains stable 4–20 mA and voltage signal acquisition across all eight channels simultaneously. Its robust backplane connector and conformal-coated PCB construction resist moisture ingress and particulate contamination, making it a dependable front-line measurement component in the most demanding control cabinet deployments.

Within the AC 800M architecture, the AI610 integrates seamlessly with the ABB PM864A 3BSE018161R1 processor module and the ABB CI854A 3BSE030220R1 PROFIBUS DP communication interface, enabling high-speed, deterministic data exchange across the control network. The module mounts directly onto the ABB TB820V2 3BSE013208R1 ModuleBus modem base unit, which provides both mechanical support and electrical isolation from the field wiring. For applications requiring redundant signal paths, the AI610 can be paired with the ABB AI615 3BSE015494R1 redundant analog input module to eliminate single points of failure in measurement loops.

Field wiring connects through the ABB TU810V1 3BSE013230R1 termination unit, which decouples module replacement from field cable disturbance — a critical advantage during planned maintenance windows on continuous production lines where any unscheduled downtime carries significant financial and safety consequences. The S800 I/O system’s modular architecture means the AI610 can be hot-swapped without powering down adjacent modules, preserving process continuity in power generation, water treatment, and metallurgical applications.

Electromagnetic compatibility is a primary design consideration for the AI610 3BHT300000R1. In heavy industrial environments where large variable frequency drives — such as the ABB ACS880 series — operate in close proximity to control cabinets, conducted and radiated EMI can corrupt analog measurement signals and trigger spurious alarms. The AI610’s shielded signal paths and differential input architecture suppress common-mode noise, ensuring that 4–20 mA loop signals from pressure transmitters, flow meters, and temperature sensors arrive at the processor with full accuracy. This EMI resilience is equally important in substations and switchgear rooms where high-voltage switching events generate transient interference.

For safety instrumented systems operating under IEC 61511 requirements, the AI610 3BHT300000R1 supports integration with ABB AC 800M HI high-integrity controllers and safety I/O modules, providing the diagnostic coverage and proof-test intervals required for SIL-rated loops. In oil and gas upstream facilities, the module monitors wellhead pressure and temperature signals that feed directly into emergency shutdown logic — where measurement reliability is not a performance metric but a regulatory obligation.

Power supply stability is equally critical to module longevity. The AI610 operates from the S800 I/O system’s 24 VDC rail, typically sourced from an ABB SD831 3BSC610065R1 or equivalent redundant power supply unit. Proper power conditioning, combined with the module’s internal voltage regulation, ensures consistent operation across the full industrial temperature range without signal drift or calibration offset accumulation over extended service intervals.

TOPNLMS maintains verified stock of the ABB AI610 3BHT300000R1 sourced through established industrial supply channels. Every unit undergoes pre-shipment functional verification including channel-by-channel signal path continuity checks and visual inspection of connector integrity. Modules are shipped in anti-static packaging with full traceability documentation. Standard lead time from order confirmation to dispatch is 1–3 business days for in-stock units, with express freight options available for urgent plant maintenance requirements.

Rugged Specifications Table

Comprehensive Protection Solutions

The AI610 3BHT300000R1 is most effective when deployed as part of a fully integrated S800 I/O system. In a typical AC 800M control cabinet, the module operates alongside the ABB AO810V2 3BSE038415R1 analog output module, which drives control valves and positioners based on the measurement data the AI610 acquires. Digital I/O is handled by the ABB DI810 3BSE008508R1 and ABB DO810 3BSE008510R1 modules, which manage discrete field signals such as motor run/stop status and valve open/close feedback.

For process plants requiring functional safety compliance, the AI610 is frequently installed in cabinets that also house the ABB AI830A 3BSE040662R1 RTD input module for temperature measurement and the ABB AI835A 3BSE052604R1 thermocouple input module — both of which share the same S800 I/O backplane infrastructure and are managed through the same AC 800M processor. Communication between the controller and remote I/O stations is routed through the ABB CI854A 3BSE030220R1 PROFIBUS DP interface module, which supports deterministic fieldbus communication at up to 12 Mbit/s even in electrically noisy plant environments.

Power distribution within the control cabinet is typically managed by the ABB SD831 3BSC610065R1 24 VDC power supply, which provides regulated, filtered power to the entire S800 I/O rack. For high-availability installations, a redundant power supply configuration using two SD831 units with an automatic changeover module ensures that a single power supply failure does not interrupt measurement or control functions. This level of power system resilience is standard practice in continuous process industries where unplanned shutdowns carry costs measured in tens of thousands of dollars per hour.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the ABB AI610 3BHT300000R1 monitors wellhead pressure, separator level, and pipeline flow signals that feed into both regulatory control loops and emergency shutdown systems. The module’s galvanic isolation and EMI rejection are essential in these environments, where high-power electrical equipment and long cable runs from remote field instruments create significant interference challenges.

In power generation — including thermal, hydroelectric, and combined-cycle gas turbine plants — the AI610 acquires analog signals from turbine speed sensors, generator excitation systems, and cooling water temperature transmitters. The module’s ability to maintain measurement accuracy across the full industrial temperature range is critical in turbine halls where ambient temperatures can approach the upper limits of standard industrial equipment ratings.

In water and wastewater treatment facilities, the AI610 monitors flow, pH, dissolved oxygen, and turbidity signals across multiple treatment stages. These plants operate continuously, and the S800 I/O system’s hot-swap capability — which the AI610 fully supports — allows module replacement during scheduled maintenance without process interruption.

In mining and metallurgy, the module operates in environments characterized by heavy vibration from crushing and grinding equipment, high ambient dust concentrations, and wide temperature swings between outdoor cable routing and indoor control room installations. The AI610’s conformal coating and robust mechanical design address all of these stressors, providing the long mean-time-between-failure performance that remote mining operations require when spare parts logistics are complex and costly.

In chemical and petrochemical processing, where process safety is governed by IEC 61511 and where measurement failures can trigger hazardous material releases, the AI610’s diagnostic capabilities and compatibility with ABB’s high-integrity AC 800M HI platform provide the functional safety architecture required for SIL 1 and SIL 2 rated measurement loops.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform to ABB’s published specifications within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. The warranty does not cover damage resulting from incorrect installation, overvoltage events beyond the module’s rated tolerance, or physical damage in transit where the original packaging was not used.

Q2: How is each unit tested before shipment?
Every ABB AI610 3BHT300000R1 unit in TOPNLMS inventory undergoes a pre-shipment inspection protocol that includes visual examination of the PCB, backplane connector pins, and housing integrity; channel-by-channel signal path continuity verification; and firmware version confirmation where applicable. Units that do not pass inspection are quarantined and not offered for sale. Inspection records are retained and can be provided upon request for quality-assurance documentation purposes.

Q3: Is the AI610 3BHT300000R1 compatible with all AC 800M processor versions?
The AI610 3BHT300000R1 is compatible with the full range of ABB AC 800M processor modules including the PM864A, PM866A, PM891, and PM895A, provided the system is running a compatible version of ABB’s Control Builder M engineering software. Compatibility with specific firmware versions should be confirmed against ABB’s published S800 I/O compatibility matrix for the target processor generation. TOPNLMS technical support can assist with compatibility verification prior to purchase.

Q4: Can TOPNLMS support long-term and repeat supply of this module?
Yes. TOPNLMS maintains ongoing stock of the ABB AI610 3BHT300000R1 and related S800 I/O components to support both emergency replacement and planned maintenance programs. For customers managing multi-site AC 800M installations, we offer framework supply arrangements with agreed lead times and pricing to simplify procurement planning. Contact our technical sales team at [email protected] or +86 18359293191 to discuss your specific inventory and supply continuity requirements.
