ABB DCS400-PAN-A Original Industrial Spare DCS400 Compatible

Product Overview

ABB DCS400-PAN-A Original Industrial Spare DCS400 Compatible: System Stability and Industrial Spare Maintenance Value

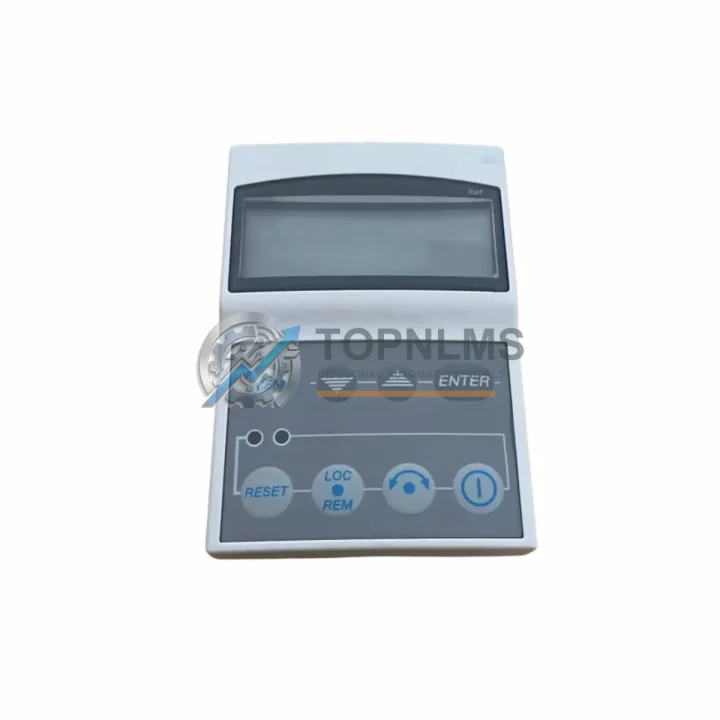

The ABB DCS400-PAN-A is the original remote operator panel and keypad interface designed exclusively for the ABB DCS400 series DC drive platform. In industrial environments where DC motor control systems underpin continuous production lines, paper mills, metal processing equipment, and material handling conveyors, the operator panel is the primary human-machine interface for parameter configuration, drive commissioning, fault diagnostics, and real-time monitoring. Sourcing a genuine ABB DCS400-PAN-A as a certified spare part is a critical decision that directly impacts system uptime, operator safety, and long-term maintenance cost control.

Unlike third-party or counterfeit alternatives, the original DCS400-PAN-A is factory-calibrated to communicate natively with the DCS400 drive’s internal firmware, ensuring full parameter access, accurate fault code readout, and reliable keypad response under industrial temperature and vibration conditions. For maintenance engineers managing aging DC drive installations, having a verified spare panel on the shelf eliminates the risk of extended downtime caused by panel failure — one of the most common single-point failures in DC drive systems.

Critical Technical Specs

Preventive Maintenance Strategy

When a DCS400-PAN-A panel is replaced during scheduled maintenance or emergency repair, experienced maintenance engineers treat the intervention as an opportunity to audit the entire DC drive cabinet. The DCS400 drive system is rarely a standalone component — it operates within a broader electrical architecture that includes upstream power conditioning, motor feedback circuits, and downstream load protection. A panel replacement visit that also addresses adjacent components can prevent the next unplanned shutdown.

Begin by inspecting the ABB DCS400 main control board (SDCS-CON-4), which is the core processing unit that the PAN-A panel communicates with. Firmware version mismatches between the panel and control board are a known source of display errors and parameter lock issues. While the cabinet is open, check the SDCS-POW-4 power supply board for capacitor bulging or discoloration — power board degradation is a leading cause of intermittent drive faults that are often misdiagnosed as panel failures.

The DCS400 I/O extension module should also be inspected for loose terminal connections, particularly on analog reference input channels used for speed setpoint signals. Corroded or intermittent analog inputs produce erratic speed control behavior that operators frequently attribute to panel malfunction. At the same time, verify the condition of the motor feedback encoder cable and encoder interface module — encoder signal degradation causes speed regulation instability that no panel replacement can resolve.

Check the DC bus fuse modules and semiconductor fuses protecting the thyristor bridge. These fuses have a defined service life under repetitive fault conditions and should be replaced on a scheduled basis rather than reactively. Alongside fuse inspection, examine the field supply module for the DC motor — field weakening faults are commonly logged in the DCS400 fault history and are often traceable to field supply component aging rather than drive parameter errors.

For facilities running multiple DCS400 drives in coordinated tension or speed control applications, the SDCS-COM-8 fieldbus communication module (PROFIBUS or DeviceNet variant) should be tested for communication timeout errors. A degraded fieldbus module can cause the operator panel to display communication fault codes that are incorrectly attributed to the panel itself. Finally, inspect the control cabinet terminal blocks and 24VDC auxiliary power supply — loose terminal connections and undervoltage on the auxiliary rail are responsible for a disproportionate share of intermittent panel and drive faults in aged installations.

Stocking the DCS400-PAN-A alongside these related components — control board, power board, I/O module, fuse sets, fieldbus module, and auxiliary power supply — constitutes a complete preventive maintenance kit for DCS400-based DC drive systems and is the most cost-effective approach to lifecycle extension for legacy DC drive installations.

Strategic Replacement Solutions

The ABB DCS400 series has been in service in industrial facilities worldwide for over two decades. Many plants continue to operate DCS400 drives because the cost and complexity of migrating to a modern AC variable frequency drive system — including motor rewinding, control system reprogramming, and process revalidation — far exceeds the cost of maintaining the existing DC drive infrastructure with genuine spare parts.

The DCS400-PAN-A is the only operator panel that provides full native access to all DCS400 drive parameters without requiring a laptop, software license, or fieldbus connection. This makes it indispensable for field commissioning, fault diagnostics, and parameter backup operations in facilities where IT infrastructure access to the drive network is restricted. Replacing a failed or damaged panel with a genuine DCS400-PAN-A restores full operator functionality immediately, without firmware compatibility risks or parameter access limitations associated with non-original alternatives.

For maintenance planners managing a fleet of DCS400 drives, a minimum stock of one DCS400-PAN-A per site — or one per five drives in high-criticality applications — is a standard recommendation. The panel’s compact form factor and low storage requirements make it an economical insurance policy against production loss events that can cost orders of magnitude more than the panel’s procurement price. All units shipped from TOPNLMS are tested for display function, keypad response, and communication integrity prior to dispatch.
