ABB CP651 1SAP551100R0001 Original Spare CP600 Compatible

Product Overview

ABB CP651 1SAP551100R0001 Original Spare CP600 Compatible: Sustaining System Stability in Industrial Environments

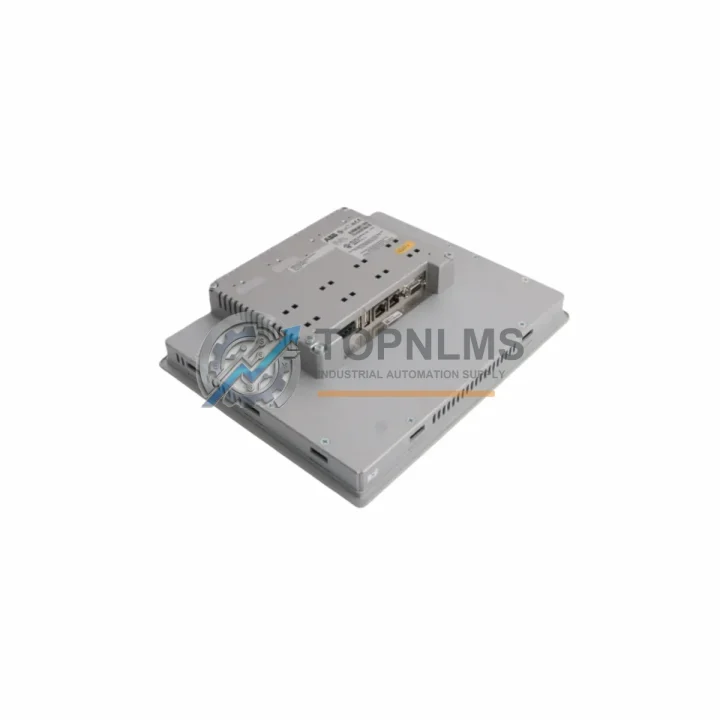

The ABB CP651 (order number 1SAP551100R0001) is a 10.4-inch TFT color touchscreen operator panel from ABB’s CP600 Series, purpose-built for integration with ABB AC500 PLC systems. As a genuine original spare part, the CP651 is a critical component for factories, process plants, and infrastructure facilities that depend on long-term operational continuity. Whether you are managing a scheduled maintenance window, responding to an unplanned panel failure, or building a strategic spare parts inventory, the CP651 delivers the reliability and compatibility that industrial maintenance teams require.

In high-availability production environments, HMI panel failures are among the most disruptive events a maintenance team can face. The CP651’s role extends beyond simple visualization — it serves as the primary operator interface for process control, alarm management, recipe handling, and real-time diagnostics within AC500-based control architectures. Sourcing a verified original spare in advance is the most effective strategy for minimizing mean time to repair (MTTR) and protecting production uptime.

Critical Technical Specs Table

Preventive Maintenance Strategy

A proactive maintenance strategy for any AC500-based control system should treat the CP651 as part of a broader ecosystem of interdependent components. During scheduled panel inspections or control cabinet audits, maintenance engineers should simultaneously evaluate the condition of the AC500 CPU module — typically a PM573-ETH or PM583-ETH — since HMI communication faults are frequently traced to degraded Ethernet ports or firmware mismatches on the controller side rather than the panel itself.

Power supply integrity is equally critical. The CP651 operates on 24 V DC SELV, and fluctuations caused by an aging CP-E 24V/5.0 power supply unit can produce intermittent touchscreen lockups or display artifacts that are often misdiagnosed as panel hardware failure. Replacing or bench-testing the power supply module during the same maintenance cycle eliminates this variable and avoids repeat callouts.

Communication reliability between the CP651 and the AC500 PLC depends on the health of the Ethernet infrastructure within the cabinet. Inspecting or replacing the TK503 programming cable and verifying the integrity of the SD memory card used for project storage are low-cost steps that significantly reduce the risk of post-maintenance startup failures. If the system uses PROFIBUS DP for field device communication, the TB521-ETH communication interface module should also be checked for connector wear and firmware currency.

For installations where the CP651 interfaces with distributed I/O, the condition of the DC532 digital I/O module and AI523 analog input module should be verified during the same inspection window. Signal drift on analog channels or intermittent digital inputs are common precursors to process upsets that operators first notice on the HMI display — making the CP651 the visible symptom of a deeper I/O issue. Stocking a spare DC532 alongside the CP651 is a widely adopted practice in facilities with high I/O channel counts.

Finally, for control cabinets operating in high-vibration or high-humidity environments, the terminal block assemblies and cable ferrules connecting the CP651’s power and communication wiring should be inspected for oxidation and re-torqued to specification. Loose connections at the 24 V DC supply terminals are a leading cause of nuisance panel resets in field installations.

Strategic Replacement Solutions

The CP651 is the direct replacement for aging CP600 Series panels that have reached end-of-service life or suffered physical damage. Its panel cutout dimensions (261 × 201 mm) are identical to earlier CP600 variants, allowing drop-in installation without cabinet modification. The Ethernet-based communication protocol ensures full compatibility with existing AC500 PLC programs — no logic changes or driver updates are required when replacing a like-for-like CP651 unit.

For facilities transitioning from older CP500 or CP400 Series panels, the CP651 represents a cost-effective modernization path. While the physical cutout may require minor adaptation, the CP600 engineering environment (Automation Builder with Panel Builder 600) supports project migration tools that significantly reduce re-engineering time. Maintenance teams can preserve existing alarm structures, trend displays, and recipe databases while gaining the benefits of a current-generation panel with active firmware support.

Stocking the CP651 as a critical spare reduces the risk of extended downtime caused by long lead times on new orders. In facilities where the AC500 PLC controls safety-critical or continuous processes — such as water treatment, chemical dosing, or conveyor systems — the cost of a single unplanned outage typically exceeds the cost of maintaining a spare panel by a significant margin. Our inventory is pre-tested, serialized, and dispatched from Xiamen within 1–3 business days of order confirmation.

Support FAQ

Q1: How do I verify that the CP651 spare is compatible with my existing AC500 PLC program?
The CP651 runs Panel Builder 600 projects and communicates natively with all AC500 PM5xx CPUs via Ethernet. Compatibility is confirmed by matching the Panel Builder 600 project version to the firmware version on the replacement unit. We provide firmware version documentation with every shipment. If your project was built on an older Panel Builder version, our technical team can advise on the appropriate firmware target before dispatch.

Q2: What does the 12-month warranty cover?
All CP651 units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, display failures, communication port faults, and power supply input failures under normal operating conditions. Each unit undergoes pre-shipment functional testing including display verification, touchscreen calibration check, and Ethernet port continuity. Warranty claims are processed within 5 business days of fault confirmation.

Q3: Can I install the CP651 as a direct replacement without modifying the control cabinet?
Yes, for existing CP651 installations. The panel cutout (261 × 201 mm), mounting depth, and 24 V DC power connection are identical. Disconnect power, remove the four mounting clamps, disconnect the Ethernet and USB cables, and reverse the process for the replacement unit. Total replacement time for an experienced technician is typically under 30 minutes. For replacements from other CP600 variants, verify the cutout dimensions before ordering.

Q4: What is the recommended spare parts inventory strategy for CP651-based systems?
For single-line or critical process applications, we recommend maintaining one CP651 spare on-site at all times. For multi-line facilities with three or more AC500 PLC stations using CP651 panels, a ratio of one spare per three installed units is a widely accepted industry benchmark. Pairing the CP651 spare with a spare AC500 CPU module and a spare 24 V DC power supply unit provides comprehensive coverage for the most common failure modes in CP600-based control systems.
