ABB CP420B 1SBP260182R1001 Replacement for AC500: Seamless Transition & Legacy System Upgrade

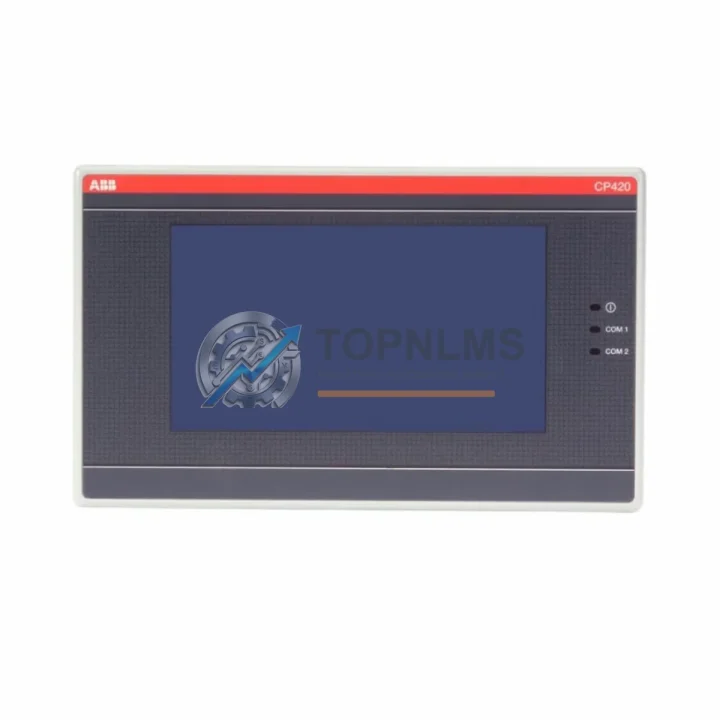

The ABB CP420B (part number 1SBP260182R1001) is a color touch-panel HMI operator interface designed for the ABB AC500 programmable logic controller platform. As industrial facilities phase out aging SCADA terminals, legacy operator panels, and discontinued HMI units, the CP420B serves as a proven drop-in replacement that preserves existing wiring harnesses, cabinet cutout dimensions, and communication configurations — dramatically reducing retrofit engineering time and unplanned downtime.

Whether your facility is migrating from an older ABB CP400 series panel, replacing a failed CP410 or CP430 unit, or upgrading a control cabinet that previously housed a third-party HMI, the CP420B integrates directly into the AC500 ecosystem without requiring PLC program rewrites or new communication drivers. Its 5.7-inch TFT color display, resistive touch interface, and onboard Ethernet port make it a practical upgrade for both greenfield installations and brownfield modernization projects.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful AC500 HMI migration rarely involves the operator panel alone. In practice, engineers replacing a CP420B or upgrading from a discontinued CP410B will simultaneously evaluate the surrounding control architecture. The AC500 PM581-ETH CPU module is the most common controller pairing, and its onboard Ethernet port aligns directly with the CP420B’s Modbus TCP/IP communication channel — no additional communication adapter is needed in most standard configurations.

For installations where the existing field wiring terminates on legacy terminal blocks, the ABB TU515 or TU516 I/O terminal units provide a clean interface between the new panel wiring and the AC500 I/O bus. When the retrofit also involves replacing digital or analog I/O cards, the DC532 digital input module and AX522 analog I/O module are frequently specified alongside the CP420B to complete a full rack modernization without disturbing field cable runs.

In control cabinets where a PROFIBUS DP network connects field devices such as ABB ACS580 or ACS880 variable frequency drives, the CM572-DP PROFIBUS master communication module bridges the AC500 backplane to the existing drive network — preserving drive parameter sets and eliminating the need to reconfigure motor control logic. Similarly, facilities running CANopen device networks can retain their existing cabling by adding the CM574-CN CANopen master module to the AC500 rack.

Power supply integrity is critical during any HMI retrofit. The ABB CP-E 24/5.0 or CP-E 24/10.0 SMPS units are commonly specified to ensure stable 24 V DC rail voltage for both the CP420B panel and co-located I/O modules. Where the existing power supply is undersized or aging, replacing it concurrently with the HMI panel eliminates a common source of post-retrofit instability.

For programming and commissioning, a standard USB-A to USB-B cable connects the CP420B to a laptop running Panel Builder 600, allowing engineers to upload migrated projects, test screen navigation, and validate alarm configurations before the panel goes live. Existing Panel Builder 600 projects from CP410B or CP430B panels can be imported and adapted with minimal rework, significantly reducing commissioning time on site.

Retrofit Guidance FAQ

Q: Can I reuse existing wiring when replacing a CP410B with the CP420B?
A: Yes. The CP420B uses the same 24 V DC power input pinout and the same panel cutout dimensions as the CP410B and CP430B. In most installations, the existing wiring harness, cable glands, and cabinet aperture require no modification. Verify the connector type on your specific installation before proceeding.

Q: Do I need to rewrite my PLC program on the AC500 CPU?
A: No. The CP420B communicates with the AC500 CPU (PM571, PM581, PM591, PM595) using standard Modbus TCP/IP or Modbus RTU protocols. The PLC program running on the CPU does not need modification. Only the HMI project in Panel Builder 600 requires review and possible adaptation for the new display resolution.

Q: Is the CP420B compatible with PROFIBUS DP networks?
A: The CP420B itself connects to the AC500 CPU via Ethernet or serial. PROFIBUS DP connectivity to field devices is handled by the CM572-DP communication module on the AC500 backplane — not directly by the HMI panel. This architecture is unchanged from legacy CP400 series installations.

Q: Will the CP420B fit in my existing control cabinet without modification?
A: The CP420B requires a 192 × 138 mm panel cutout. This matches the standard cutout used by CP410B and CP430B panels. If your cabinet was built for a different HMI brand or a non-standard cutout size, minor sheet metal work may be required. The panel depth is 52 mm behind the mounting surface.

Q: How long does commissioning typically take after physical installation?
A: For a like-for-like replacement of a CP410B or CP430B with an existing Panel Builder 600 project, experienced engineers typically complete upload, testing, and sign-off within 2–4 hours. More complex migrations involving new screen layouts or protocol changes may require additional time.

Q: What if my existing HMI project was built on an older version of Panel Builder 600?
A: Panel Builder 600 v2.x supports project import from earlier versions. ABB provides a migration guide for projects originally developed on Panel Builder 500 or earlier Panel Builder 600 releases. Contact our technical team for pre-sales migration assessment if needed.

Warranty Assurance

Every ABB CP420B 1SBP260182R1001 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-on testing, display inspection, touch calibration check, and communication port verification. Units that do not pass inspection are not shipped.

In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement unit dispatch or full refund processing within agreed lead times. Our after-sales response team is reachable via email and phone for technical queries, warranty claims, and return merchandise authorization (RMA) requests. We maintain buffer stock of CP420B units to support rapid replacement dispatch for critical production environments.

For B2B procurement teams, we can provide test reports, packing lists, and commercial invoices upon request. Bulk orders and long-term supply agreements are supported with priority allocation and dedicated account management.
