Product Overview

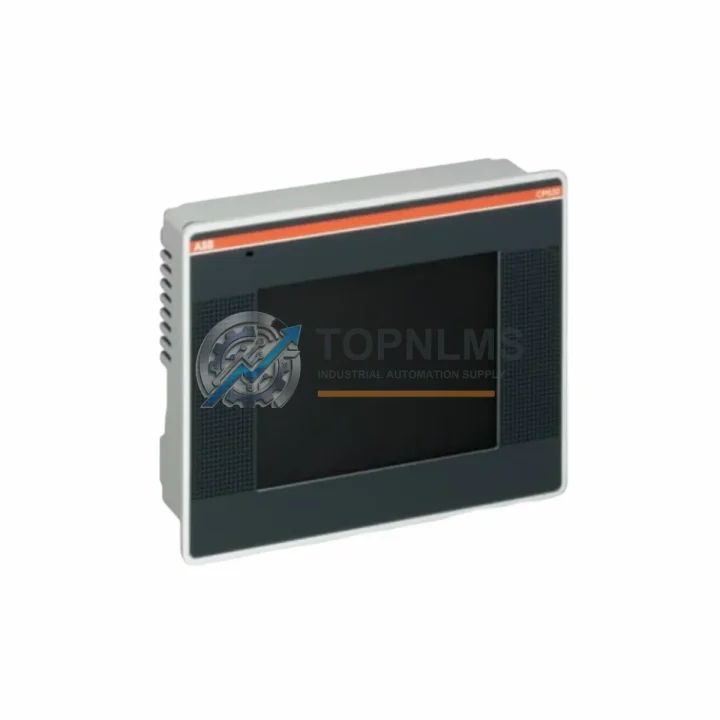

ABB CP630-WEB 1SAP530200R0001 Original Industrial Spare CP600: System Stability Through Genuine Spare Parts

The ABB CP630-WEB (Order Code: 1SAP530200R0001) is a 5.7-inch TFT HMI Web Panel from ABB’s CP600 Series, engineered for continuous-duty industrial environments where operator interface reliability directly determines plant uptime. Whether you are executing a scheduled maintenance window, responding to an unplanned panel failure, or building a strategic spare parts buffer for a long-running automation system, sourcing a genuine CP630-WEB is the most direct path to restoring full operational capability without compromising system integrity or visualization project compatibility.

The CP600 Series has been widely deployed across process industries, discrete manufacturing, building automation, and energy management applications. The CP630-WEB variant adds integrated web server functionality, enabling remote monitoring and diagnostics through standard Ethernet connectivity — a feature that makes it particularly valuable in distributed control architectures where operators need visibility across multiple control nodes without physical access to each panel. Its IP65-rated front panel ensures reliable operation in environments exposed to dust, coolant mist, and wash-down conditions.

In replacement scenarios, the CP630-WEB interfaces natively with ABB AC500 PLC controllers, including the PM573-ETH and PM591-ETH CPU modules, which share the same Ethernet-based communication infrastructure. When a panel replacement is required, the existing Ethernet cabling, IP configuration, and Panel Builder 600 visualization project can typically be retained with minimal rework, significantly reducing the time required to return the system to service and minimizing the risk of configuration errors during a high-pressure maintenance event.

Critical Technical Specs Table

Preventive Maintenance Strategy

A proactive maintenance approach for any CP600-based operator station must extend beyond the HMI panel itself. The CP630-WEB operates within a broader electrical and communication ecosystem, and the long-term reliability of the entire control station depends on the condition of surrounding components inspected and serviced on the same maintenance cycle.

The 24 V DC power supply feeding the panel is one of the most common failure points in aging control cabinets. ABB CP-E 24/5.0 power supply modules are frequently installed alongside CP600 panels and should be inspected — or proactively replaced — during any panel maintenance visit. A degraded power supply causes intermittent resets, display artifacts, and Ethernet communication dropouts that are routinely misdiagnosed as panel faults, leading to unnecessary panel replacements and extended downtime.

Communication infrastructure deserves equal attention. The managed Ethernet switch connecting the CP630-WEB to the AC500 PLC network should be verified for port integrity, cable condition, and switch firmware currency. In older installations where the RS-232 serial port is used for legacy device connections, the TK501 USB-to-serial programming cable should be kept on hand to allow direct PLC access during panel replacement without depending on network availability — a critical contingency during emergency maintenance.

The AC500 I/O modules mounted in the same rack as the CPU — including digital input modules such as the DI524 and analog input modules such as the AI523 — should be checked for terminal tightness and signal integrity during every planned maintenance visit. Loose terminals on I/O modules are a leading cause of intermittent process faults that are difficult to trace remotely and often generate spurious alarms on the CP630-WEB operator interface, complicating fault diagnosis.

Terminal blocks and 24 V DC distribution wiring within the control cabinet should be inspected for insulation degradation, particularly in high-temperature or high-vibration environments. Phoenix Contact or Weidmüller terminal blocks commonly used in ABB-integrated panels should be torqued to specification and checked for corrosion at every annual inspection. Corroded or loose terminals on the 24 V DC rail are a frequent root cause of panel power instability.

For installations where the CP630-WEB is used in conjunction with ABB ACS series variable frequency drives, the Ethernet adapter module connecting the drive to the PLC network should be included in the maintenance checklist. Drive communication faults propagate to the HMI as alarm floods, masking the root cause of a process disturbance and increasing mean time to repair. Verifying drive adapter firmware and cable integrity during scheduled downtime prevents these cascading fault scenarios.

Maintaining a spare SD card or USB memory device pre-loaded with the current Panel Builder 600 visualization project ensures that a replacement CP630-WEB can be commissioned rapidly without requiring a laptop connection to the engineering workstation — a significant operational advantage during night-shift or weekend emergency maintenance when engineering support may not be immediately available.

Strategic Replacement Solutions

The CP630-WEB 1SAP530200R0001 is a direct replacement for any failed or end-of-life CP630-WEB unit installed in an existing CP600 Series operator station. The panel cut-out dimensions and 24 V DC power connection are standardized across the CP600 family, meaning a replacement unit can be installed in the existing cabinet opening without mechanical modification, minimizing installation time and the risk of cabinet damage during an emergency replacement.

For sites where the original CP630-WEB is no longer available through standard distribution channels, the CP635 (1SAP535100R0001) offers an upward-compatible alternative with a larger 7-inch display and the same Ethernet and RS-232 communication ports. The Panel Builder 600 visualization project can be adapted to the larger resolution with minimal engineering effort, and the AC500 PLC communication configuration requires no changes — preserving the existing system architecture while extending the operational life of the control station.

Sourcing a genuine spare CP630-WEB from TOPNLMS ensures that the replacement unit has been tested for power-on functionality, display integrity, and communication port operation prior to shipment. Each unit is shipped with protective packaging suitable for international freight and is accompanied by documentation confirming the 12-month warranty coverage period from the date of dispatch.

For maintenance teams managing multiple ABB CP600 installations across a facility or across multiple sites, consolidating spare panel procurement through a single verified supplier reduces lead time uncertainty, simplifies warranty administration, and enables volume pricing on strategic spare parts buffers. TOPNLMS maintains stock of CP600 Series panels and associated AC500 components — including CPU modules, I/O modules, and power supplies — to support rapid dispatch for urgent maintenance requirements.

Support FAQ

Q1: How do I verify that a replacement CP630-WEB is compatible with my existing Panel Builder 600 project?
The CP630-WEB 1SAP530200R0001 uses the same hardware platform and firmware architecture as all CP630-WEB units. Your existing Panel Builder 600 project file can be downloaded directly to the replacement panel via USB or Ethernet without modification, provided the firmware version on the replacement unit is equal to or newer than the version used during project development. TOPNLMS can confirm the firmware version on request prior to shipment.

Q2: What is the lead time and shipping process for urgent maintenance orders?
In-stock units are dispatched within 1–2 business days. International shipments are handled via DHL Express or equivalent tracked courier services, with estimated transit times of 3–7 business days to most destinations. Expedited shipping options are available for critical maintenance situations — contact [email protected] with your requirement and destination for a specific lead time commitment.

Q3: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, including display failure, communication port malfunction, and power input circuit faults. Warranty claims are initiated by contacting TOPNLMS with a description of the fault and photographic evidence. Confirmed warranty cases are resolved by replacement unit dispatch or full refund at the buyer’s discretion. The warranty period begins from the date of shipment.

Q4: Can the CP630-WEB be used as a spare for other CP600 Series panels such as the CP620 or CP625?
The CP630-WEB is not a direct drop-in replacement for the CP620 or CP625 due to differences in display size and panel cut-out dimensions. However, it can serve as a functional spare in systems where the cabinet opening can be adapted or where a new panel mounting plate is acceptable. For exact cut-out compatibility, the CP635 is the closest larger-format alternative within the CP600 family. Contact TOPNLMS for a compatibility assessment specific to your installation.
