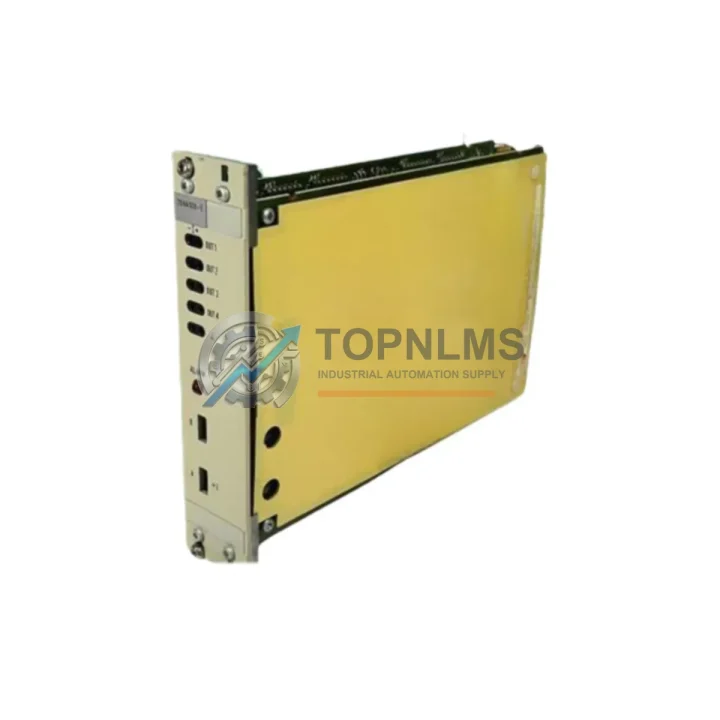

ABB 70AA02B-E Original Industrial Spare ACS800 Compatible

Product Overview

ABB 70AA02B-E Original Industrial Spare ACS800 Compatible: Ensuring System Stability in Drive-Controlled Environments

The ABB 70AA02B-E is an original analog output module designed as a drive option card for ABB’s ACS800 and DCS800 series variable frequency drives. In industrial facilities where precise motor speed control, torque regulation, and process feedback are mission-critical, the integrity of every analog signal path directly determines production uptime. This module provides the analog output interface that allows the drive to communicate real-time process values — speed references, torque feedback, current signals — to downstream instrumentation, PLCs, and SCADA systems. When this module fails or degrades, the entire control loop is compromised, often triggering unplanned shutdowns that cascade across production lines.

Sourced as an original ABB component, the 70AA02B-E is not a third-party substitute. It is manufactured to ABB’s exact electrical and mechanical specifications, ensuring full compatibility with the ACS800 and DCS800 drive platforms without firmware conflicts, signal calibration issues, or mechanical fitment problems. For maintenance engineers managing aging drive systems, stocking an original spare eliminates the risk of compatibility-related failures that often accompany aftermarket alternatives.

Critical Technical Specs

Preventive Maintenance Strategy for ACS800 / DCS800 Drive Systems

A drive system is only as reliable as its weakest component. When scheduling preventive maintenance for an ACS800 or DCS800 installation, the 70AA02B-E analog output module should be evaluated as part of a broader inspection of the entire drive option card assembly. Experienced maintenance teams know that analog signal degradation rarely occurs in isolation — it is often accompanied by wear or drift in adjacent components that share the same electrical environment.

During a scheduled drive inspection, it is advisable to simultaneously verify the condition of the RDIO-01 digital I/O extension module, which handles discrete input and output signals alongside the analog channels. If the drive is equipped with fieldbus communication, the RPBA-01 PROFIBUS adapter module or RCAN-01 CANopen adapter should be checked for connector integrity and firmware version compatibility. These communication modules are frequently overlooked during routine maintenance but are critical to maintaining PLC-to-drive data exchange.

The RAIO-01 analog I/O extension module is a natural companion to the 70AA02B-E — together they form the complete analog signal interface for the drive. If one shows signs of output instability, the other should be tested concurrently. Similarly, the RDNA-01 DeviceNet adapter and RECA-01 EtherCAT adapter modules, where installed, should be inspected for physical damage and communication timeout errors during the same maintenance window.

Beyond the option cards themselves, the ACS800 control board (RMIO board) is the central processing unit of the drive’s control system. Any analog output anomaly that cannot be resolved by replacing the 70AA02B-E option card should prompt an inspection of the RMIO board for capacitor aging, solder joint fatigue, or firmware corruption. Stocking a spare RMIO board alongside the 70AA02B-E significantly reduces mean time to repair (MTTR) in the event of a control board failure.

For facilities running DCS800 DC drive systems, the equivalent DCS800 control board (SDCS-CON-4) and associated SDCS-IOB-3 I/O board should be included in the spare parts inventory. These boards govern the same analog signal paths and are subject to the same thermal and electrical stress cycles as the option modules. Proactive replacement of aging I/O boards before failure prevents the cascading shutdowns that are common in DC drive-controlled processes such as paper mills, metal rolling lines, and crane systems.

Finally, do not overlook the drive’s power supply module and 24 VDC auxiliary power supply that feeds the control electronics. Voltage ripple or supply instability is a leading cause of analog output drift and intermittent signal errors — symptoms that are often misdiagnosed as option card failures. Including a spare power supply module in your maintenance kit ensures that signal integrity issues can be diagnosed and resolved at the power source level, not just at the module level.

Strategic Replacement Solutions

The ABB 70AA02B-E is a legacy option card that has been in service across ACS800 and DCS800 installations for over two decades. Many facilities are still operating drives from the early 2000s, and the availability of original spare parts for these platforms is diminishing as ABB transitions its product portfolio toward newer drive generations such as the ACS880 and DCS880 series.

Securing original 70AA02B-E modules now — before they become scarce — is a strategic inventory decision. Unlike third-party replacements, original ABB option cards require no reconfiguration of drive parameters, no signal recalibration, and no firmware updates. The replacement procedure is a direct swap: power down the drive, remove the faulty module from the option slot, insert the replacement, restore power, and verify analog output signals against the process baseline. Total replacement time for a trained technician is typically under 30 minutes, minimizing production downtime to the absolute minimum.

For facilities considering a phased migration from ACS800 to ACS880 platforms, maintaining a stock of 70AA02B-E modules provides a cost-effective bridge strategy. The existing ACS800 drives can continue operating reliably with original spare parts while the capital budget for new drive procurement is planned and approved. This approach avoids the forced emergency replacement of entire drive units due to unavailable spare parts — a scenario that carries significantly higher costs and longer lead times than a planned module replacement.

Original modules also carry full traceability. Each 70AA02B-E unit shipped from TOPNLMS is sourced from verified supply channels, undergoes functional testing before dispatch, and is accompanied by a 12-month warranty. This traceability is essential for facilities operating under ISO 9001 quality management systems or IEC 61511 functional safety frameworks, where spare part provenance must be documented and auditable.

Support FAQ

Q1: Is the ABB 70AA02B-E compatible with both ACS800 and DCS800 drive series?
Yes. The 70AA02B-E is designed as a universal analog output option card for both the ACS800 AC drive series and the DCS800 DC drive series. It installs into the standard option slot on the drive’s control board and is recognized automatically by the drive firmware without additional configuration in most standard applications. Always verify your specific drive firmware version against ABB’s option card compatibility matrix before installation.

Q2: What testing is performed before shipment?
Every 70AA02B-E unit undergoes a functional test prior to dispatch. This includes verification of analog output signal levels across the full 0–20 mA and 0–10 V output ranges, isolation integrity testing, and visual inspection for physical damage. A test report is available upon request for quality-critical procurement processes.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or operation outside the specified environmental parameters. Warranty claims are processed with a replacement unit dispatched upon confirmation of the defect.

Q4: How should I manage spare parts inventory for aging ACS800 / DCS800 systems?
For facilities with three or more ACS800 or DCS800 drives in service, we recommend maintaining a minimum of one 70AA02B-E module per drive cluster as a hot spare. Given the diminishing availability of legacy ABB option cards, a forward-looking procurement strategy — purchasing 2–3 units per site — provides insurance against supply chain disruptions and eliminates emergency sourcing lead times during unplanned shutdowns. Combine this with spares for the RMIO control board and RAIO-01 analog I/O module for a comprehensive drive spare parts kit.
