ABB 3HAC025917-001 DSQC 652 Original Industrial Spare IRC5 Compatible: System Stability and Industrial Spare Parts Maintenance Value

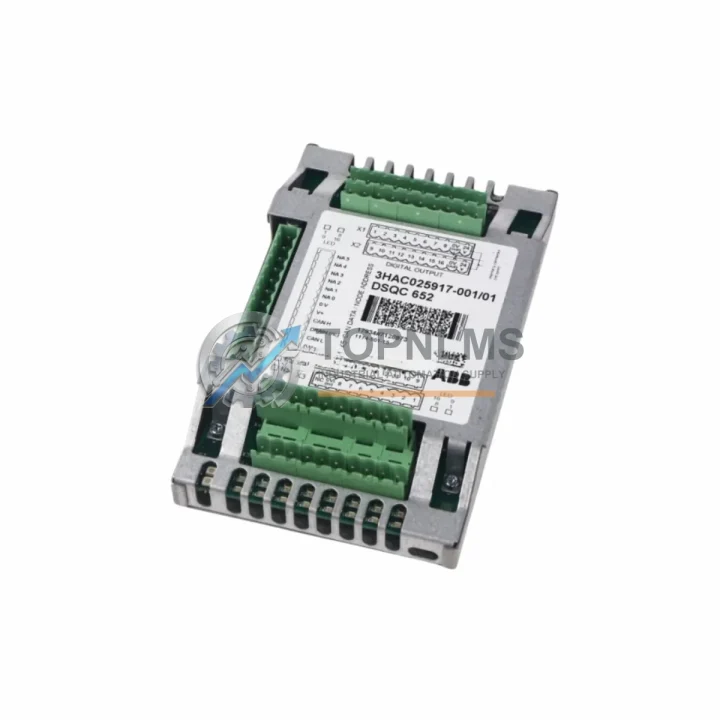

The ABB 3HAC025917-001, commercially designated as the DSQC 652 Digital I/O Module, is a factory-original spare part engineered for ABB IRC5 robot controller cabinets. In high-throughput manufacturing environments — automotive body shops, metal fabrication lines, food and beverage packaging, and electronics assembly — the IRC5 controller is the nerve center of robotic cell operations. When a digital I/O module fails or degrades, the entire robotic cell halts, triggering unplanned downtime that cascades across production schedules. Stocking a verified original 3HAC025917-001 is not merely a procurement decision; it is a risk-management strategy that directly protects OEE (Overall Equipment Effectiveness) and production continuity.

Critical Technical Specs

Preventive Maintenance Strategy

Experienced maintenance engineers know that a digital I/O module failure rarely occurs in isolation. The DSQC 652 sits at the intersection of the robot controller’s signal exchange with field devices — safety mats, grippers, conveyors, welding guns, and vision systems. When scheduling a planned shutdown to replace the 3HAC025917-001, it is best practice to conduct a comprehensive inspection of the entire IRC5 cabinet and associated electrical circuit.

Begin with the DSQC 661 (3HAC026254-001) power distribution board, which supplies regulated 24 VDC to the I/O modules; a marginal power supply is a common root cause of intermittent I/O faults. Inspect the DSQC 663 (3HAC025338-001) axis computer for firmware currency and connector integrity. Check the DSQC 679 (3HAC026254-001) main computer unit for memory health and communication status. While the cabinet is open, examine the DSQC 662 (3HAC025338-001) rectifier unit for capacitor bulging or thermal discoloration — rectifier degradation accelerates I/O module wear.

On the field wiring side, inspect all Phoenix Contact or equivalent terminal blocks connected to the DSQC 652’s I/O terminals for oxidation, loose crimps, or insulation damage. Verify the DeviceNet trunk cable and drop cables for continuity and proper termination resistors (121 Ω at each end of the trunk). If the robot cell uses a DSQC 643 (3HAC025338-001) fieldbus adapter for PROFIBUS or EtherNet/IP integration, confirm its configuration matches the updated I/O map after module replacement.

For cells with safety-rated I/O, cross-check the DSQC 647A (3HAC025338-001) safety I/O module alongside the standard DSQC 652 replacement — safety modules share the same 24 VDC bus and a degraded bus voltage affects both. Finally, review the teach pendant (FlexPendant) cable and connector for wear; a damaged pendant cable can generate spurious I/O signals that mimic module faults, leading to misdiagnosis and unnecessary module replacement.

Proactive spare parts planning should also include the DSQC 656 (3HAC025338-001) I/O module for analog signal channels if your cell uses analog sensors or proportional valves, and a set of ABB-compatible 24 VDC fuse modules for the cabinet’s fuse terminal strips. Maintaining a minimum of one spare DSQC 652 per robot cell — or one per three cells in high-density installations — is the industry-standard recommendation for facilities targeting less than 2 hours of unplanned downtime per quarter.

Strategic Replacement Solutions

The 3HAC025917-001 DSQC 652 has been in active production and field service for over a decade, making it one of the most widely deployed digital I/O modules in ABB IRC5 installations globally. Many facilities operating IRC5 R2004, R2005, and R2009 generation controllers face the challenge of sourcing genuine modules as original supply chains tighten. Substituting with non-original or refurbished modules introduces firmware incompatibility risks, DeviceNet address conflicts, and potential safety system non-compliance — all of which can void the robot’s CE certification in regulated markets.

Sourcing a factory-original 3HAC025917-001 from a verified industrial spare parts supplier eliminates these risks. The module is a direct plug-and-play replacement: mount on the existing DIN rail position, reconnect the DeviceNet drop cable, restore the node address via the onboard rotary switches, and perform a cold restart of the IRC5 controller. No firmware flashing or system reconfiguration is required in standard replacement scenarios, reducing mean time to repair (MTTR) to under 30 minutes for a trained technician.

For facilities managing legacy IRC5 cabinets alongside newer OmniCore-based cells, maintaining a dedicated DSQC 652 spare pool ensures that older robot cells remain operational without forcing a premature and costly controller upgrade. This strategy extends the productive life of existing capital equipment by 3–5 years, delivering measurable ROI against the cost of a full IRC5-to-OmniCore migration.

Support FAQ

Q1: Is the 3HAC025917-001 compatible with all IRC5 controller variants?
The DSQC 652 is compatible with the IRC5 Single Cabinet Controller, IRC5 Dual Cabinet Controller, and IRC5 Panel Mounted Controller across all production years (R2004 onward). It is not compatible with the older S4C+ or the newer OmniCore C30/C90 platforms. If you are unsure of your controller generation, reference the type plate inside the cabinet door or contact us with your robot serial number.

Q2: What pre-shipment testing is performed on each unit?
Every 3HAC025917-001 shipped from our inventory undergoes a full functional test: all 16 digital inputs and 16 digital outputs are individually verified under 24 VDC load, DeviceNet communication is confirmed at 125/250/500 kbps, and the module’s onboard LED indicators are checked for correct status reporting. A test report is available upon request.

Q3: How should I manage spare DSQC 652 modules in a multi-robot facility?
For facilities with 5 or more IRC5 robots, we recommend maintaining a minimum stock of 1 spare DSQC 652 per 3–5 robots, stored in anti-static packaging in a climate-controlled environment (10–40 °C, <85% RH non-condensing). Rotate stock on a FIFO basis and perform a bench test on stored spares annually to confirm functionality before they are needed in an emergency.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions as specified in the ABB DSQC 652 technical manual. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact. Warranty claims are processed within 5 business days of receiving the returned unit, with a replacement shipped immediately upon fault confirmation.
