ABB 3BHE033067R0102 Original Industrial Spare AC800M Compatible

Product Overview

ABB 3BHE033067R0102 Original Industrial Spare AC800M Compatible: System Stability & Industrial Spare Maintenance Value

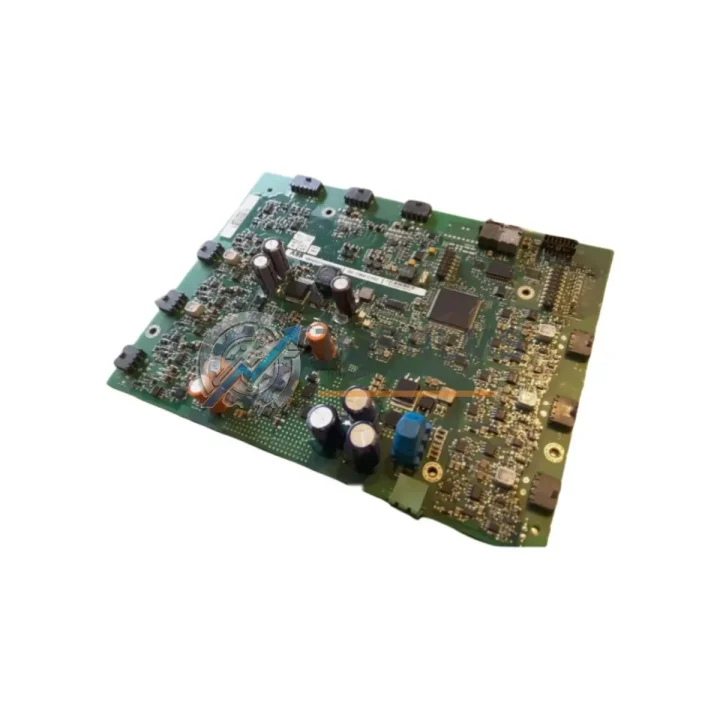

The ABB 3BHE033067R0102 is a genuine digital I/O module engineered for the AC800M controller platform within ABB’s Symphony Plus Distributed Control System (DCS). In process-critical environments — power generation, oil & gas, chemical processing, pulp & paper, and water treatment — the integrity of every I/O channel directly determines plant uptime. Sourcing an original spare rather than an aftermarket substitute eliminates compatibility risk, preserves firmware handshake integrity, and ensures that your DCS engineering station recognises the module without reconfiguration overhead.

When a digital I/O module fails mid-shift, the cost is rarely limited to the component itself. Unplanned shutdowns cascade into lost production, emergency labour, and expedited logistics. Holding a verified original 3BHE033067R0102 in your on-site spares cabinet converts a potential multi-day outage into a sub-hour swap, restoring loop integrity and returning the process to automatic control with minimal disruption.

Critical Technical Specs

Preventive Maintenance Strategy

A digital I/O module does not operate in isolation. Its reliability is inseparable from the health of every component sharing the same control cabinet, power rail, and communication bus. When scheduling a planned maintenance window to inspect or replace the 3BHE033067R0102, experienced maintenance engineers treat the intervention as an opportunity to audit the surrounding system comprehensively.

Begin with the AC800M processor module (such as the PM864 or PM865) that governs the I/O bus. Verify firmware version, battery backup status, and CPU load. A degraded processor can generate spurious I/O faults that are incorrectly attributed to the module itself. Alongside the processor, inspect the S100 I/O bus termination resistors and backplane connectors for oxidation or mechanical stress — poor backplane contact is a leading cause of intermittent channel faults in high-vibration environments.

The 24 VDC power supply module feeding the I/O rail deserves equal attention. Voltage ripple beyond specification stresses digital output drivers and shortens module service life. If the power supply is approaching its rated operating hours, scheduling a proactive replacement alongside the I/O module eliminates a second unplanned outage within the same maintenance cycle. Similarly, the redundant power supply unit (PSU), if fitted, should be load-tested to confirm automatic switchover capability.

Field wiring termination is another critical checkpoint. Terminal blocks and marshalling panels connected to the 3BHE033067R0102’s digital channels should be inspected for loose screws, corroded ferrules, and insulation breakdown — particularly in humid or chemically aggressive plant areas. Replacing worn terminal blocks during the same outage window prevents nuisance trips after the new module is commissioned.

For systems relying on inter-cabinet communication, verify the integrity of PROFIBUS or Ethernet communication modules (such as the CI854 or CI858 communication interface units) that link the AC800M to field devices and SCADA. A communication module with degraded optical transceivers or worn RJ45 ports can introduce latency that masks genuine I/O response issues. Checking signal isolators and surge protection devices on critical digital input channels is equally prudent — these components absorb transient energy that would otherwise reach the module’s input circuitry.

Finally, review the relay output modules and solid-state relay (SSR) assemblies downstream of the digital outputs. A welded relay contact or a failed SSR can back-feed voltage onto the module’s output channel, causing diagnostic alarms or permanent channel damage. Replacing suspect relay modules during the same planned outage is far more cost-effective than responding to a secondary failure weeks later.

Maintaining a structured spares inventory that includes the 3BHE033067R0102 alongside complementary modules — processor units, power supplies, communication interfaces, and relay modules — is the foundation of a resilient preventive maintenance programme. Plants that adopt a minimum two-unit buffer for critical I/O modules consistently achieve lower mean time to repair (MTTR) and higher overall equipment effectiveness (OEE).

Strategic Replacement Solutions

The 3BHE033067R0102 is designed as a direct replacement for earlier-generation digital I/O modules within the AC800M S100 I/O family. Plants running legacy Symphony Harmony or Advant OCS control architectures that have migrated to Symphony Plus benefit from the module’s backward-compatible signal handling, which preserves existing field wiring and loop configurations without requiring re-engineering of the control application.

For maintenance teams managing ageing DCS infrastructure, the strategic value of stocking original ABB spare parts extends beyond the immediate repair. Original modules carry factory calibration data, certified EMC compliance, and full traceability — attributes that matter during regulatory audits and insurance assessments. Aftermarket or refurbished alternatives may pass initial bench tests but lack the long-term reliability data that justifies their use in safety-instrumented or high-availability loops.

When a 3BHE033067R0102 is replaced in the field, the recommended procedure involves powering down the affected I/O rail segment, documenting channel assignments, extracting the module from the S100 rail, inserting the replacement, and performing a channel-by-channel functional verification before returning the loop to automatic. The entire process, when a pre-tested spare is available, typically takes under 45 minutes — compared to days of downtime waiting for emergency procurement.

For plants planning a phased DCS modernisation, the 3BHE033067R0102 provides a cost-effective bridge strategy: maintaining the existing AC800M architecture with genuine spares defers capital expenditure while preserving system stability, buying engineering teams the time needed to plan a structured migration rather than a crisis-driven replacement.

Support FAQ

Q1: Is the 3BHE033067R0102 compatible with all AC800M controller variants?
The 3BHE033067R0102 is designed for the AC800M S100 I/O platform and is compatible with PM856, PM860, PM861, PM864, and PM865 processor modules operating under Symphony Plus. Compatibility with specific firmware versions should be verified against your DCS engineering station’s hardware catalogue prior to installation. Our technical team can assist with compatibility confirmation before shipment.

Q2: What testing is performed before shipment?
Every unit undergoes functional power-on testing and channel integrity verification prior to dispatch. Modules are inspected for physical condition, connector integrity, and firmware readability. A test report is available upon request. All units are shipped in anti-static packaging with appropriate cushioning to prevent transit damage.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of invoice. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, we arrange collection, inspection, and replacement or refund within an agreed timeframe.

Q4: How should I manage spares inventory for critical DCS modules?
Industry best practice recommends holding a minimum of one-to-two units of each critical I/O module type for systems where unplanned downtime carries significant production or safety consequences. For the 3BHE033067R0102, we recommend assessing the number of installed units in your plant, the module’s historical failure rate, and your acceptable MTTR target. Our team can assist with a spares rationalisation review and volume pricing for multi-unit orders.
