Honeywell 942-M0A-2D-1G1-220S Replacement for 942 Series

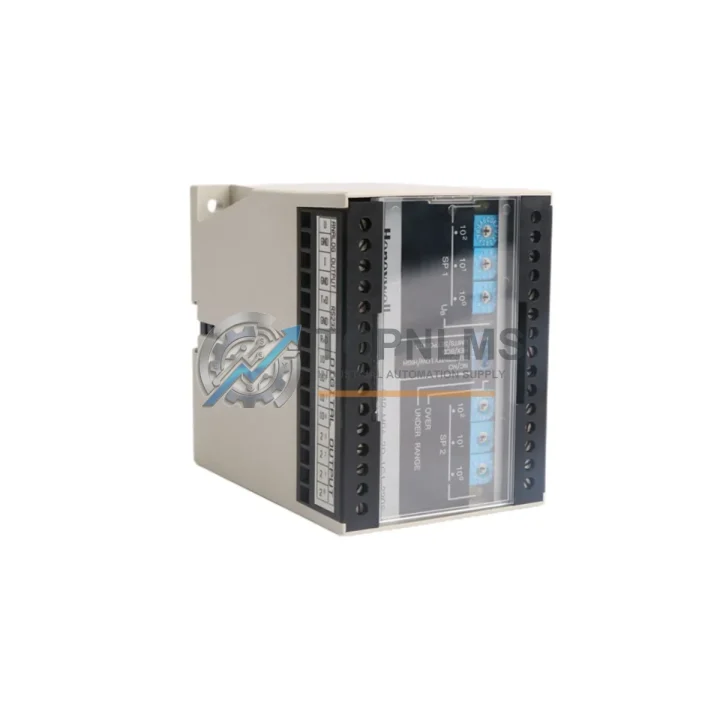

Product Overview

Honeywell 942-M0A-2D-1G1-220S Replacement for 942 Series: Smooth Transition & Legacy System Compatibility

When your control system relies on the Honeywell 942-M0A-2D-1G1-220S inductive proximity sensor and the original unit reaches end-of-life or becomes difficult to source, a poorly managed replacement can trigger unplanned downtime, rewiring costs, and PLC program revisions. TOPNLMS supplies verified 942-M0A-2D-1G1-220S units — and compatible 942 Series alternatives — specifically to support engineers executing a smooth, low-disruption retrofit of legacy detection circuits into modern control architectures.

The 942-M0A-2D-1G1-220S is a cylindrical inductive proximity sensor from Honeywell’s 942 Series, rated for 220 V AC supply, with a standard M30 barrel form factor, normally-open (NO) output, and a 2 mm sensing distance. It is widely deployed in discrete manufacturing lines, conveyor position detection, metal part presence sensing, and safety interlock circuits governed by Siemens S7-300/S7-400 PLCs, Allen-Bradley SLC 500 or MicroLogix controllers, and legacy Schneider Modicon TSX Micro or Premium series. Replacing this sensor without disrupting the surrounding I/O wiring, PLC input card assignments, or HMI alarm tags requires careful attention to electrical compatibility and mechanical fit.

From a wiring compatibility standpoint, the 942-M0A-2D-1G1-220S uses a 2-wire AC configuration. Replacement units must match this wiring topology to avoid rewiring the terminal block or replacing the associated I/O module. In many legacy panels, the sensor feeds directly into a Siemens SM 321 digital input module or an Allen-Bradley 1746-IA16 AC input card — both of which are designed for 2-wire AC proximity sensors. Substituting a 3-wire DC PNP or NPN sensor without an interposing relay or signal converter would require I/O card replacement and PLC program changes, significantly increasing retrofit scope.

For installations where the control cabinet is being modernized alongside the sensor replacement — for example, migrating from a Siemens S7-300 rack to a S7-1500 with TM-series I/O or to an ET 200SP distributed I/O station — the 942-M0A-2D-1G1-220S can be replaced with a DC-powered equivalent (such as a Honeywell 942-M0A-2D-1G1-024S or a compatible third-party M30 inductive sensor with PNP output), provided the new I/O module, terminal block wiring, and PLC input configuration are updated in parallel. TOPNLMS can advise on compatible DC-rated alternatives when a full I/O migration is planned.

Regarding physical and installation space, the M30 barrel thread and standard mounting nut dimensions of the 942-M0A-2D-1G1-220S are consistent across the 942 Series, meaning a direct replacement drops into the existing bracket, conduit fitting, or sensor mount without machining or bracket fabrication. Cable entry direction and connector type (typically flying lead or M12 connector depending on variant) should be confirmed against the existing cable routing before ordering.

In terms of communication and system architecture, inductive proximity sensors in this class output a discrete on/off signal and do not participate in fieldbus communication (PROFIBUS, PROFINET, EtherNet/IP, or Modbus). However, the I/O module they connect to — whether a Siemens ET 200M IM 153-1, a Rockwell 1734 POINT I/O adapter, or a Schneider Advantys STB island — does. Ensuring the replacement sensor’s electrical characteristics (leakage current, voltage drop, switching frequency) remain within the I/O module’s input specifications is critical to avoid false triggering or input card damage.

For facilities running predictive maintenance programs or transitioning to IIoT-enabled architectures, the sensor replacement project is also an opportunity to evaluate whether the detection point should be upgraded to a smart sensor with IO-Link capability, enabling real-time diagnostics, teach-in configuration, and integration with IO-Link masters such as the Siemens SIMATIC ET 200SP CM 4xIO-Link or the Balluff BNI IOL-302 gateway. This upgrade path preserves the existing mechanical mounting while adding process visibility.

Compatibility Comparison Table

Seamless Upgrade Solutions

A 942-M0A-2D-1G1-220S replacement rarely occurs in isolation. In most retrofit projects, engineers simultaneously address adjacent components to ensure system-wide reliability. When replacing this sensor in a Siemens S7-300 environment, the associated Siemens SM 321 digital input module (6ES7 321-1BH02-0AA0) is often inspected or replaced in parallel, particularly if the module has accumulated years of AC switching cycles. For panels migrating to distributed I/O, a Siemens ET 200SP BaseUnit BU15-P16+A0+2D and corresponding digital input module provide a compact, rail-mounted replacement for the legacy centralized rack.

In Allen-Bradley environments, the 1746-IA16 AC input module for SLC 500 racks is the natural pairing for a 2-wire AC proximity sensor. If the SLC 500 rack itself is being retired, a Rockwell 1734-IB8 POINT I/O DC input module combined with a 24 V DC proximity sensor replacement offers a forward-compatible migration path to CompactLogix or ControlLogix architectures.

Power supply integrity is equally important: the 220 V AC supply rail feeding the sensor circuit should be verified against the panel’s control transformer or isolation transformer rating. In older cabinets, a dedicated Phoenix Contact TRIO-PS/1AC/24DC/10 power supply is often added when DC sensors are introduced to the same panel, ensuring clean, regulated 24 V DC for the new sensor and I/O infrastructure.

For wiring termination, Phoenix Contact or Weidmüller terminal blocks rated for the appropriate voltage and current are recommended when re-terminating sensor cables during replacement. If the sensor cable runs through conduit to a remote junction box, an M12 field-wireable connector simplifies reconnection without cutting and re-splicing the cable. Signal isolation — via a Pepperl+Fuchs KFD2-SR2-Ex1.W signal isolator or equivalent — may be required in hazardous area installations or where long cable runs introduce noise into the AC input circuit.

Retrofit Guidance FAQ

Q: Can I replace the 942-M0A-2D-1G1-220S without changing the PLC program?
A: Yes, if you use a direct 2-wire AC NO replacement with the same sensing distance and supply voltage. The PLC input address, rung logic, and HMI tag mappings remain unchanged.

Q: What if I want to switch to a 24 V DC sensor?
A: You will need to replace the AC input module with a DC input module (e.g., Siemens SM 321 DC or AB 1746-IB16), add a 24 V DC power supply, and verify PLC input configuration. The mechanical mounting remains the same.

Q: Is the M30 thread pitch compatible across 942 Series variants?
A: Yes. All M30 variants in the 942 Series share the same thread pitch and standard mounting nut, ensuring direct mechanical interchangeability.

Q: How do I handle the leakage current of a 2-wire AC sensor with a modern PLC input card?
A: Verify the input card’s minimum load current specification. If the card requires a minimum load higher than the sensor’s leakage current, add a parallel bleeder resistor (typically 10–22 kΩ, rated for the supply voltage) across the input terminals.

Q: Can this sensor be used in IO-Link systems?
A: The 942-M0A-2D-1G1-220S is a standard discrete AC sensor and does not support IO-Link. For IO-Link capability, consider upgrading to a compatible M30 IO-Link inductive sensor and an IO-Link master module.

Q: What is the typical lead time and shipping origin?
A: Units ship from Xiamen, China. Standard international express delivery (DHL/FedEx) typically reaches most destinations within 3–7 business days. Contact us for urgent requirements.

Warranty Assurance

Every Honeywell 942-M0A-2D-1G1-220S unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including supply voltage tolerance testing, output switching confirmation, and physical inspection for connector integrity and barrel thread condition. Units that do not meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides replacement-first support: a replacement unit is dispatched promptly upon confirmation of the defect, minimizing production downtime. Detailed failure documentation is requested to support root-cause analysis and to improve future procurement recommendations. Our after-sales team responds to warranty inquiries within one business day.

For procurement teams managing critical spare inventories, TOPNLMS offers batch inspection reports and certificate of conformance documentation upon request, supporting your incoming quality control process. Volume orders for MRO stocking programs are accommodated with flexible lead times and consolidated shipping to reduce per-unit logistics cost.
