Zeiss 348224-9113-1302 Original Industrial Spare VAC Compatible

Product Overview

Zeiss 348224-9113-1302 Original Industrial Spare VAC Compatible: System Stability & Maintenance Value

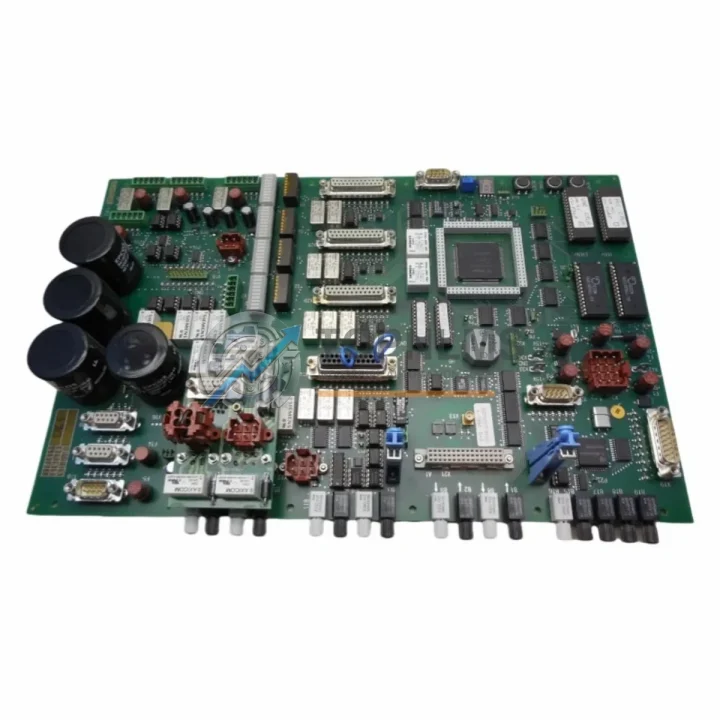

The Zeiss 348224-9113-1302 is an original vacuum control board (PCB assembly) engineered for precision optical and semiconductor manufacturing systems. In high-throughput production environments — lithography lines, wafer inspection stations, and precision metrology cells — the vacuum control subsystem is a critical enabler of uptime. A failed or degraded VAC control board can halt an entire production cell within seconds, making this component a top-priority spare in any serious maintenance inventory.

Sourced directly from verified supply channels and fully tested prior to dispatch, the 348224-9113-1302 is a drop-in replacement that preserves the original electrical interface, firmware compatibility, and mechanical footprint of the factory-installed unit. No re-engineering, no adapter brackets, no firmware patching — just a clean, validated swap that restores system operation to OEM specification.

Critical Technical Specs

Preventive Maintenance Strategy

Vacuum control boards do not fail in isolation. In a precision optical or semiconductor system, the VAC control board interfaces with multiple subsystems — and a maintenance event triggered by a board failure is the ideal opportunity to audit the health of adjacent components before returning the system to production.

When replacing the Zeiss 348224-9113-1302, maintenance engineers should simultaneously inspect the vacuum pump drive module and its associated power supply board, as voltage ripple from an aging PSU is a common upstream cause of VAC board degradation. The pressure sensor signal conditioning module should be checked for drift — a miscalibrated sensor can cause the control board to cycle incorrectly, accelerating wear. Inspect the I/O interface board that bridges the VAC controller to the main system PLC or motion controller; connector oxidation at this junction is a frequent source of intermittent faults that are misdiagnosed as board failures.

The 24 VDC backplane power distribution board feeding the control cabinet should be load-tested during the downtime window. Similarly, the relay output module responsible for vacuum valve actuation commands deserves inspection — relay contacts in high-cycle vacuum applications typically show measurable wear after 18–24 months of continuous operation. If the system uses a fieldbus communication card (PROFIBUS, EtherCAT, or similar) to report vacuum status to the supervisory SCADA or DCS layer, verify its firmware version and connector integrity while the cabinet is open.

For facilities running extended maintenance intervals, consider stocking the analog input module used for vacuum level monitoring alongside this board — both components share the same maintenance cycle in most VAC-series installations. The terminal block assembly and cable harness connecting the VAC board to the valve manifold should be visually inspected for insulation cracking, particularly in systems operating above 40°C ambient. Finally, if the system includes a local HMI panel for vacuum status display, verify touchscreen calibration and backlight hours — HMI panels in semiconductor environments often reach end-of-life before the control boards they monitor.

Proactive stocking of these related components — rather than reactive emergency procurement — is the single most effective strategy for reducing mean time to repair (MTTR) in precision optical manufacturing environments.

Strategic Replacement Solutions

The 348224-9113-1302 addresses one of the most persistent challenges in legacy precision equipment maintenance: sourcing a verified OEM board for a system that may be 10–20 years into its service life. Zeiss optical and semiconductor platforms are built for longevity, and many facilities continue operating VAC-series systems well beyond the manufacturer’s standard support window. In this context, a genuine original spare — not a third-party clone or a refurbished unit of unknown history — is the only responsible choice for a system where vacuum integrity directly affects product yield.

Replacing a failed board with a verified Zeiss 348224-9113-1302 eliminates the risk of firmware incompatibility, signal timing mismatches, and connector non-conformance that are common failure modes with non-OEM alternatives. It also preserves the traceability chain required for ISO-certified production environments and semiconductor fab audits. For facilities managing multiple Zeiss platforms, establishing a minimum stock level of one board per system — or one shared spare per two to three systems of the same series — is a cost-effective approach that eliminates the 4–12 week lead time risk associated with emergency procurement.

From a total cost of ownership perspective, the cost of a single unplanned production stoppage in a semiconductor or precision optics environment typically exceeds the cost of maintaining a full spare board inventory by an order of magnitude. The 348224-9113-1302 is not simply a repair component — it is a risk management asset.

Support FAQ

Q1: Is this an original Zeiss board or a compatible replacement?
This is an original Zeiss 348224-9113-1302 PCB assembly sourced through verified industrial supply channels. It is not a third-party clone or reverse-engineered compatible. Every unit is tested for power-on functionality and signal integrity before shipment.

Q2: What does the 12-month warranty cover?
The warranty covers manufacturing defects and functional failure under normal operating conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the OEM-specified environmental parameters. Warranty claims are processed with return shipping coordination provided by TOPNLMS.

Q3: How do I verify compatibility with my specific Zeiss system before ordering?
Provide your system model number, cabinet revision, and existing board part number to our technical team at [email protected]. We will cross-reference against our compatibility database and confirm fitment before you commit to the purchase. For systems with multiple board revisions, we will identify the correct hardware revision of the 348224-9113-1302 for your application.

Q4: What is the recommended inventory strategy for facilities running multiple Zeiss VAC-series systems?
For facilities with two or more Zeiss VAC-series platforms, we recommend maintaining a minimum of one 348224-9113-1302 in on-site stock at all times. For critical single-system installations where downtime cost is high, a dedicated on-site spare is strongly advised. Bulk procurement of 3–5 units qualifies for volume pricing — contact us directly for a quotation.
