Motorola MVME133A-20 Replacement/Upgrade for MVME100

Product Overview

Motorola MVME133A-20 Replacement/Upgrade for MVME100: Seamless Transition & Legacy System Compatibility

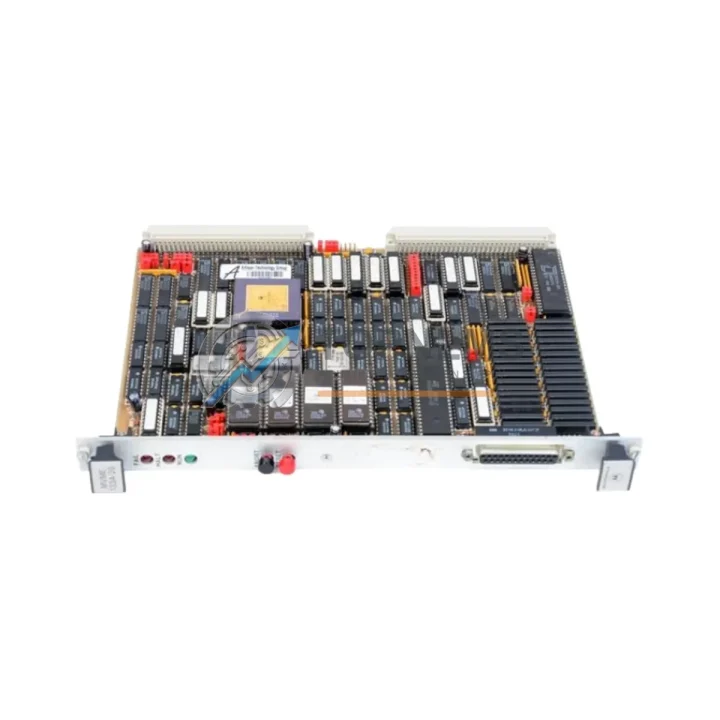

The Motorola MVME133A-20 is a VMEbus Single-Board Computer (SBC) built around the Motorola MC68030 processor running at 20 MHz, designed for demanding industrial control environments. As legacy automation systems age and original equipment manufacturers discontinue support, facilities running MVME100 Series-based control architectures face increasing pressure to source reliable replacement units or plan structured migration paths. TOPNLMS stocks verified MVME133A-20 boards to support both direct drop-in replacement and phased system modernization — minimizing downtime and protecting your existing infrastructure investment.

Whether your plant is operating a VMEbus-based distributed control system (DCS), a legacy programmable logic controller (PLC) rack, or a custom industrial computer chassis, the MVME133A-20 integrates directly into existing MVME100 Series backplanes without requiring chassis modification. The board retains the standard VMEbus J1/J2 connector pinout, ensuring backward compatibility with existing wiring harnesses, I/O transition modules, and front-panel cabling. Engineers performing a like-for-like swap can typically restore system operation without rewriting application code or reconfiguring communication parameters.

For sites migrating from earlier MVME100 Series variants — such as the MVME133A or MVME133-1 — the MVME133A-20 offers an uprated clock speed while maintaining software and bus compatibility. Existing ladder logic, C-language application firmware, and EPROM-based boot images developed for the MC68030 architecture transfer without modification. This is particularly valuable in process industries where revalidation of control software carries significant regulatory and operational cost.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful MVME133A-20 migration rarely involves the SBC alone. In most MVME100 Series control cabinets, the board operates alongside a suite of companion modules that must be verified or replaced concurrently. The MVME712M transition module is the most common front-panel I/O interface board used with this SBC family, providing the RS-232 and RS-422 breakout connectors that link the processor to field devices and HMI terminals. If the existing MVME712M shows signs of connector wear or corrosion, replacing it alongside the MVME133A-20 eliminates a common source of intermittent communication faults.

Power integrity is equally critical. Many aging VMEbus racks rely on MVME190 or third-party VME power supplies that may no longer deliver stable +5 V rails under load. Before commissioning the replacement SBC, verify rail voltages under operational load using a calibrated meter. An unstable power supply is frequently misdiagnosed as a processor board fault.

For systems that communicate with upstream SCADA or DCS platforms via serial or Ethernet, the MVME172 or MVME177 communication processor boards installed in adjacent VME slots should be inspected for firmware currency. Mismatched firmware revisions between the SBC and communication co-processors can cause protocol handshake failures that are difficult to diagnose without oscilloscope-level analysis. Similarly, if the control system interfaces with remote I/O racks via MVME200 Series I/O modules, confirm that the I/O module firmware is compatible with the 20 MHz clock domain of the MVME133A-20.

Sites planning a longer-term migration from VMEbus to modern PLC or PAC architectures may use the MVME133A-20 as a bridge unit while parallel-testing a replacement controller. In such scenarios, signal isolators and terminal block conversion modules are commonly used to split field wiring between the legacy VMEbus rack and the new control platform, allowing live comparison of outputs before cutover. Programming cables compatible with the MC68030 debug port (BDM interface) are also recommended for any site that needs to capture or modify EPROM firmware during the transition.

Retrofit Guidance FAQ

Q: Can I swap the MVME133A-20 directly into my existing VMEbus rack without rewiring?
A: Yes. The MVME133A-20 uses the standard 6U VMEbus J1/J2 connector and is mechanically and electrically compatible with all standard VMEbus backplanes. No wiring changes are required for a like-for-like replacement of MVME133A or MVME133-1 boards.

Q: Will my existing VxWorks or OS-9 firmware run on the MVME133A-20?
A: In most cases, yes. The MC68030 architecture is preserved, and existing EPROM or Flash images compiled for the MVME133A family are generally compatible. The 20 MHz clock may expose timing-sensitive code paths — functional testing under load is recommended before returning the system to production.

Q: What serial communication protocols does the MVME133A-20 support?
A: The board supports RS-232 and RS-422 via the MVME712M transition module. Baud rates, parity, and stop-bit settings are preserved from the original board configuration and do not require reconfiguration after replacement.

Q: How do I handle the physical installation in a crowded control cabinet?
A: The MVME133A-20 occupies a single 6U VME slot. If the adjacent slot is occupied by a communication or I/O module, ensure adequate airflow clearance. The board draws power from the VMEbus backplane — no additional power cabling is required.

Q: What if my system uses a non-standard VMEbus backplane or proprietary chassis?
A: Contact TOPNLMS with your chassis model and backplane part number before ordering. Our technical team can advise on compatibility and, where necessary, recommend adapter solutions or alternative SBC models.

Warranty Assurance

Every MVME133A-20 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each board undergoes functional verification including power-on self-test (POST) confirmation, bus interface continuity check, and visual inspection for component damage or corrosion. Units that do not pass inspection are not shipped.

In the event of a DOA (dead-on-arrival) or in-warranty failure, TOPNLMS provides a replacement unit or full refund — your choice. Our standard response time for warranty claims is within 2 business days of fault confirmation. Replacement units are dispatched from our Xiamen warehouse with expedited shipping to minimize your system downtime.

We maintain stock of MVME100 Series boards and companion modules to support rapid fulfillment. Most orders ship within 1–3 business days. For urgent plant-down situations, contact us directly for same-day dispatch options.

TOPNLMS serves industrial buyers across manufacturing, energy, petrochemical, water treatment, and transportation sectors. Our procurement team understands the criticality of control system uptime and provides documentation support — including test reports, certificates of conformance, and packing lists — to satisfy your internal purchasing and quality requirements.
