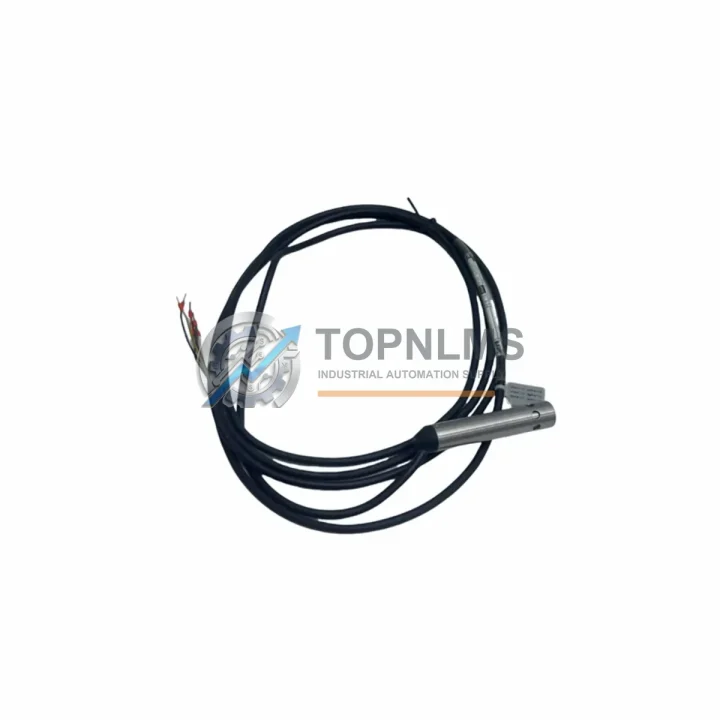

YOKOGAWA SC4AJ-S-AD-09 Ruggedized Conductivity Sensor

Product Overview

YOKOGAWA SC4AJ-S-AD-09 Ruggedized Conductivity Sensor: Industrial Resilience for Harsh Environments

The YOKOGAWA SC4AJ-S-AD-09 is a 4-wire submersion conductivity sensor engineered for continuous, reliable measurement in the most demanding industrial process environments. As part of YOKOGAWA’s proven SC4A Series, this sensor delivers stable conductivity readings under conditions of high temperature, high humidity, chemical exposure, mechanical vibration, and electromagnetic interference — making it a trusted choice for process engineers and automation specialists worldwide.

Designed to integrate seamlessly with YOKOGAWA’s SC202G and SC450G series conductivity transmitters, the SC4AJ-S-AD-09 provides accurate 4-wire measurement that minimizes lead resistance errors, ensuring data integrity even across long cable runs in large industrial facilities. Its submersion-type installation design is optimized for direct immersion in process tanks, pipelines, and open channels, eliminating the need for flow cells in many applications and reducing installation complexity.

For automation engineers managing PLC-based or DCS-based control architectures, the SC4AJ-S-AD-09 feeds clean, calibrated analog signals into systems such as YOKOGAWA CENTUM VP DCS, Siemens S7-300/S7-400 PLCs, or Allen-Bradley ControlLogix platforms. Its signal output is compatible with standard 4–20 mA analog input modules, allowing straightforward integration into existing I/O racks without additional signal conditioning hardware.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated process control loop, the SC4AJ-S-AD-09 does not operate in isolation. It is typically paired with the YOKOGAWA SC202G or SC450G conductivity transmitter, which converts the sensor’s raw cell constant signal into a calibrated 4–20 mA output suitable for DCS or PLC analog input cards. For installations requiring HART communication, the SC450G transmitter supports HART 7 protocol, enabling remote diagnostics and configuration without interrupting the process loop.

In control cabinet environments, the sensor signal is routed through Phoenix Contact or Weidmüller terminal blocks mounted on DIN rails, ensuring clean, vibration-resistant terminations. Surge protection modules — such as the YOKOGAWA YS1700 series or equivalent DIN-rail surge arresters — are recommended upstream of the analog input module to protect against transient overvoltages common in outdoor or substation-adjacent installations.

For power supply integrity, a 24 VDC industrial DIN-rail power supply (e.g., YOKOGAWA-compatible or Phoenix Contact QUINT series) provides stable loop power to both the transmitter and the sensor circuit. In redundant architectures, a UPS module or power conditioner ensures uninterrupted measurement during grid fluctuations — critical in continuous chemical dosing or effluent monitoring applications.

On the communication side, the SC450G transmitter’s HART output can be connected to a HART multiplexer or directly to a YOKOGAWA CENTUM VP field bus interface card, enabling asset management through YOKOGAWA’s PRM (Plant Resource Manager) software. For Profibus PA or Foundation Fieldbus installations, YOKOGAWA’s EXA SC202 Fieldbus variant provides native digital communication without analog conversion losses.

Safety relay modules and YOKOGAWA ProSafe-RS safety controllers can be configured to trigger alarms or shutdown sequences when conductivity readings exceed process safety limits — for example, detecting coolant contamination in a nuclear auxiliary system or brine breakthrough in a demineralization plant. This integration with safety instrumented systems (SIS) underscores the SC4AJ-S-AD-09’s role not just as a measurement device, but as a frontline component in process safety architecture.

Application in Critical Infrastructure

The SC4AJ-S-AD-09 is deployed across a wide range of critical infrastructure sectors where measurement reliability directly impacts operational safety and regulatory compliance.

Water & Wastewater Treatment: Municipal water treatment plants rely on continuous conductivity monitoring to verify desalination efficiency, detect ion exchange resin exhaustion, and confirm RO membrane performance. The SC4AJ-S-AD-09’s IP68 submersion rating allows direct installation in open aeration tanks and clarifiers without protective housings, reducing maintenance access requirements.

Power Generation: In thermal and nuclear power plants, boiler feedwater and cooling water conductivity must be maintained within strict limits to prevent corrosion and scaling. The SC4AJ-S-AD-09 provides the continuous, drift-resistant measurement required for compliance with ASME and VGB water chemistry guidelines. Its shielded 4-wire cable design suppresses interference from high-voltage switchgear and variable frequency drives (VFDs) operating in adjacent panels.

Chemical & Petrochemical Processing: Acid concentration monitoring, caustic soda strength verification, and brine circuit management in chlor-alkali plants all demand sensors capable of withstanding aggressive media. The SC4AJ-S-AD-09’s PEEK electrode body and stainless steel construction provide chemical resistance across a broad pH range, while its 9-meter cable length accommodates deep tank installations without junction boxes.

Mining & Metallurgy: Heap leach operations, tailings pond monitoring, and hydrometallurgical process circuits generate highly conductive, abrasive slurries. The SC4AJ-S-AD-09’s robust electrode geometry and sealed construction resist fouling and mechanical wear, maintaining calibration stability over extended service intervals between planned maintenance shutdowns.

Food & Beverage / Pharmaceutical: CIP (Clean-in-Place) cycle verification, rinse water conductivity monitoring, and WFI (Water for Injection) quality control are standard applications. The sensor’s smooth surface finish and chemical-resistant materials support hygienic installation requirements, and its fast response time ensures accurate detection of phase transitions between product and cleaning solution.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the SC4AJ-S-AD-09?
The 12-month warranty covers all manufacturing defects, component failures, and functional deviations from YOKOGAWA’s published specifications under normal operating conditions. Each unit shipped from TOPNLMS has been individually inspected and function-tested prior to dispatch. Warranty claims are processed with replacement or repair at no additional cost, with technical support available throughout the claim process.

Q2: How is each unit tested before shipment?
Every SC4AJ-S-AD-09 unit undergoes pre-shipment inspection including visual examination, continuity testing of all 4-wire conductors, insulation resistance verification, and cell constant confirmation against YOKOGAWA factory calibration data. Units that do not meet specification are quarantined and not dispatched. A test report is available upon request for quality-critical procurement processes.

Q3: Is the SC4AJ-S-AD-09 compatible with third-party transmitters and PLC analog input modules?
The SC4AJ-S-AD-09 is natively designed for YOKOGAWA SC202G and SC450G transmitters. When used with third-party transmitters, compatibility depends on the transmitter’s support for 4-wire conductivity sensors and the ability to configure the cell constant (K = 1.0 cm⁻¹ for the AD electrode type). Most major-brand conductivity transmitters from Endress+Hauser, Mettler Toledo, and ABB support this configuration. For PLC direct connection, a dedicated conductivity transmitter is required as an intermediary — the sensor does not output a standard 4–20 mA signal independently.

Q4: Can long-term supply and spare parts availability be guaranteed?
TOPNLMS maintains stock of SC4A Series sensors and compatible YOKOGAWA transmitter accessories to support ongoing maintenance and emergency replacement requirements. For facilities with planned maintenance schedules, we recommend holding at least one spare SC4AJ-S-AD-09 per critical measurement point. We can provide volume pricing for spare parts kits and support multi-year supply agreements for large infrastructure operators. Contact our technical sales team to discuss your specific inventory and lead-time requirements.
